2. Digital bodies#

Output Assignment
A 3D model scanning naked body
A 3D model open source
References
Download file
Link to download of my model : 3D mannequin model

My interests :#

References#

Arte Digital Geek 3/10#

SENCE SCAN 3D#

Tools Observation
This 3D scan is very usefull to scan object with a scale of a body or a furniture piece. During fabricademy program I use it and try to use is to scan my cristal (10cm) scan a croco leather (<1mm) an ear (5cm) and each time is doesn’t work.
Images A Image B

observations#

The scan of my body is dificult to have a good angle and a good result with the 3D axe. I use is with out tripod. The stability is a difficulty to take care of. My body was good but, for a mannequin in order to work with, I choose a different technic to make my measurement. I used Make Human.

The scan needs :#

A tutorial : Sence3Dscanner

To scan my naked embody#

If it’s a body for a couture tool, the experience of the real scan is very usefull. Make clothes one by one is a nice philosophy. The time of the scanning is a little unconfortable, because we are not use to see our own body, nacked. A cultural practice. I think this exercice is good to now better who we are.

With the 3D export I have this texture picture of myself like littles skin slides

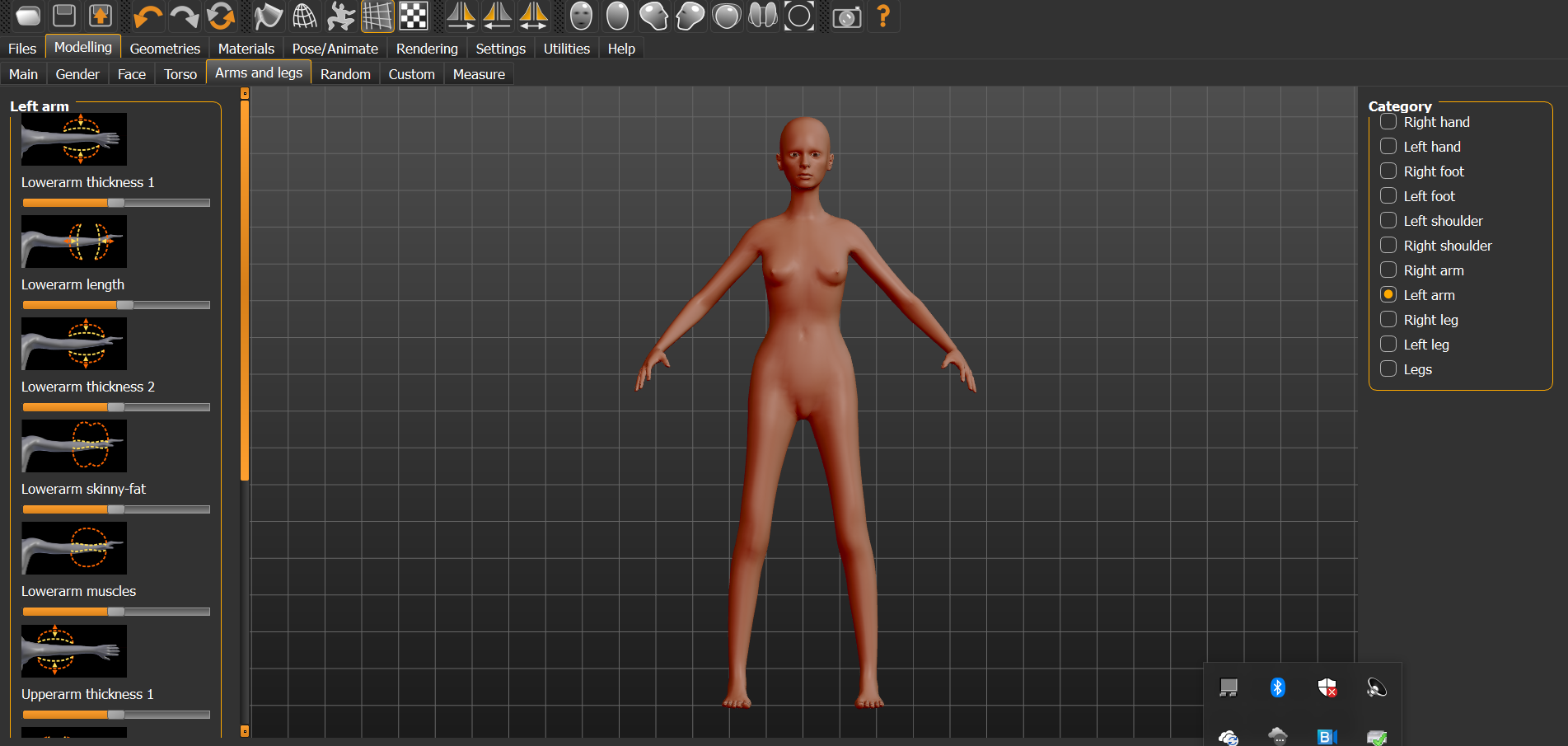

Make Human : size of my own body#

With this software you can change the size of the body. And try different attitudeor position of the body .

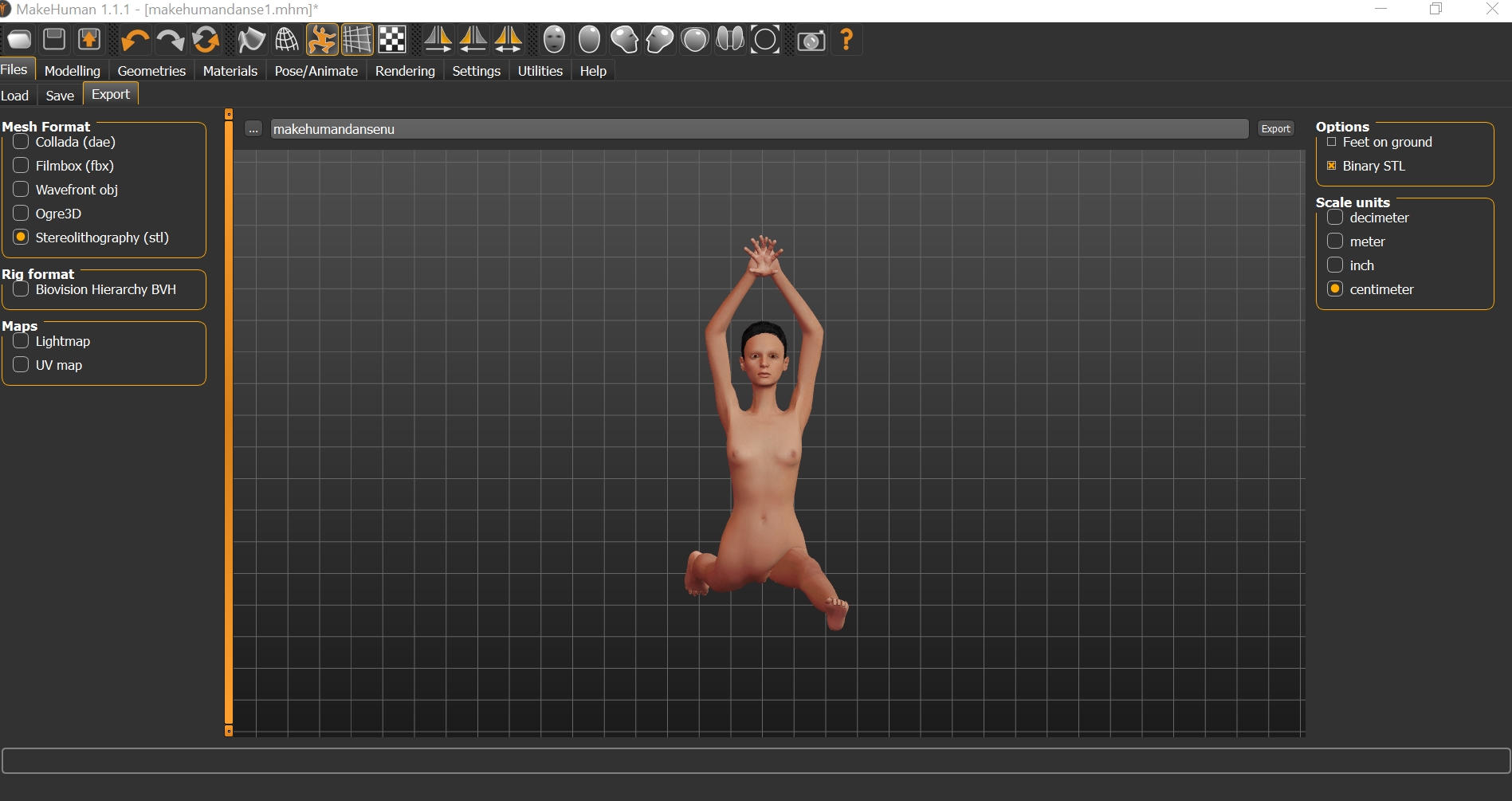

Make Human Make Human Observations
this software have many good parameters and to make quickly one mannequin is very usefull.

Slicer#

Slicer by Autodesk : Download

Silcer Process
I use this body to understood quickly how it work.
Total of the slices PROTOCOL TEST Change the settings PROTOCOL TEST

Netfab change the body 3D model#

I use Netfab

I open my body from Make Human in order to change the 3D model for the lasercut machine protocol. I don’t need arms, then I need to delete the arms of the 3D model.

The netfab software The netfab software

After this operation I have opened again the 3D model in Slicer and work on my final file.

Slicer#

3D model back 3D model front
I download my 3D model and slicer change the 3D slice by slice.
Total of cardboard 3 panels Export as possible as .dxf / .pdf / .eps depends of the machine, I choose .pdf because corel draw work with

LaserCut#

Epilog Fusion Notches process
My set-up, I use blocks because the carboards wasn’t flat. size of the cardboard pannel to make the good choice for the notches
Notches Observation result
Testing the tolerance of the assembly 3 tests for 6.0 / 5.9 / 5.8 thickness * 6.0 notch was too easy 5.8 notch was too strong 5.9 was the good one for my cardboard with 6mm of thickness
Settings Epilog Fusion 50 30 50

Assembly#

Face A Face B

Add a 3D skin#

Expectations Slicer different option
I have tried to make a little skin, this needed more expertize

Second test for my nacked skin 3D model#

Library device A 3d scan like a book
Put a scanner between Foucault Surveiller et Punir is like, put an eye like a security camera device at your own home.
Device 1 Device 2 Device 3 Device 4
Light 1 Light 2 Light 3

I have not a good light but the scan works. Result with the production latter (work in progress).

I have my own body in 3D model#

Yes, my scanning process work, very well. But I’m not sure that I would like have a little me in 3D data model on the network. Let me think about it.

Test Crash

Fashion in 2060 :#

I go to the H&M shop at Chatelet les halles infact it’s like a device production shop, the 3D scan on a kukka harm replace the dressing room, it’s a private luxury salon. I can go there, scan my body. At the showroom, I see different kind of fabric, I shoose my pants template (or whatever) choose my fabric, and go to the checkout.

Pruposes : 1. Economic issue 2. Eco-friendly methodology 3. Funny Fabrication

IF in the real world we do that :#

If I have that device at home, I won’t go to the H&M shop ever and I will make my own garment.

3D Models#

Link of my model : 3D mannequin model

Sketchfab Sketchfab

camilleopenbust fabricademy by cmrjp on Sketchfab
