9. Wearables

RESEARCH

Imogen Heap MiMU Gloves. Software gloves for creating mapping between your movements and sound.

MiMU Gloves

Artificial Intelligence and its False Lies by Mika Satomi

Mika Satomi

Anna Cain mood ring

Mood Ring

Hug shirt by cutecircuit

Hug Shirt

Yoga pants by Wearable X

Yoga Pants

Others

  • social body lab at ocad u
  • Gerard Visuals
  • Sound & Electromagnetic
  • Cameron Hughes

The Knitted Radio

Yoel Fink

MiMU

References & Inspiration

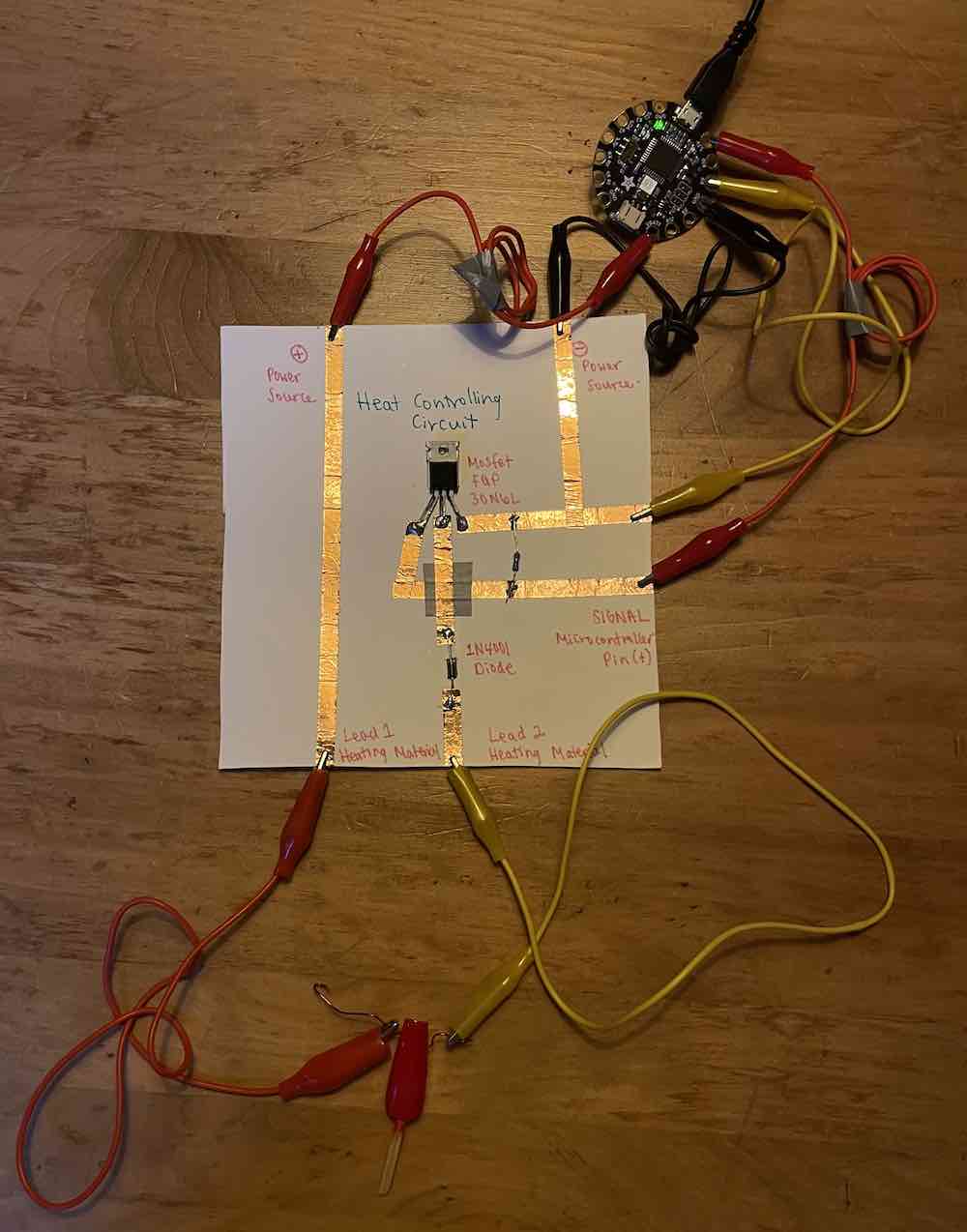

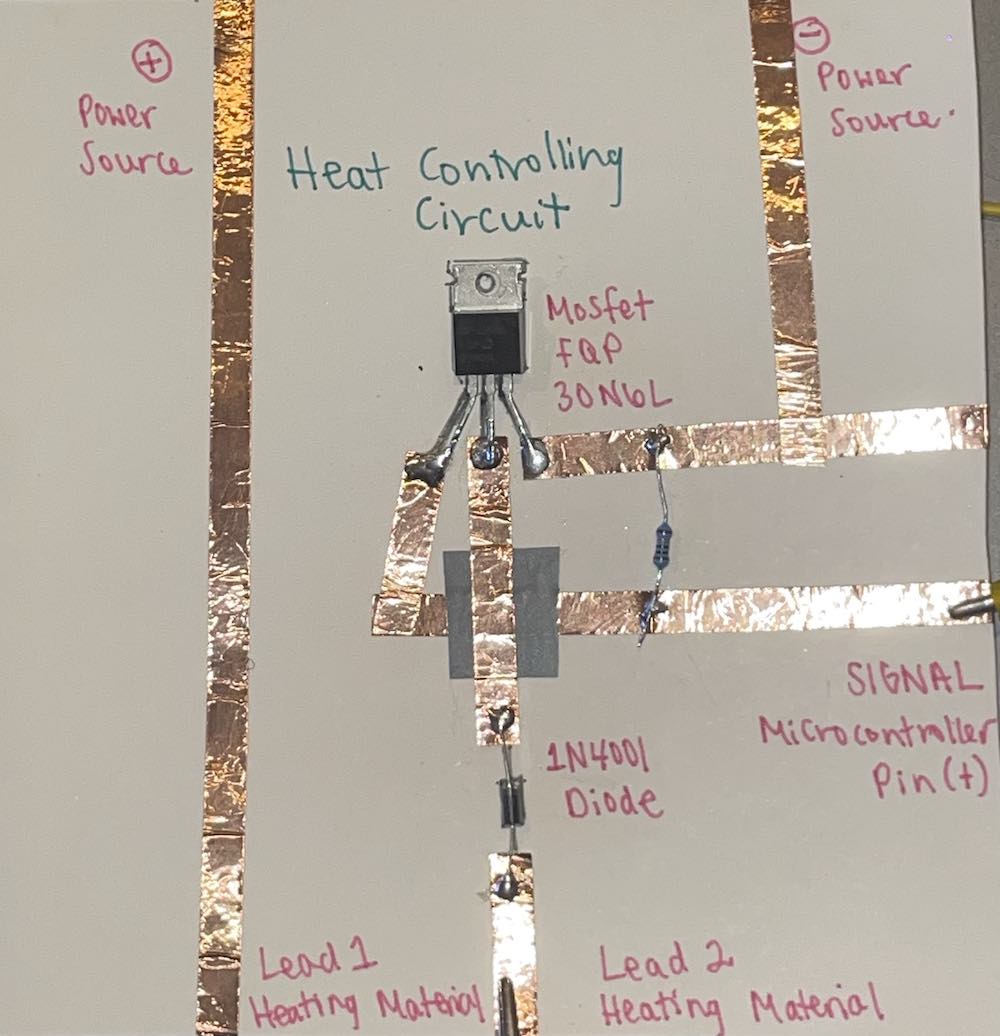

  • Thermal Coffee Coasters & Ceramic/Clay Coasters

Squiggly Coaster

Wire Coaster Inspo

Candle Holders Inspo

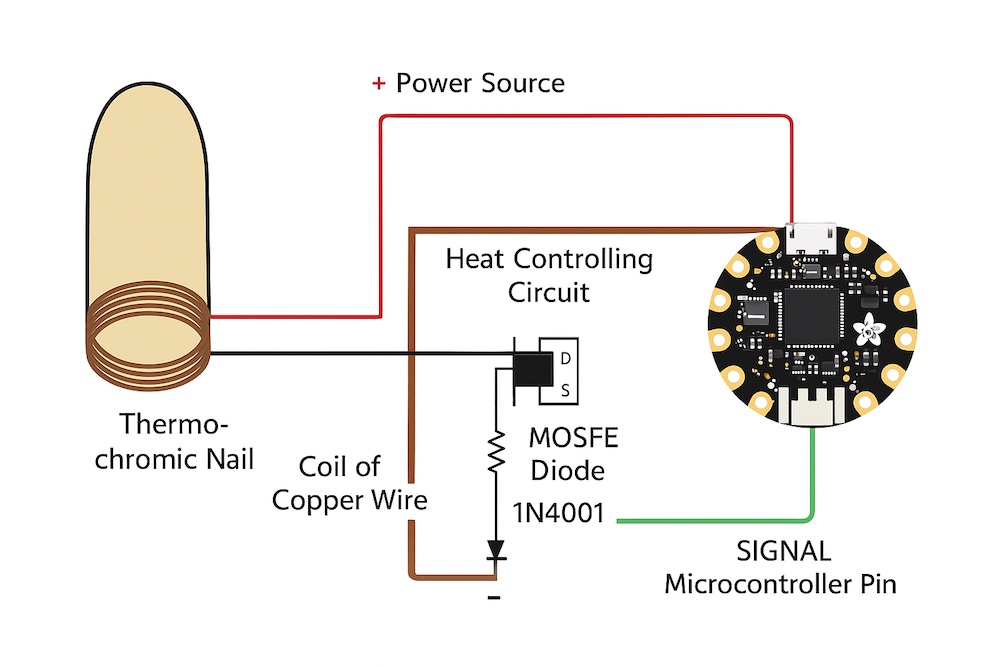

To have a fully conceptualized idea I was thinking of *skip to the beat of my heart* or *heart throbber* other classic quips which were easy eough to actually create a full concept and device around. I wanted to have a skipping rope and buzz when it hit the floor or a sensor area on the body, I thought about making a beat box on the shirt, singing fake nails that would play when you touch, Thermochromic Ink candle holders, heat up coffee coaster, or Thermochromic Ink nails that would change colour when you set them on fire, or connecting another aspect that would sing or buzz when your heart rate got too high/fast. Too complicated. full circle back to velostat stepper, so we beep while we walk while our heart blinks, I'm hoping maybe if you go long enough, there will be some type of pattern we'll see.

HEART THROBBER

PROCESS & WORKFLOW

Tools

- Arduino IDE
- AD8232 Heart Monitor
- ECG Pads
- Neopixel Strip of 18 leds
- Wires
- Breadboard
- Wire Covers & Heat Gun
- Wire Clamps
- Felt & Other Fabrics
- Solder Station
- Scissors
- Wire Cutters
- Tape
- Copper Wire


SKETCHES

Heart Shirt Sketch Stick Person

STEP BY STEP PROCESS

AD Device

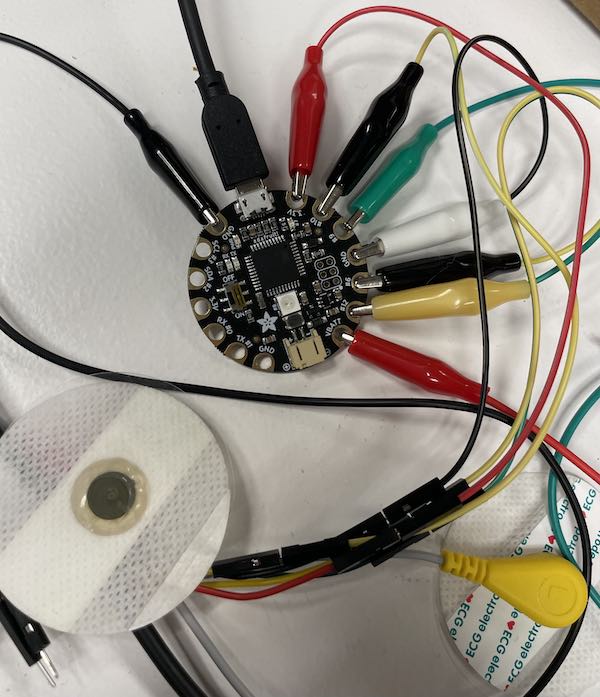

  1. Connect AD8232 Heart Sensor to Arduino pins according to the diagram.

Device Legends

  1. Breadboard the circuit including power, ground, signal, and LO+/- detection

AD8232 Device Heart Breadboard

  1. Test raw values using Serial Monitor to ensure heartbeat signal is detected

Heart Anatomy H Rate

  1. Attach Neopixels to Pin D9, test strip with basic blink sketch

Heart Rate Arduino Pin Heart Rate Pin

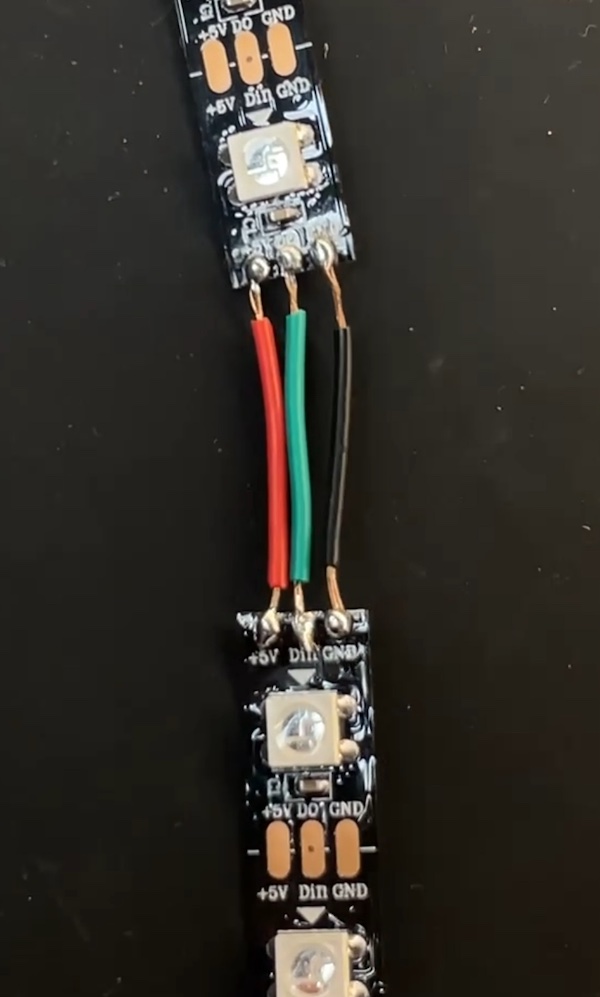

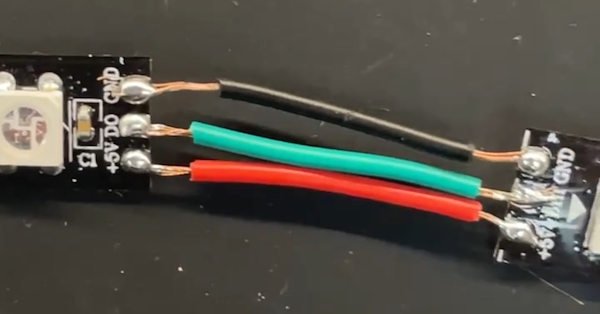

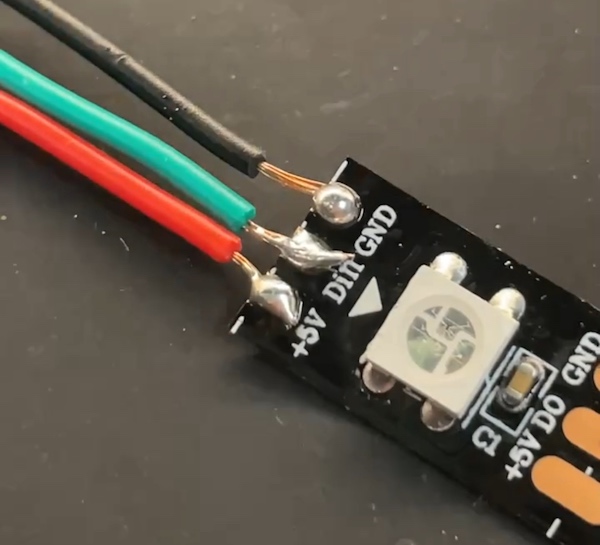

  1. Solder headers and finalize components for wearable mounting

Solder Solder Solder

  1. Upload final code, verify signal triggers both light and sound

Heart Rate Code

  1. Encase circuit in textile housing, create soft wearable pocket for board

Cutting Strip Cover

  1. Decorate with felt layers and embroidery to make it wearable + visually soft

Mock Heart 2 Heart Ring Open Heart Ruffles

SET UP & CIRCUIT

Component Arduino Pin Function
Neopixel D9 LED signal
Buzzer D8 Audio Feedback
AD8232 Output A10 Analog heart signal
AD8232 Leads Off+ D12 Pad detection
AD8232 Leads Off- D6 Pad detection

Code

#include <Adafruit_NeoPixel.h>
#define PIN 9
#define NUMPIXELS 18
#define BUZZER_PIN 3
Adafruit_NeoPixel pixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);
int reading;

void setup() {
  Serial.begin(9600);
  pinMode(12, INPUT);  // Setup for leads off detection LO +
  pinMode(6, INPUT);   // Setup for leads off detection LO -
  pinMode(18, INPUT);
  pixel.begin();
  pixel.setBrightness(50);
  pinMode(BUZZER_PIN, OUTPUT);
}

void loop() {
  if ((digitalRead(6) == 1) || (digitalRead(12) == 1)) {
    Serial.println('!');
  } else {
    // send the value of analog input 0:
    reading = analogRead(10);
    Serial.println(reading);
  tone(BUZZER_PIN, reading);
  }
  for (int i = 0; i < NUMPIXELS; i++) {
    pixel.setPixelColor(i, pixel.Color(reading / 4, 0, 0));
  }
 {
}
  pixel.show();
  delay(20);
}

RESULTS

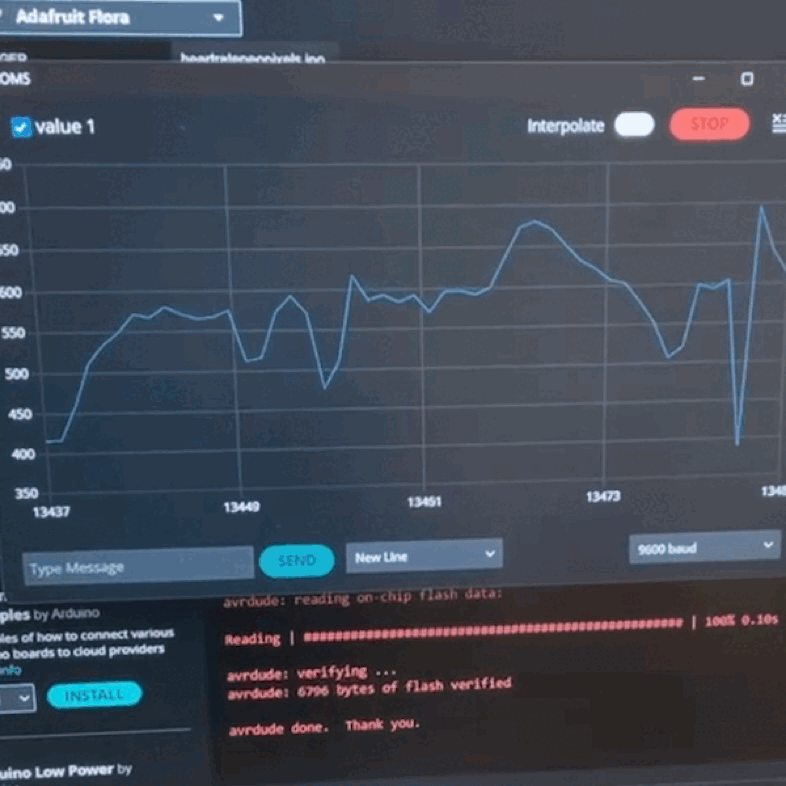

RESTING HEARTRATE

Gif Regular

VS.

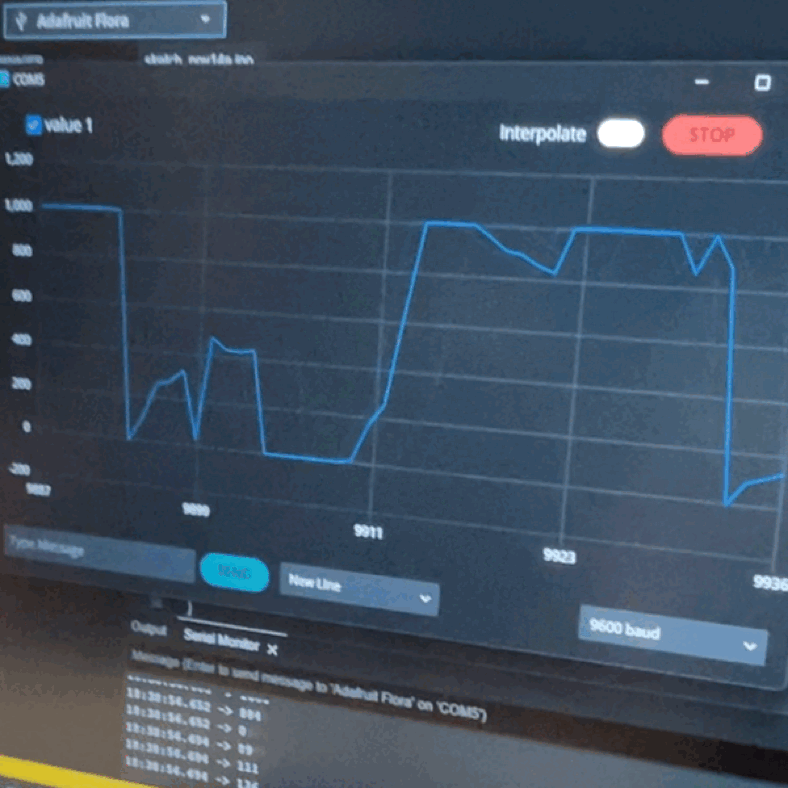

FREQUENCY REGULATED HEARTRATE

Gif Dolphin

  • LEDs pulse in sync with heartbeat
  • Buzzer emits tone with pulse strength
  • Output varies when nervous system is activated (Dolphin device)

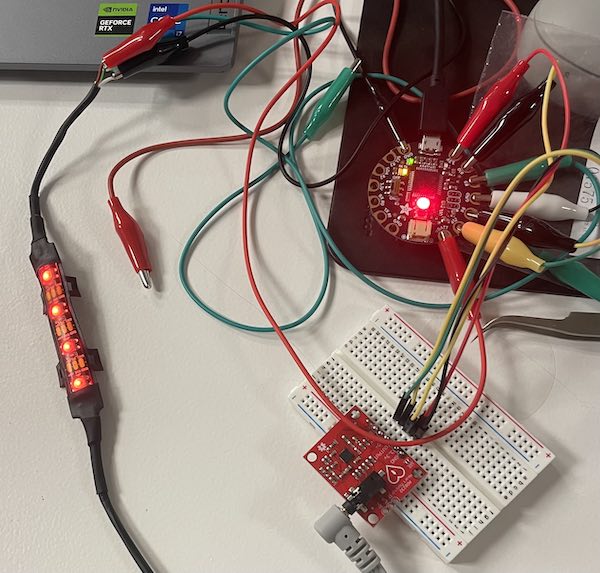

Shirt Lit Pin Gif Result

Final Thoughts / Learning
This was my first time translating a biosignal to both visual and auditory output in a wearable form. It made me reflect on emotional expression through tech, and how we might use clothing not just to cover our bodies, but to mirror and regulate what’s inside.

HEART STOMPER

RESEARCH & REFERENCES

Inspired by: ankle monitors, wearable therapy for neurodivergent users, and silent alarm devices. Ana Delvey’s ankle monitor also gave me the courage to make wearable tech fun + taboo.

Ana Delvey Shoe Sketch

PROCESS & WORKFLOW

Tools

  • Arduino IDE
  • Wires
  • Breadboard
  • Buzzer
  • Velostat
  • Copper Duct Tape
  • 100K Resistors
  • Wire Covers & Heat Gun
  • Wire Clamps
  • Felt & Other Fabrics
  • Solder Station
  • Scissors
  • Wire Cutters

STEP BY STEP PROCESS

Cut velostat into sole shape, layer with copper tape for contact

Stomp Pads Solder Resistor Replace Copper Tape

Create analog pressure pad using velostat + tape sandwich

Open Stomper Redo Shoe

Wire pad to breadboard, one lead to 5V, one to A0 with 100K pulldown

Stomp Arduino Pin Set Up Buzzer - Remove Breadboard Solder Smoke Side Buzzer Removed Bend

Connect buzzer to D8, use digitalWrite() to toggle based on input

Buzz Insole

Test by stepping on pad in shoe, verify values in Serial Monitor

Wired Shoe Yellow Wire to Sole

Sew into sock or slipper sole, hide wires with felt or elastic

SET UP & CIRCUIT

Component Pin Function
Velostat A0 Analog pressure
Buzzer D8 Sound Output

Code

#include <Adafruit_NeoPixel.h>
#define PIN 9
#define NUMPIXELS 18
#define BUZZER_PIN 3

Adafruit_NeoPixel pixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);
int reading;

void setup() {
  Serial.begin(9600);
  pinMode(12, INPUT);  // Setup for leads off detection LO +
  pinMode(6, INPUT);   // Setup for leads off detection LO -
  pinMode(18, INPUT);
  pixel.begin();
  pixel.setBrightness(50);
  pinMode(BUZZER_PIN, OUTPUT);
}

void loop() {
  if ((digitalRead(6) == 1) || (digitalRead(12) == 1)) {
    Serial.println('!');
  } else {
    // send the value of analog input 0:
    reading = analogRead(10);
    Serial.println(reading);
  tone(BUZZER_PIN, reading);
  }
  for (int i = 0; i < NUMPIXELS; i++) {
    pixel.setPixelColor(i, pixel.Color(reading / 4, 0, 0));
  }
 {
}
  pixel.show();
  delay(20);
}

Shoe Code

Results

  • Buzzer triggers each time heel steps down
  • Output is tactile and reactive
  • Successfully mapped a basic actuator swatch
Final Thoughts
This swatch taught me how to trigger outputs using analog pressure input. I plan to upgrade this swatch with vibration motors instead of buzzers, and make it fully soft-circuit ready. It’s a great add-on for emotional state feedback in wearables. This was a fun second actuator — low-tech, fast to build, and super functional. I’d love to expand it into a silent alarm tool for overstimulation or install a vibration disc for quiet haptic output.
