10. Textile Scaffold

"no matter what a woman looks like, if she's confident, she's sexy" - Paris Hilton

Research

  • HEMP
  • LINEN & RESIN
  • GABRIELLA VIESPEZI
  • COTTON BOWL BY STUDIO KRUPKA-STIEGHAN
  • FIBER DRESS - ALI YERDEL + ANASTASIA PISTOFIDOU
  • Ernesto neto living cum socks hanging from ceiling
  • Crystals
  • Fellipe F Crystal Shoes - Beaded shoes
  • Crystal Genesis (could do similar for eczema relief??)

FYI

  • Crystals bind most easily to overlapping threads
  • Alum: grows within 24 hr
  • Salt/sugar: takes approx like 7 days
  • Alternatives: borax, potassium ferricynide
  • Resources: CRYSTALVERSE for chemistry, safety tips, and tutorials/inspo

References & Inspiration

Leather/Textile Scaffolding

  • Ottolinger Silicone Bags

chain bag hand chains otto 1 otto 2

Crystallization

crystal dress Crystal bag inso Crystal drip Ruffles bag Ruffles 2

Michaela Stark

M Stark 1 M Stark 2


Tools

  • Slides
  • Sources
  • Pots, jars, spoons, tongs, whisk
  • CNC milling machine
  • Sewing machine & hand needle
  • Judy mannequin
  • Air-dry clay
  • Bioplastic cooking setup
  • Rhino 3D (CAD)

Process & Workflow

CRYSTALLIZATION

  1. Patterning

    • Sketched initial pattern ideas and drafted full-size templates. paper patterns pattern 1 pattern 2
  2. Material Testing

    • Used yarn/knit strips to test surface crystal growth. strings recipe
  3. Bag Construction

    • Hand-sewed crystal bags due to no machine access.
    • Returned home for winter break and used my sewing machine to finalize seams. hand sew tools redbags sew sew 2
  4. Crystallization Setup

    • Crystal growth process delayed due to missing borax delivery.
    • Will proceed using alum or borax as soon as restocked.

LEATHER MOLDING

  1. CAD Attempt (Rhino)

    • Spent 25+ hours building a 3D mold in Rhino for CNC.
    • No instructor support to resolve surfacing issues. human1 Side Mold Rhino Mold Pre Cut Cut Out Mold Rhino Mold
  2. Plan B: Physical Mold

    • Wrapped hot, softened leather around Judy.
    • Leather boiled in water + baking soda for flexibility.
    • Clamped in place to dry and hold form. learn cnc cnc

Result: Soft shaping held but lacked structure to form stable bag.

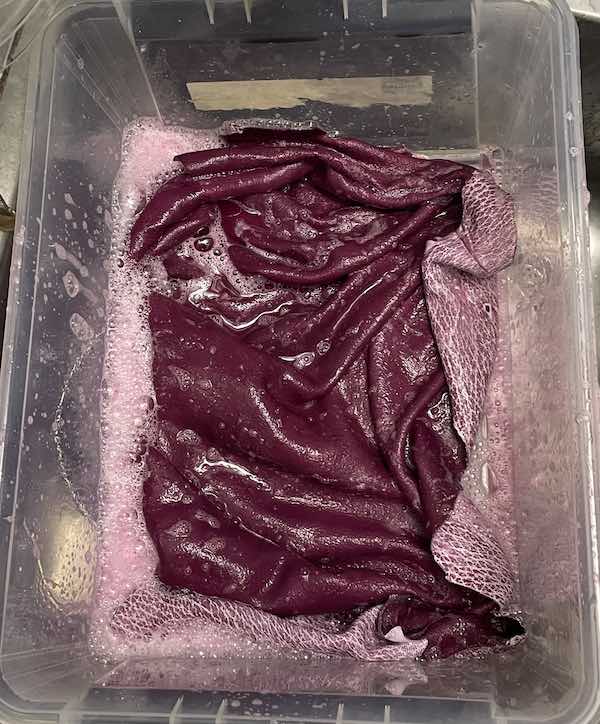

Soak Leather Cook Leather wrap judy

  1. Clay Mold Attempt

    • Wrapped Judy in plastic.
    • Built air-dry clay mold over her chest.
    • Mold cracked as it dried—unsuccessful. seran wrap judy drying judy scissor wrinkly tits sponging add clay broken judy

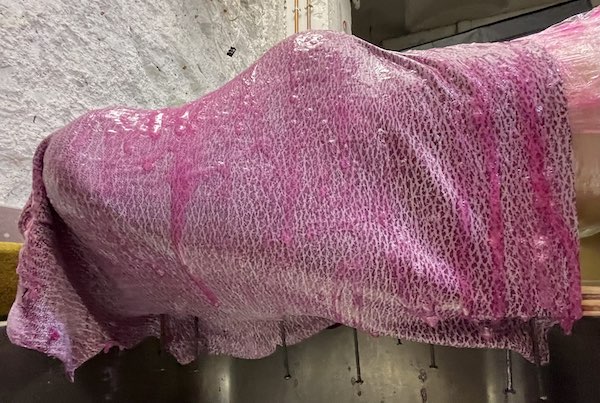

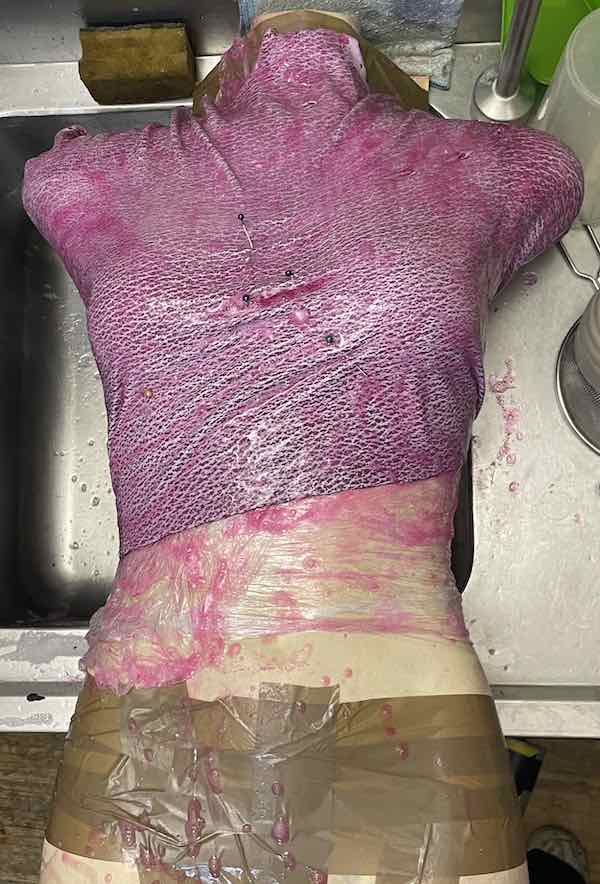

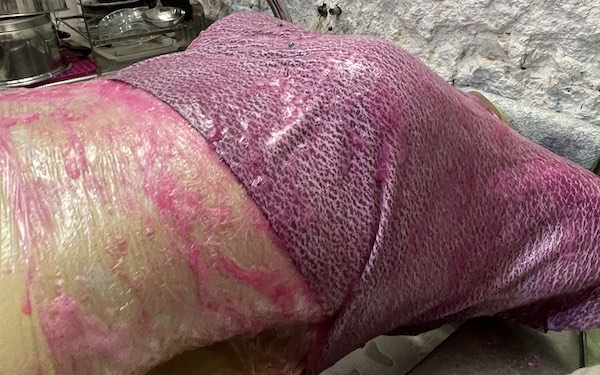

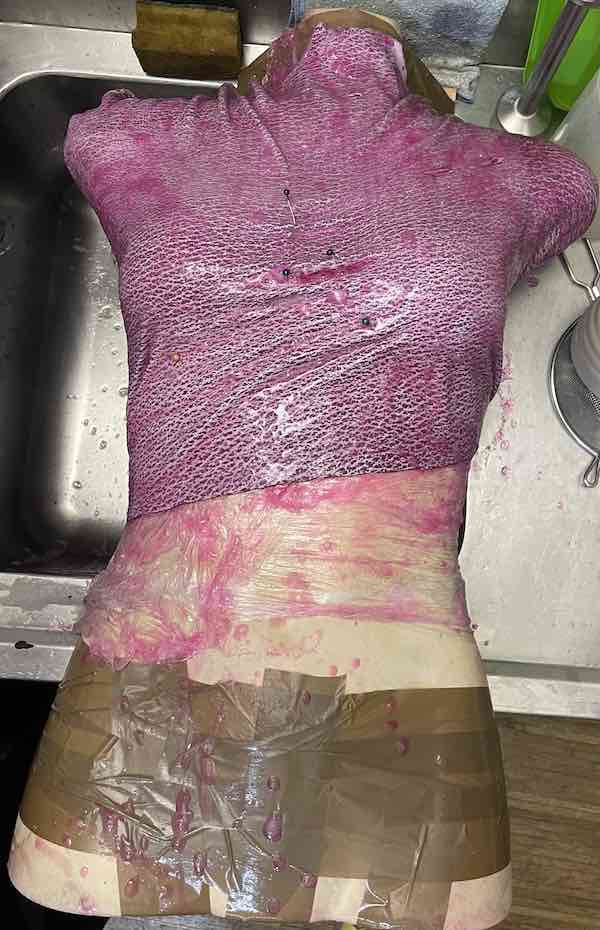

  2. Bioplastic Gelatin Coating

    • Rewashed leather.

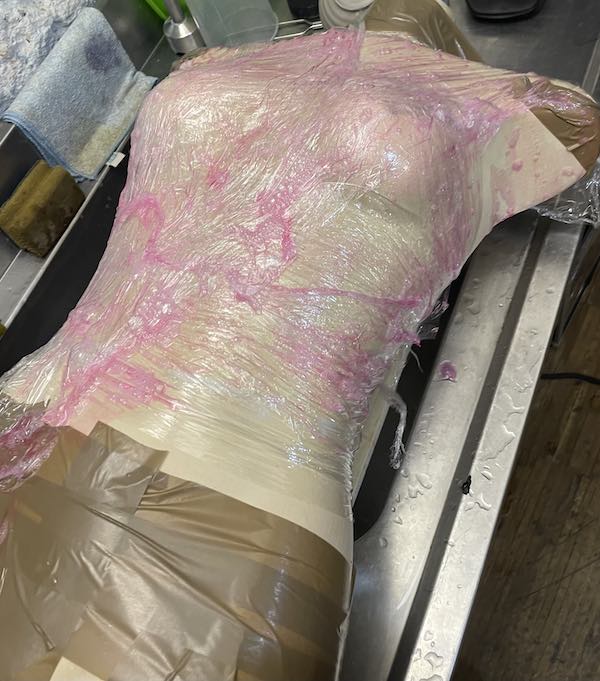

    • Seran-wrapped Judy again.
    • Applied gelatin-based bio-coating while shaping onto form.

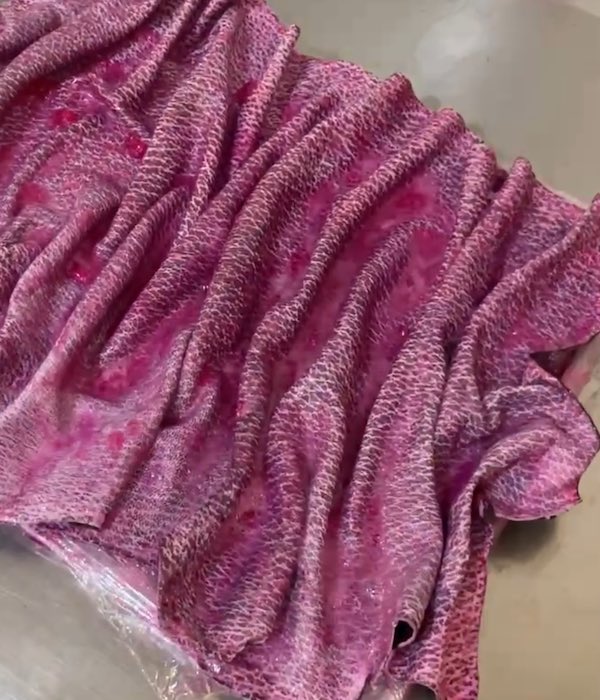

Wrap judy Judy Judy Judy Judy Drying Swatch Drying Swatch 1

Ingredients & Recipes

Prepare this recipe by collecting the ingredients necessary, to be found in the list below:

=== "ingredients"

    * 30 gr gelatin
    * 10 ml glycerol
    * 240 ml water
    * Dash of Dishsoap

=== "tools"

    * Saucepan
    * Stirring Tool
    * Measuring Cups
    * Heat source

=== "instructions"

    * combine ingredients in saucepan
    * heaty gently, stirring continuously until fully dissolved
    * brush or pour onto the leather swatch while warm
    * shape over the form of Judy the let air dry 24-48 hours

Documenting and comparing experiments

TEST SERIE BIO-PLASTIC
Material pic Material name polymer plastifier filler emulsifier
{ width=100 } bio-rainbow biokelp powder 12 gr glycerol 100 ml rainbow dust 1 kg green soap a drop
{ width=100 } bio-rainbow biokelp powder 12 gr glycerol 100 ml rainbow dust 1 kg green soap a drop
{ width=100 } bio-rainbow biokelp powder 12 gr glycerol 100 ml rainbow dust 1 kg green soap a drop
{ width=100 } bio-rainbow biokelp powder 12 gr glycerol 100 ml rainbow dust 1 kg green soap a drop

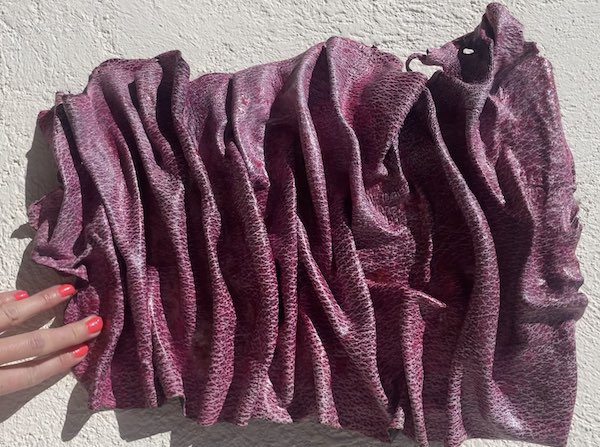

RESULTS

- All samples varied based on drying time and layer thickness.
- The final sample showed best durability and even finish.
- Still refining consistency to avoid cracking and ensure adhesion.

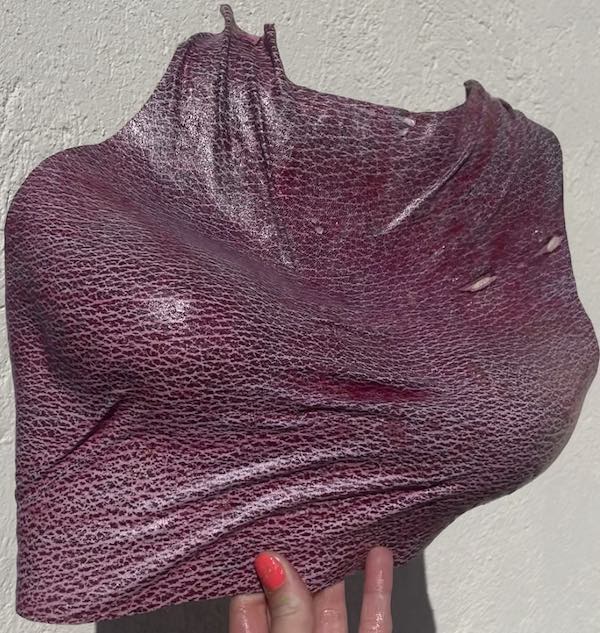

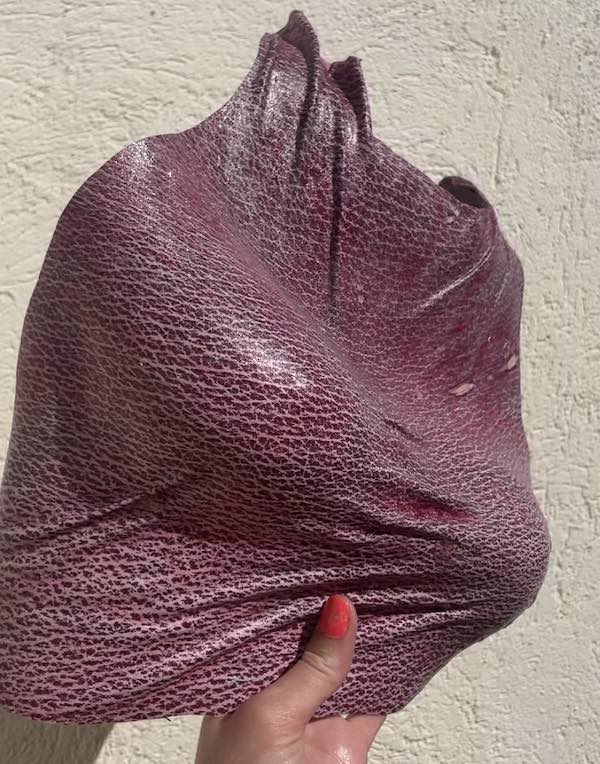

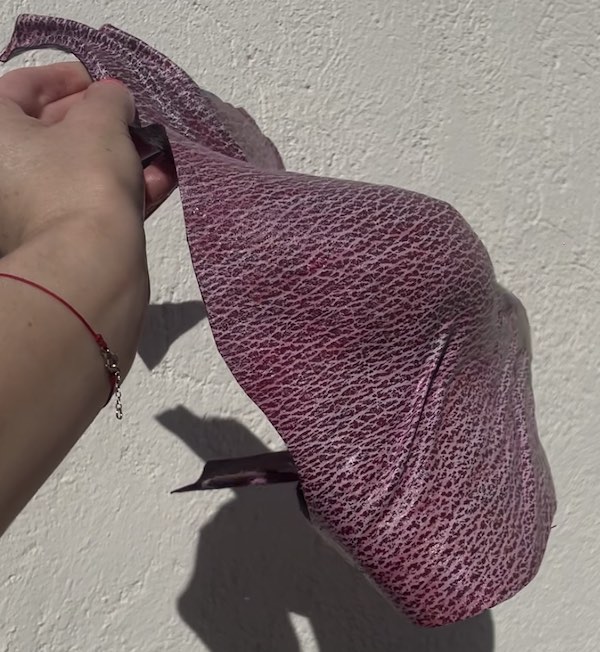

Rack Rack Rack Swatch

This assignment taught me to embrace hands-on prototyping when digital tools fail me. I’m proud of my sculptural exploration of form and material. Next, I hope to grow my own borax crystals to finalize the vision of crystal bags and pants.

---
