2. Digital bodies

Research & Ideation

I began my project by exploring compelling examples from global artists, aiming to draw inspiration from diverse perspectives. Through in-depth research, I identified several standout works that highlighted unique techniques and possibilities. These discoveries broadened my creative horizons and introduced new directions for my project.

alt text

NERI OXMAN

Oxman’s work is grounded in the concept of “material ecology,” where design and fabrication processes draw inspiration from natural systems and biological forms. By integrating biological materials with advanced fabrication techniques, she seeks to create designs that are symbiotic with their environment. In "Mushtari," for instance, Oxman incorporates living microorganisms that interact with the wearer, envisioning a future where wearable technology not only serves functional purposes but also engages in a biological dialogue with the human body. This approach challenges traditional boundaries in design, merging human physiology with synthetic structures to create adaptive, life-supporting garments.

alt text

Goals for this week 2

1 Research on artists or projects working with the human body.

2 Document the process of acquiring a 3D model using a 3D scanner and software.

3 Repaire and manipulate a 3D mesh and slice it.

4 Create ready-to-cut files for laser cutting.

5 Document workflow, fab lab processes, booking system, machine demos, tools, and safety rules.

6 Built and assemble my mannequin and document it.

Digital bodies

WHAT IS DIGITAL BODIES?

"Digital bodies" refers to virtual representations or models of human forms in digital spaces. These representations can range from simple avatars to hyper-realistic 3D models used in virtual reality (VR), augmented reality (AR), video games, online identities, and even digital health monitoring. Digital bodies are created using various technologies like 3D scanning, motion capture, and computer graphics, enabling them to replicate or simulate human appearance, movement, and even behavior.

In some fields, digital bodies serve as functional tools—for example, in medical simulations, ergonomic studies, and fashion design, where accurate human models are essential. In virtual environments and social media, digital bodies allow people to express their identities and explore different aspects of themselves. The concept highlights the intersection of technology, identity, and embodiment, as digital bodies increasingly influence how we understand presence and self-expression in virtual spaces.

alt text

WHAT IS 3D SCANNING?

3D scanning is a technology that captures the shape and dimensions of a physical object to create a digital 3D model. It works by collecting data points on an object's surface through various methods, like laser scanning, structured light, or photogrammetry, which then builds a highly accurate digital representation.

The resulting model includes precise measurements, surface textures, and details that can be used for a wide range of applications, from digital archiving and reverse engineering to animation, virtual reality, and 3D printing. 3D scanning makes it possible to study, analyze, and reproduce objects, creating an important bridge between the physical and digital worlds.

alt text

Process and workflow

step 1: Makehuman

This week I started with the input for a 3D model, using applications like Makehuman where you create bodies

alt text

step 2: Refinement in Blender

Using Blender’s sculpting tools, I meticulously refined the model by smoothing imperfections, adjusting proportions, and enhancing surface textures to achieve a polished result. To ensure compatibility with slicing software, I optimized the mesh by reducing the polygon count while preserving the shape’s integrity, minimizing file size without compromising quality. Finally, I exported the refined model in STL format, making it ready for fabrication using tools like Fusion 360 and Slicer for Fusion 360. file

alt text alt text alt textalt text

alt textalt text

step 3: Slicer for Fusion 360

As I refined the design further, I focused on enhancing both its visual and structural qualities. By experimenting with different slicing orientations and adjusting parameters like slice overlap and inter-slice spacing, I aimed to achieve a balance between aesthetic appeal and functional integrity. To optimize the model’s assembly, I also considered the placement of connector tabs, ensuring they aligned seamlessly across each slice layer for a sturdy, cohesive structure. This iterative process allowed me to fine-tune the details, transforming the sliced sections into a unified form that fully realized my design intentions. alt text

step 4: 2D Adjustments in CorelDRAW

After preparing the sliced model, I exported the design as a DXF file and imported it into CorelDRAW for 2D adjustments. In CorelDRAW, I fine-tuned the design, ensuring all elements were properly aligned and optimized for laser cutting. I carefully checked the file’s dimensions, made sure there were no overlapping lines, and adjusted the stroke settings for compatibility with the laser cutter. Once everything was refined, I saved the final version as a PDF, which preserved the vector paths and ensured the file would be ready for precise and accurate cutting.

alt text

step 5 : Laser Cutting Setup and Process

I used a Full Spectrum laser cutter for this project, adjusting the settings to 20% speed, 100% power, and 100% current, with one pass per cut. The project involved cutting a total of five boards. The first three boards took around 1 hour and 15 minutes each to cut, while the fourth board required 58 minutes. The final board was completed in just 35 minutes. These cutting times varied depending on the complexity and size of each board, but overall, the process was efficient and yielded precise results.

alt text

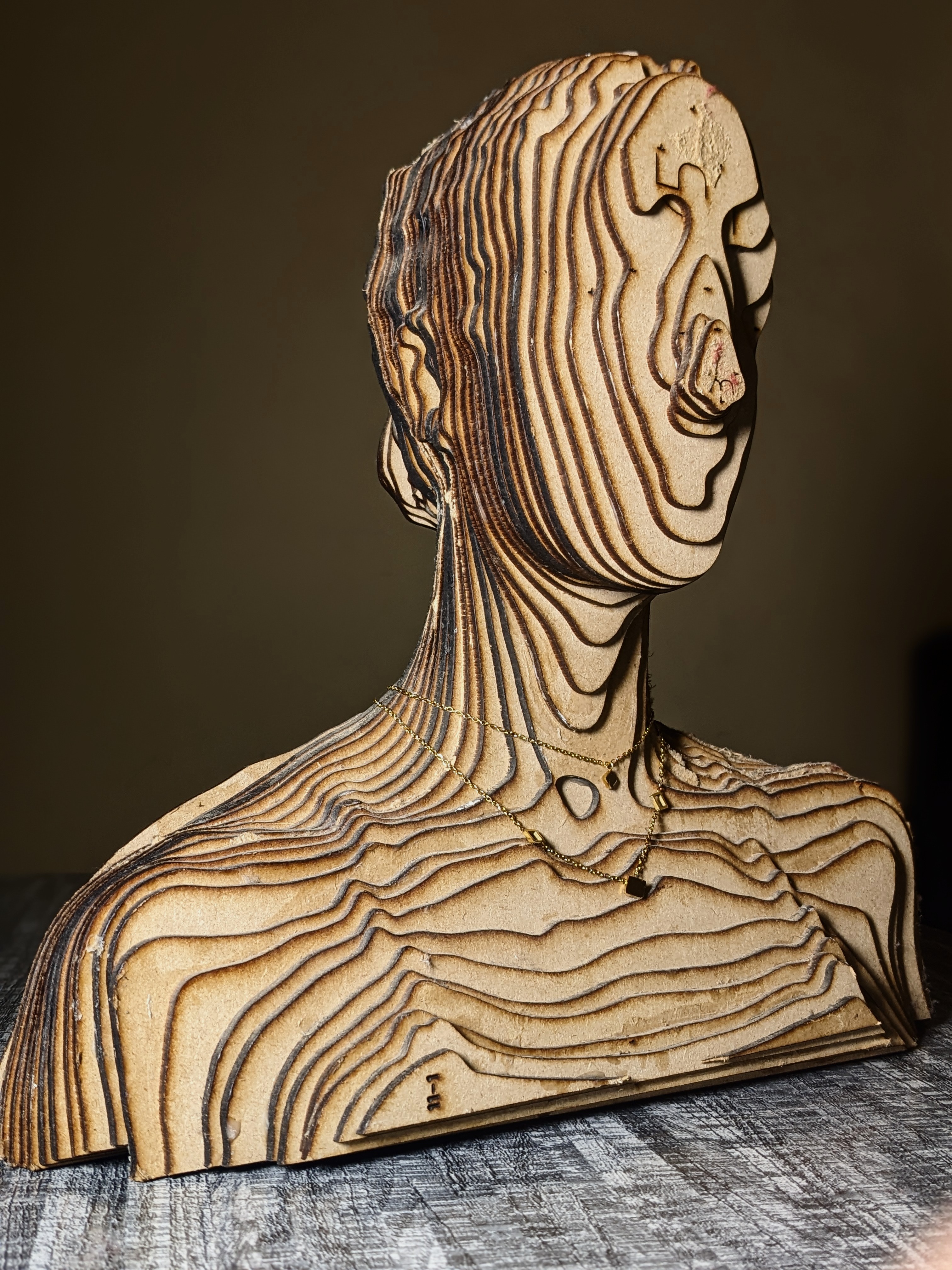

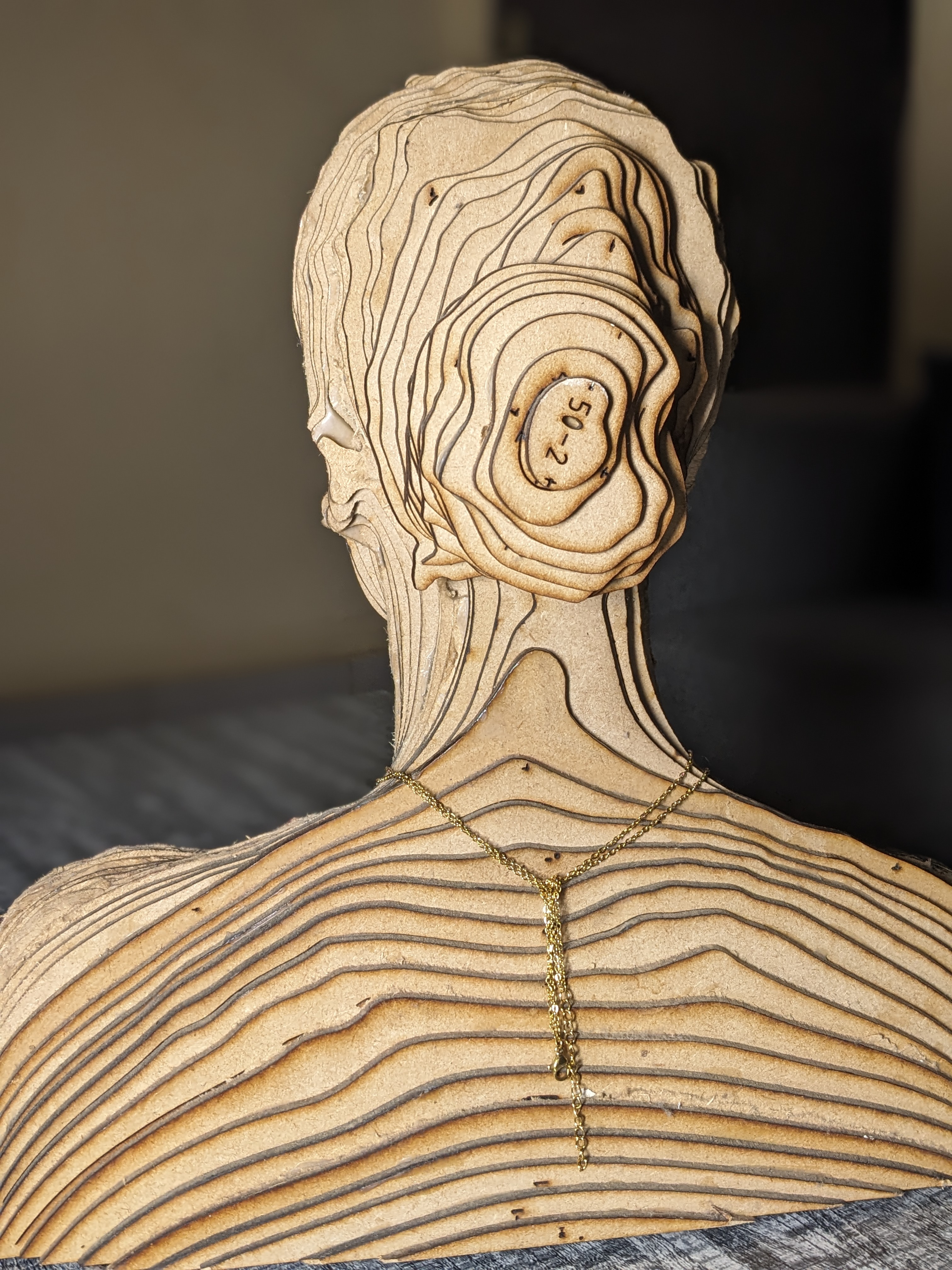

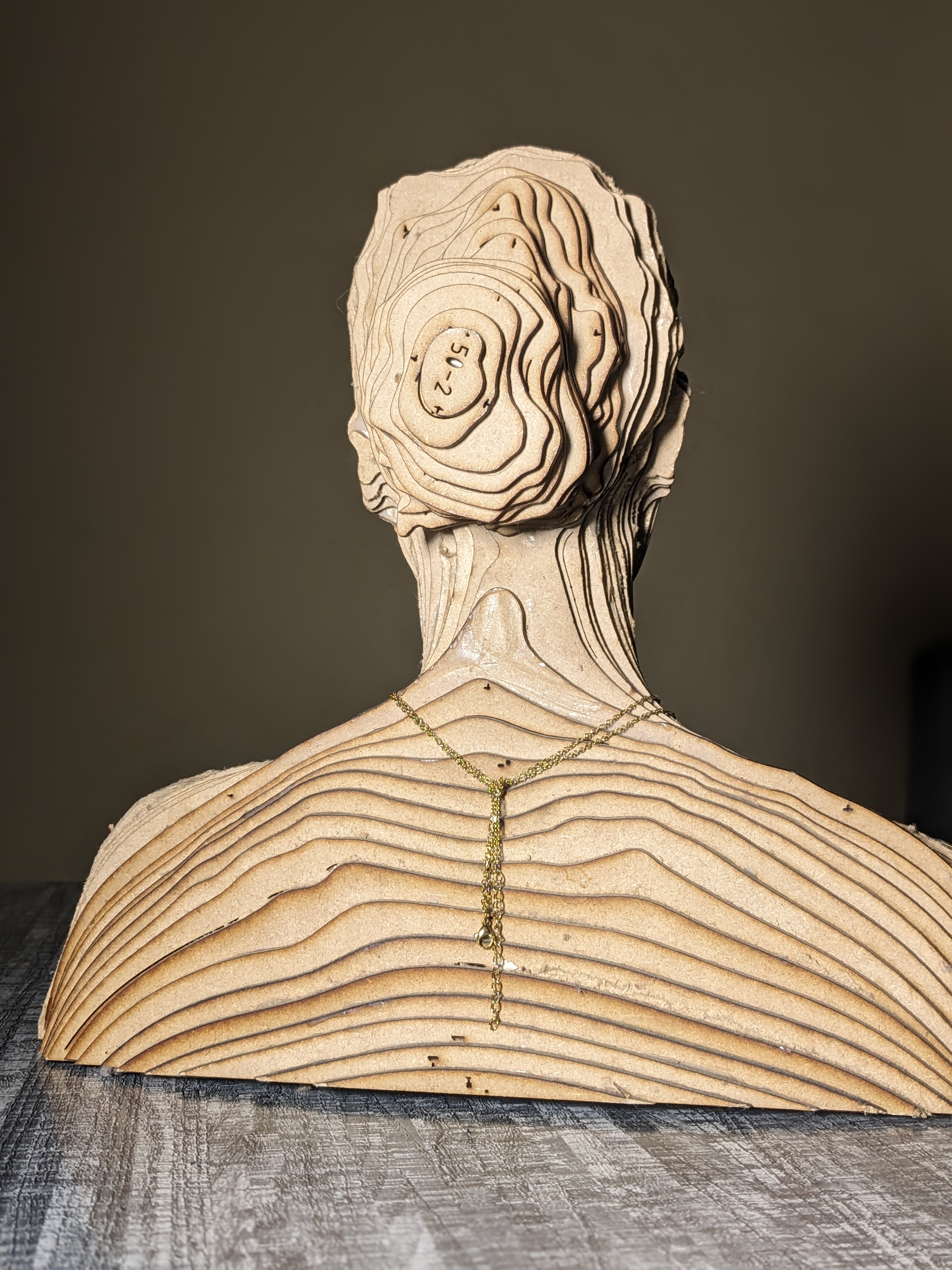

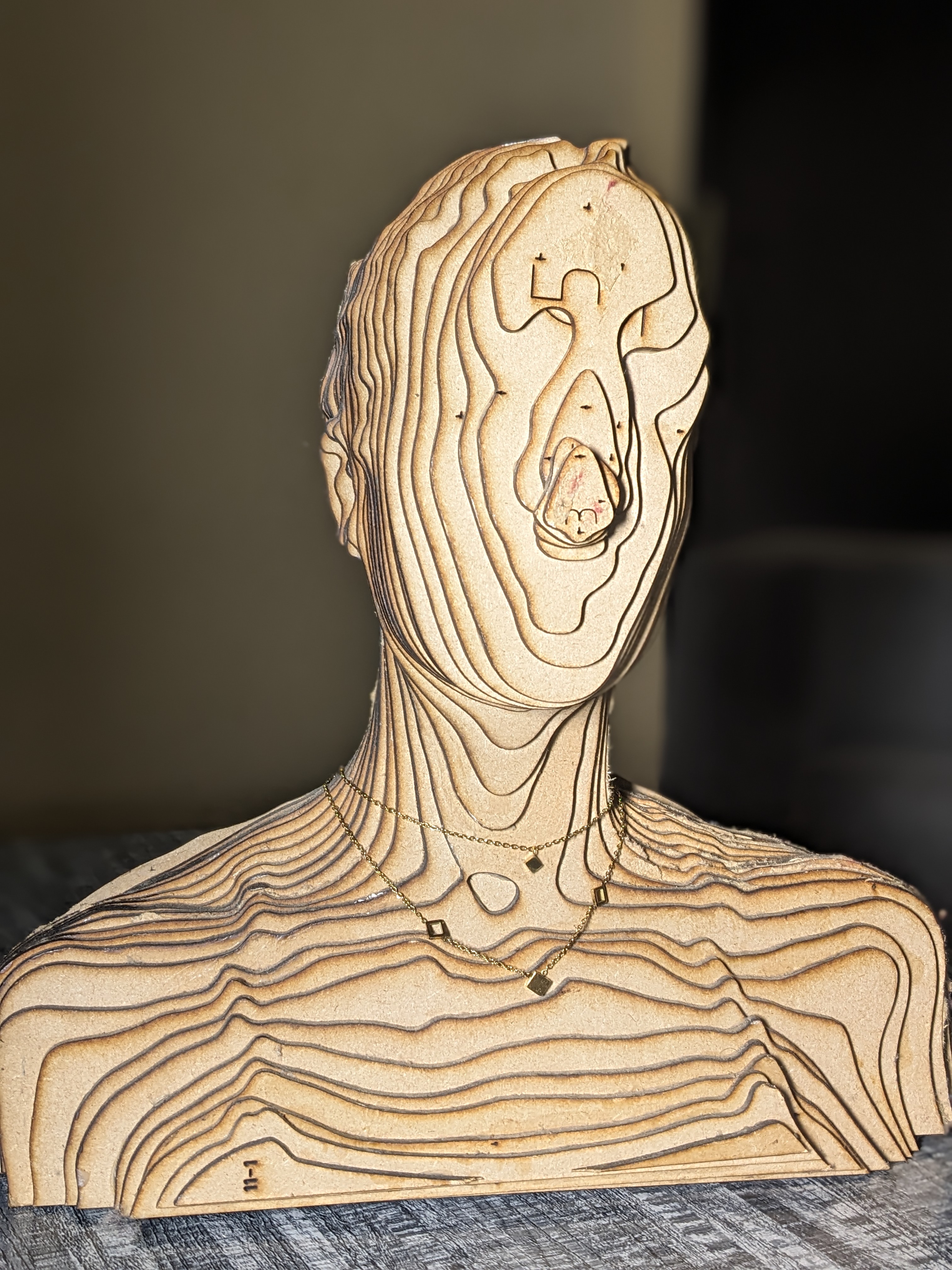

After cutting the pieces, I carefully proceeded with the stacking and gluing process. This meticulous step required precision to align each layer perfectly, gradually transforming the flat components into a cohesive, three-dimensional torso sculpture.

alt text

I organized the slices in order, then assembled the model piece by piece, aligning each layer and securing it with adhesive. Afterward, I performed a final quality check, making minor adjustments for stability and a polished finish.

alt text

3D Scanning

I started my 3D scanning with CRStudio, which provided an easy setup and precise results. The software's real-time feedback helped me capture detailed scans, creating a high-quality 3D model efficiently. alt text

Nonetheless, I attempted to use the Creality CR-Scan 1 by installing the necessary software and connecting the scanner. However, despite multiple attempts, my laptop failed to recognize the device. The software wouldn’t detect it at all, even when I tried on a different laptop. Facing the same issue, I ultimately had to abandon the effort. alt text

After that

I will continue to explore 3D methods, as I believe they offer unique possibilities for creating innovative designs and solutions. By experimenting with various techniques, I hope to deepen my understanding of 3D processes and how they can be applied to my work, whether it's in digital fabrication, biofabrication, or textiles. This ongoing exploration will allow me to push the boundaries of what I can create, offering exciting opportunities for both creativity and sustainability in my projects."
