10. Textile Scaffold

Research

Let's start the week!

I've been waiting for that moment since I first learned about the Fabricademy program. There are so many techniques to explore and master—each one opening up new possibilities for creative expression and innovation. The diversity of methods, from biofabrication to advanced digital manufacturing, is both overwhelming and inspiring. It's a thrilling journey to learn how to combine these techniques and bring new ideas to life in the world of sustainable design and technology.

References & Inspiration

Footwearology
Footwearology is a leading innovation center and academy for footwear professionals, offering online and in-person courses in Barcelona, Spain. Focused on meaningful innovation, the academy equips learners to create sustainable, locally-produced, and technologically advanced footwear. Their flagship programs include 3D printing, knitting, AI-driven design, and sustainability.
Footwear Technology

CNC ShopBot 5-Axis Machine

A CNC machine (Computer Numerical Control machine) is a tool that uses a computer to control its movements and operations. It takes instructions from a digital design file and uses them to cut, drill, carve, or shape materials like wood, metal, plastic, or foam with high precision. It works automatically, following the programmed instructions, which makes it faster and more accurate than manual tools.

ShopBot 5-Axis Features:

  1. Control box combining multiple functions into one location.
  2. Four DC motors for movement.
  3. Pneumatic actuators for precision.
  4. Rack-and-pinion mechanism for converting rotational to linear motion.
  5. Bed for securing the workpiece.

Safety Guidelines:

  1. Training: Operate only if trained and authorized.
  2. Protective Gear: Wear safety glasses, closed-toe shoes, and avoid loose clothing or jewelry.
  3. Workspace Check: Keep the area clear, and ensure the emergency stop is accessible.
  4. Material Prep: Securely clamp materials to the machine bed and verify suitability for cutting.
  5. Software Check: Double-check design files, toolpath settings, and machine configurations.
  6. Supervision: Never leave the machine running unattended.
  7. Clean-Up: Follow proper procedures for cleaning and waste disposal for clear seting.

ShopBot in Action

Start the machine with the red switch on the side (software cannot load without it). Open Shopbot3 on your computer. The green dots show the limit switch. Press "K" to work manually and move the tip using the Z-axis (Pg up). Clean the surface and sand if needed. Place the material on the plane with double-sided tape. Clip it with two pieces of wood nailed to the sides. Lower the skirt by turning the butterfly on the back. Ensure the collet and bit fit tightly; first attach the nut to the collet is well fixed, then insert the bit and secure it.

alt text

Start the machine with the red switch on the side (software won’t load otherwise). Open VCarve on your computer. Set up your material dimensions and toolpath settings. Clean and sand the surface if necessary, then place the material on the plane using double-sided tape. Secure it with two wooden clips nailed to the sides. Lower the skirt by turning the butterfly on the back. Ensure the collet and bit are tight; attach the nut to the collet, insert the bit, and secure it properly.

alt text

Process and workflow

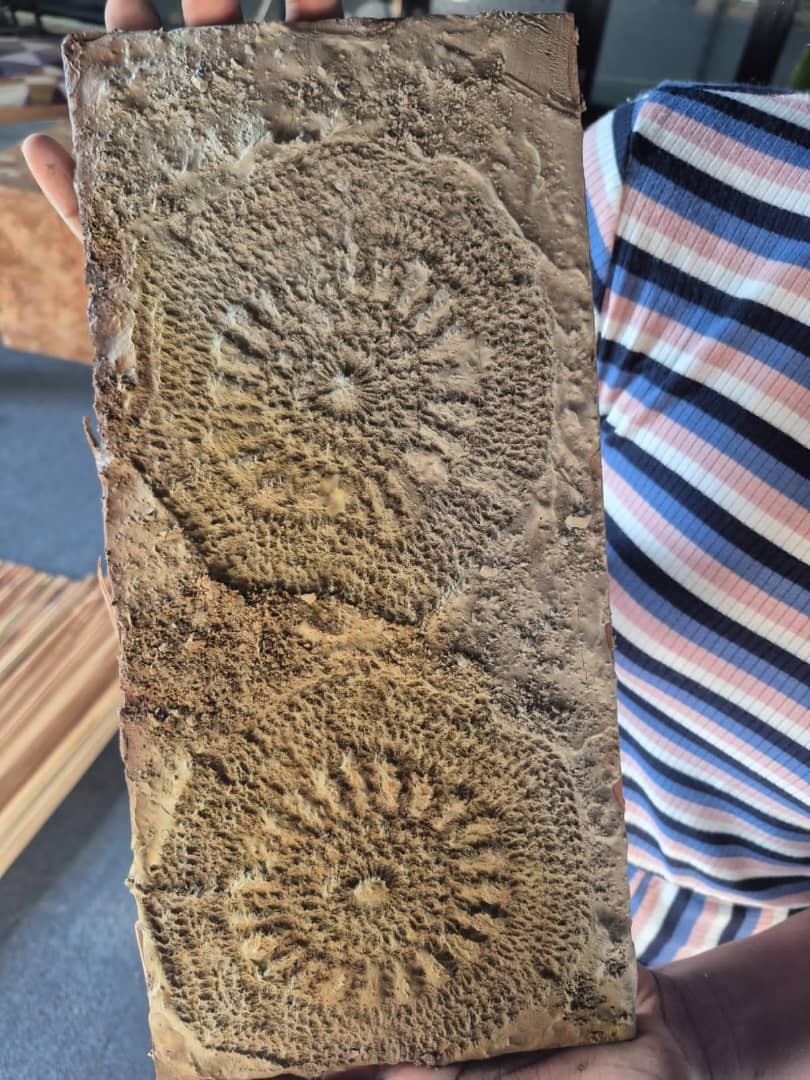

This week, I developed the idea of creating a circle mold. The simplicity of the circular shape provides versatility for various applications, whether for casting, shaping, or experimenting with materials. By focusing on this form, I aim to explore its potential for modular designs or unique textural effects. The circle's symmetry and clean geometry also align well with my interest in creating functional yet visually appealing outcomes. This project presents an opportunity to refine my molding techniques while allowing room for creative experimentation.

alt text

Ingredients & Recipes

RESULTS

Two ways of showcasing and comparing results with images below

On the left an image of a sample made by xxx with xxx. The dye is more xxx. On the right, an image of a sample made by xxx with xxx and xxx. Here the dye is more xxx.


---

Recipes

  1. recipe: salmon skin fish-leather ↩
