11. Open Source Hardware - From Fibers to Fabric¶
Research Skills and Concept Development¶
During this phase, I refined my ability to gather, synthesize, and critically analyze information from diverse sources. By delving into academic papers, design case studies, and practical examples, I built a solid understanding of both the theoretical and practical aspects of open-source hardware in textiles. This process was not merely about collecting data but about connecting ideas to develop meaningful and innovative concepts.
The insights gained through this iterative research process allowed me to bridge abstract ideas with actionable plans. I explored creative possibilities grounded in evidence-based methodologies, which helped establish a comprehensive framework for future projects.
Printing with wax project by Carolin Vogler¶
In exploring the intersection of open-source hardware and textile fabrication, it's essential to understand how digital fabrication technologies can modernize traditional textile production methods. Open-source hardware allows for the customization and democratization of tools, enabling innovators to adapt machines to specific needs without the constraints of proprietary systems.
Open-Source Hardware in Textile Fabrication¶
The integration of open-source hardware into textile fabrication has led to the development of machines that are both adaptable and accessible. For instance, the HILO Spinning Machine utilizes open-source software to facilitate local yarn manufacturing. Users can select raw materials, design digital yarn properties, and produce customized yarns on-site, empowering small businesses and educational institutions to explore new possibilities in yarn production.
HILO¶
- the HILO Spinning Machine - Open technologies

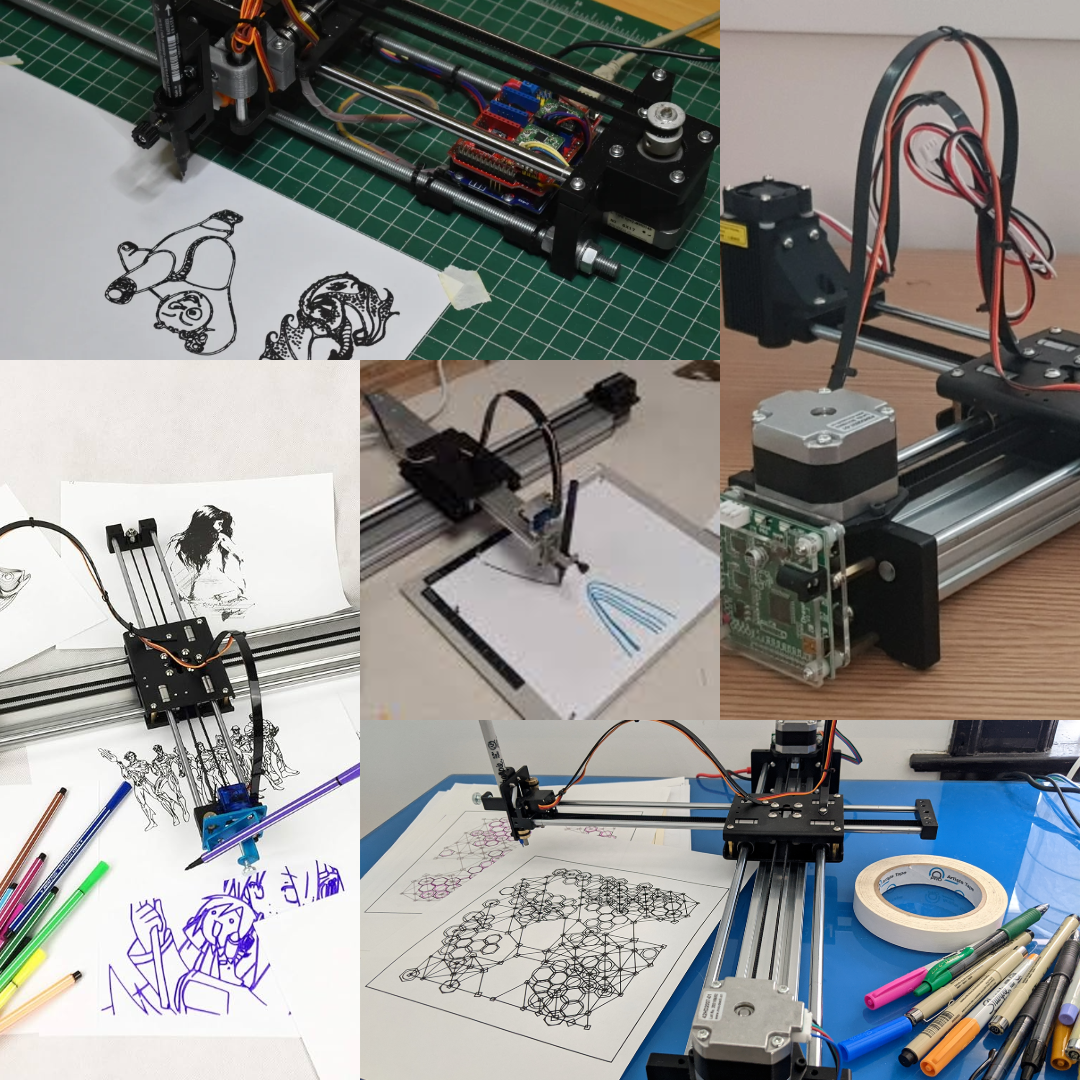

Similarly, the AxiDraw pen plotter, an open-source machine, has been employed in the textile industry to draw intricate designs directly onto fabric. This device offers precision and versatility, accommodating various drawing tools and materials, including fabric. Such machines exemplify how open-source hardware can be harnessed to innovate within textile fabrication.
AXIDRAW¶
- AxiDraw Models - EVIL MAD SCIENTIST Laboratories
References & Inspiration This fabric pen plotter represents the perfect fusion of technical precision and artistic expression, allowing me to translate creative concepts directly onto textiles. It acts as a digital extension of my hand—accelerating the design process while preserving a handmade essence. Beyond just constructing a tool, this project challenges conventional textile design, opening new possibilities for customization and innovation.
Creative Applications¶
- Personalized Text & Handwritten Details
There’s something deeply intimate about handwritten elements on fabric—whether it’s a name, a lyric, or a short message. With the plotter, I can digitize my handwriting or calligraphy and imprint it onto garments, creating one-of-a-kind pieces. Imagine a jacket lined with a hidden love note or a tote bag featuring a friend’s signature—small details that carry emotional weight.
- Precision Geometry & Repetitive Patterns
Manually drafting intricate geometric designs is time-consuming, but the plotter simplifies this process. It enables flawless execution of complex tessellations, sharp angles, or fluid, overlapping shapes—ideal for contemporary fashion, home textiles, or experimental wearables.
- Organic & Biomorphic Motifs
Nature has always been a rich source of inspiration—whether it’s the veins of a leaf, the ripple of water, or the asymmetry of coral. The plotter allows me to adapt these forms into scalable, repeatable prints, transforming raw inspiration into refined textile art.
- From Sketchbook to Fabric
One of the most exciting possibilities is transferring hand-drawn illustrations directly onto fabric. A doodle, a portrait, or an abstract sketch can become part of a garment, blurring the line between fine art and wearable design.
- Sustainable Reinvention
Upcycling gains a new dimension with this technology. Old denim, discarded linens, or scrap fabrics can be revitalized with custom illustrations, patterns, or text—giving forgotten materials a second life with intentional, artistic flair.
Fabric Pen Plotter¶
Plotting Systems¶
I considered integrating a plotter to automate and modernize fabric design. Plotters offer exact pattern reproduction and can print directly onto fabric, making them valuable for digital textile design. My research showed their adaptability with different materials and potential for custom designs, which aligns with my interest in experimenting with surface manipulation techniques.
- Plotters - What are the plotters
How It Works¶
Tutorial¶
Design Input: Digital patterns are created using CAD software. Fabric Setup: The fabric is securely placed on the plotter bed with clamps or vacuum suction. Drawing Process: The plotter moves the pen to draw the design on the fabric according to the digital instructions.
Applications¶
Pattern Drafting: Marks cutting lines, seam allowances, and darts for garments. Custom Designs: Creates illustrations or decorative patterns on textiles. Prototyping: Helps test garment or textile designs before full-scale production. Quilting and Embroidery: Draws templates or guidelines for stitching.
Key Benefits¶
Offers precision and speed for fabric marking or drawing. Works with various textile types, providing both temporary (washable) and permanent markings for different design needs.
Tools¶
Arduino UNO: Used as the primary microcontroller to execute commands and control the plotting mechanism.
Arduino IDE: A software platform for programming the Arduino board and uploading GRBL firmware.
2D/3D Modeling (Rhino3D): Utilized for designing the plotter's components and creating accurate digital models.
SolidWorks: A powerful CAD tool used to create detailed 3D models and simulate the assembly of the plotter.
PROCESS¶
Design Skills¶
In this phase, I developed my design abilities by utilizing SolidWorks software to create a detailed 3D model of the machine. The process began with conceptual sketches, which were then translated into precise digital designs using SolidWorks. This software allowed me to visualize and refine the framework, ensuring all components were accurately aligned and functional.
By leveraging the advanced features of SolidWorks, I created a machine design with structural integrity and efficiency. This experience not only enhanced my proficiency in 3D modeling but also enabled me to bridge the gap between initial concepts and practical implementation. The inclusion of electronics further enriched the project, adding a layer of interactivity and innovation.
Fabrication Skills¶
I have developed the ability to execute the complete workflow, starting from 3D modeling and progressing to digital fabrication. Using SolidWorks, I generated precise design files, which were then prepared for production using a 3d printer as well as the welding processes done. The process involved selecting materials such as aluminum profiles for the structure and various electronic components for functionality. While I successfully handled most of the fabrication, processes like advanced material welding required external support. This experience emphasized the importance of integrating design, materials, and electronics into a seamless workflow, ensuring that the final product met the desired specifications.
Process Skills¶
This week, I delved into the concept of creating a fabric pen plotter, a machine designed to draw intricate patterns or designs on fabric with precision. Combining automation with creativity, the project highlights the potential for customized and efficient fabric design, supporting innovative and sustainable approaches to fashion technology.
Machine Components¶
-
Frame: A sturdy base, typically constructed from aluminum profiles, wood, or 3D-printed parts, to support the entire system.
-
Linear Rails or Rods: Guides for precise movement of the plotting mechanism along the X and Y axes.
-
Profiles: Provide essential structural support to maintain rigidity.
-
Pen Holder: A mechanism to securely hold the pen, often incorporating a servo motor or solenoid for lifting and lowering.
-
Mounting Plate: A platform to secure the fabric during operation.
Electronic Components¶
-

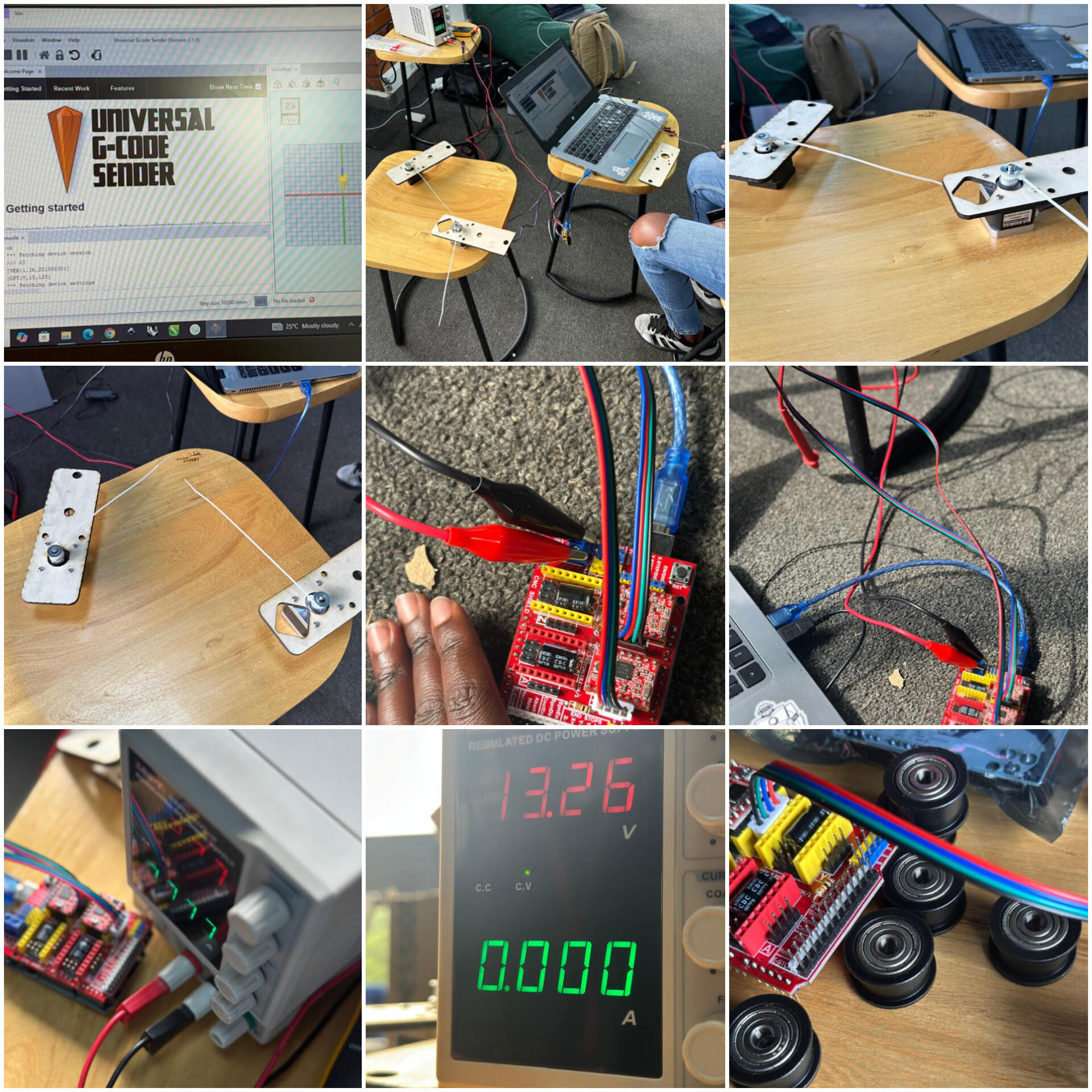

CNC Shield and Drivers: Responsible for controlling the stepper motors that maneuver the pen and other components of the machine.
-
Arduino Board (Nano): A microcontroller running GRBL firmware to execute plotting instructions.
-
Power Supply: Provides consistent power to the electronics and motors (commonly 12V).
-
Stepper Motors (NEMA 17): Enable precise movements along the X and Y axes.
-
Stepper Motor Drivers (A4988): Manage the stepper motors to ensure smooth and accurate operation.
-
Servo Motor: Facilitates the pen's vertical movements for drawing or lifting. Before beginning assembly, the components underwent inspection to ensure their physical and functional integrity. The soldering was checked for strength, and connections such as capacitors, resistors, USB ports, and spindle interfaces were tested for functionality and damage. This included verifying the A4988 drivers' condition and the performance of the power supply.
Machine Components¶
Fabric Plotter: Key Structural and Mechanical Elements To achieve precise fabric plotting, the machine relies on several critical hardware components. Below is a breakdown of their functions:
- Structural Framework Base Frame: Provides stability and rigidity, commonly constructed from aluminum extrusions, laser-cut wood, or 3D-printed brackets.
Support Profiles: Reinforce the frame and ensure proper alignment of moving parts.
- Motion Control System Linear Guide Rails/Rods: Enable smooth and accurate movement along the X and Y axes.
Alternatives: Smooth rods with linear bearings or V-slot rails for modular designs.
- Pen Mechanism Adjustable Pen Holder: Secures the pen or marker in place, often with:
A servo motor or solenoid for automated lifting/lowering.
Spring-loaded designs for consistent pressure on fabric.
Mounting Plate/Workbed: A flat surface (sometimes with clamps or pins) to keep fabric taut during plotting.
Optional Enhancements Belt-Driven or Lead Screw Actuation: Converts motor rotation into linear motion.
Custom Nozzles: For alternate tools like brushes, dye applicators, or embroidery guides.
Design of the adapter¶
The adapter design process in SolidWorks marked my primary contribution to converting the 3D printer into a pen plotter. I led the development of the adapter’s initial section, prioritizing a secure fit and optimal functionality. Once this first part was finalized, Magali proceeded to design the subsequent component, expanding on the groundwork I had established.
Plotter Case:¶
It houses and protects the mechanical and electronic parts of the pen plotter. It also provides structural stability during operation.
Penholder:¶
This holds the pen securely and guides its vertical movement for precise contact with the paper during plotting.
Pencap:¶
The pencap prevents the pen from drying out when not in use. It also protects the pen tip from damage.
PROCESS SCREENSHOTS¶

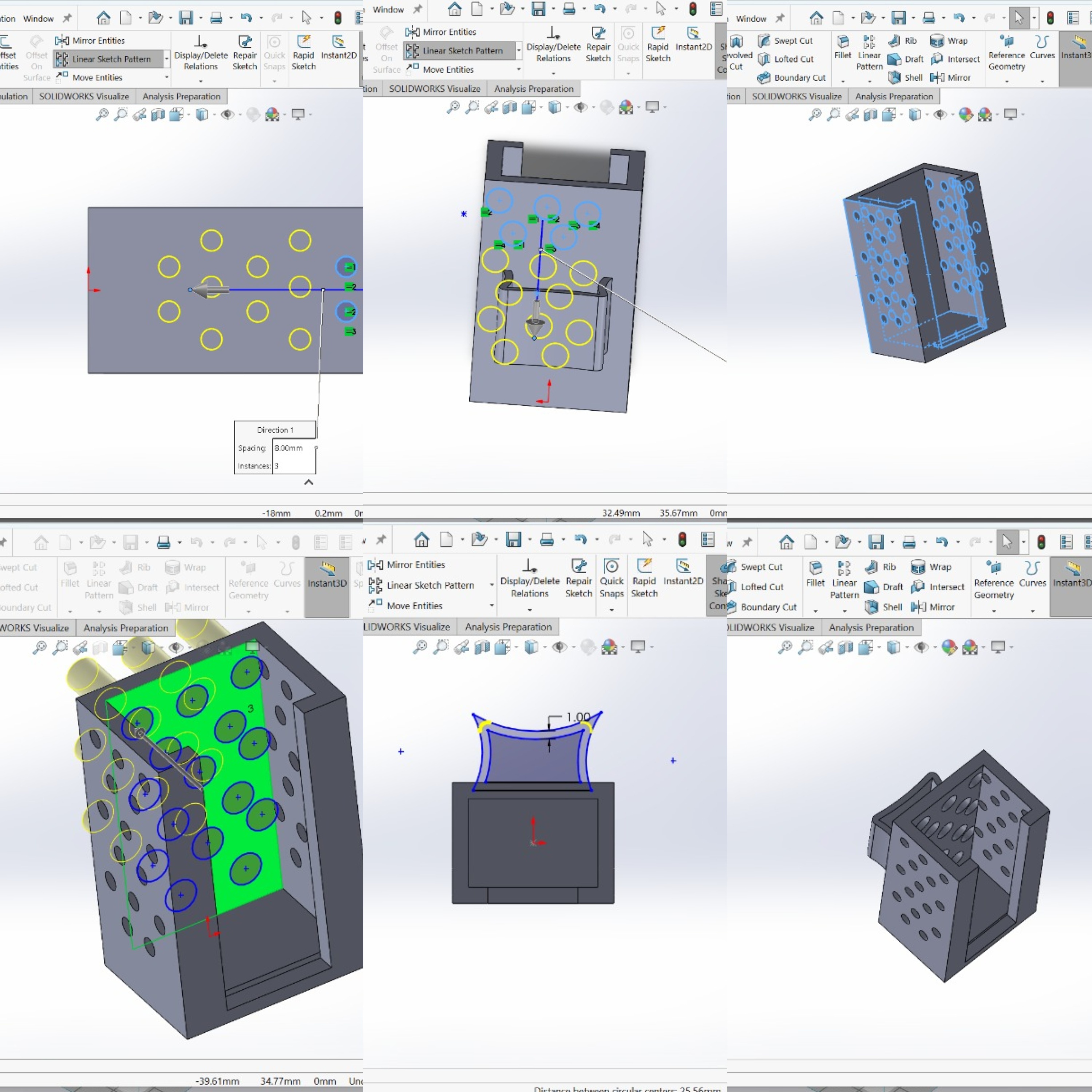

PLOTTER CASE¶

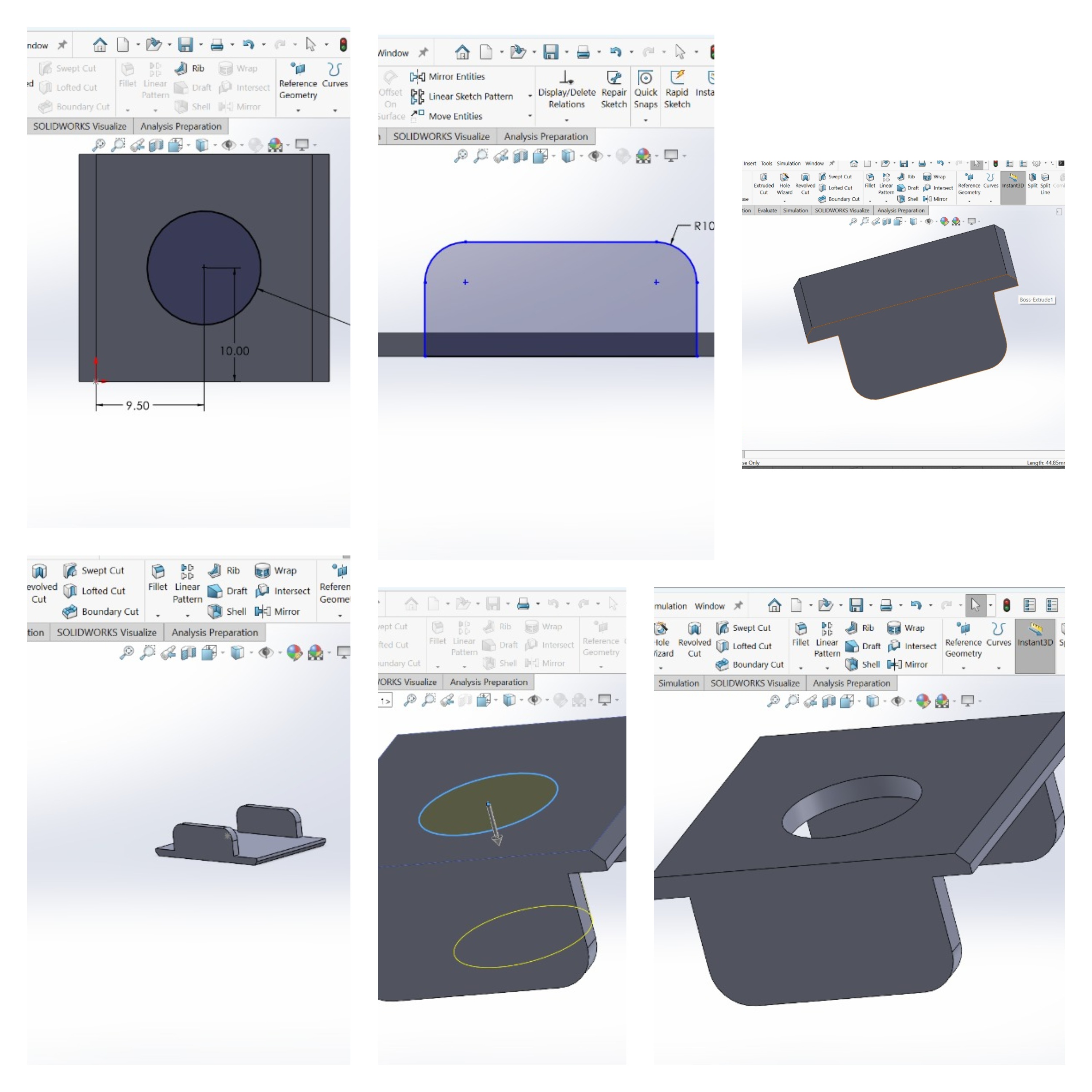

PLOTTER CAP¶
PLOTTER HOLDER¶
Fabrication Process¶

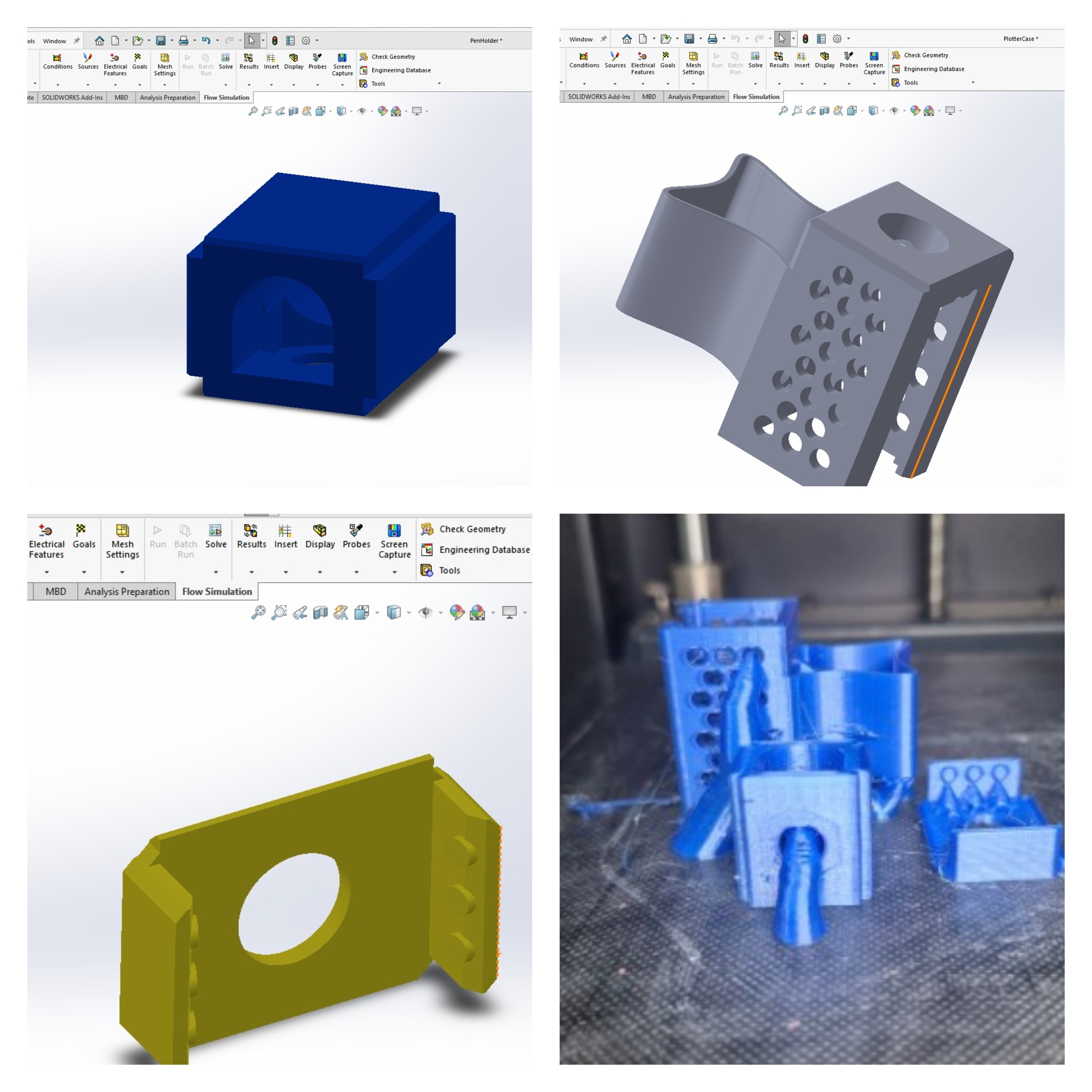

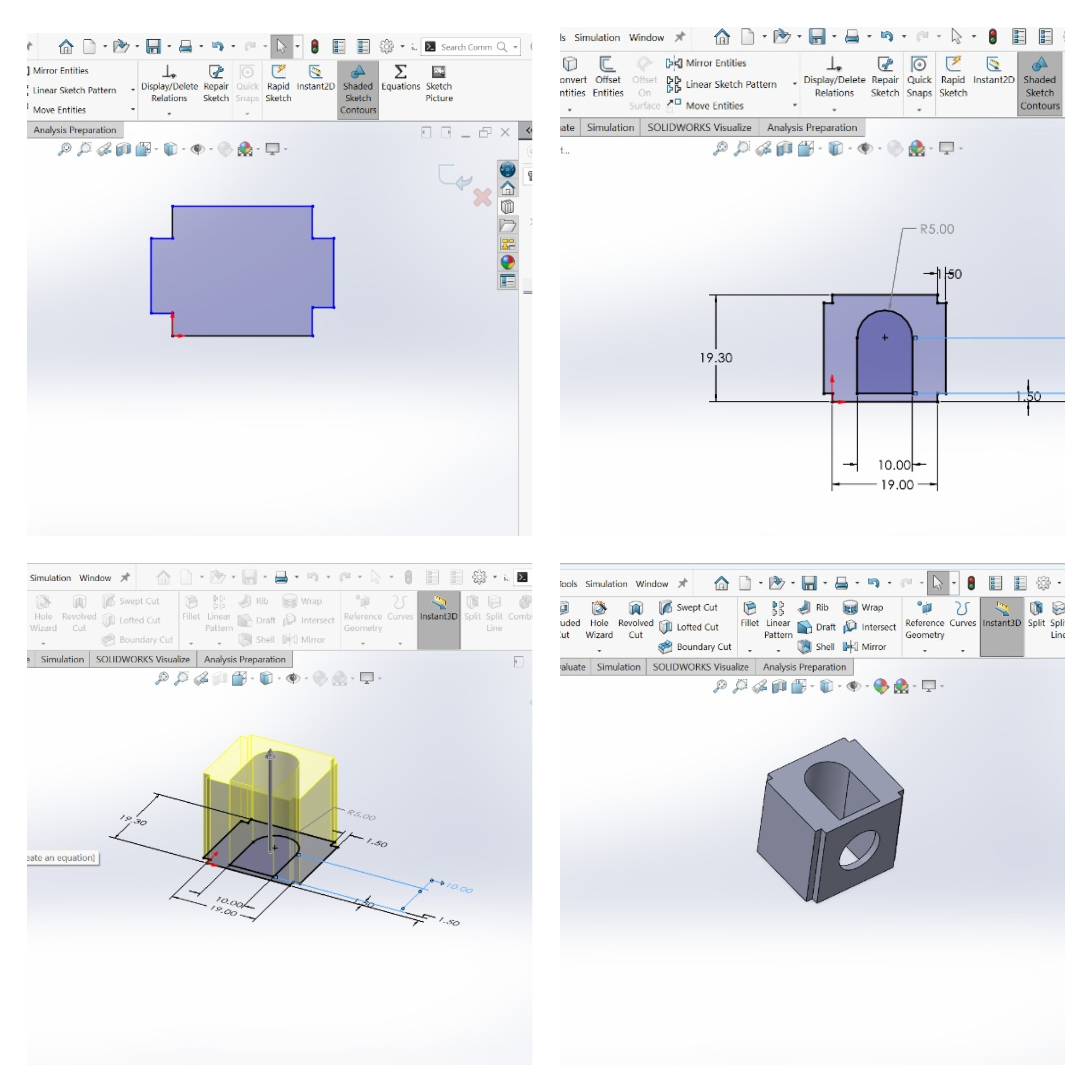

Adapter Design Process¶
We initiated the project by designing the plotter adapter using SolidWorks, which served as my primary contribution to the 3D printer-to-pen plotter conversion. I led the development of the adapter's first component, prioritizing secure mechanical fit and functional reliability. Following my completion of this initial section, Magali progressed the work by designing the subsequent adapter segment, extending the design framework I had established.
3D Printing Configuration¶

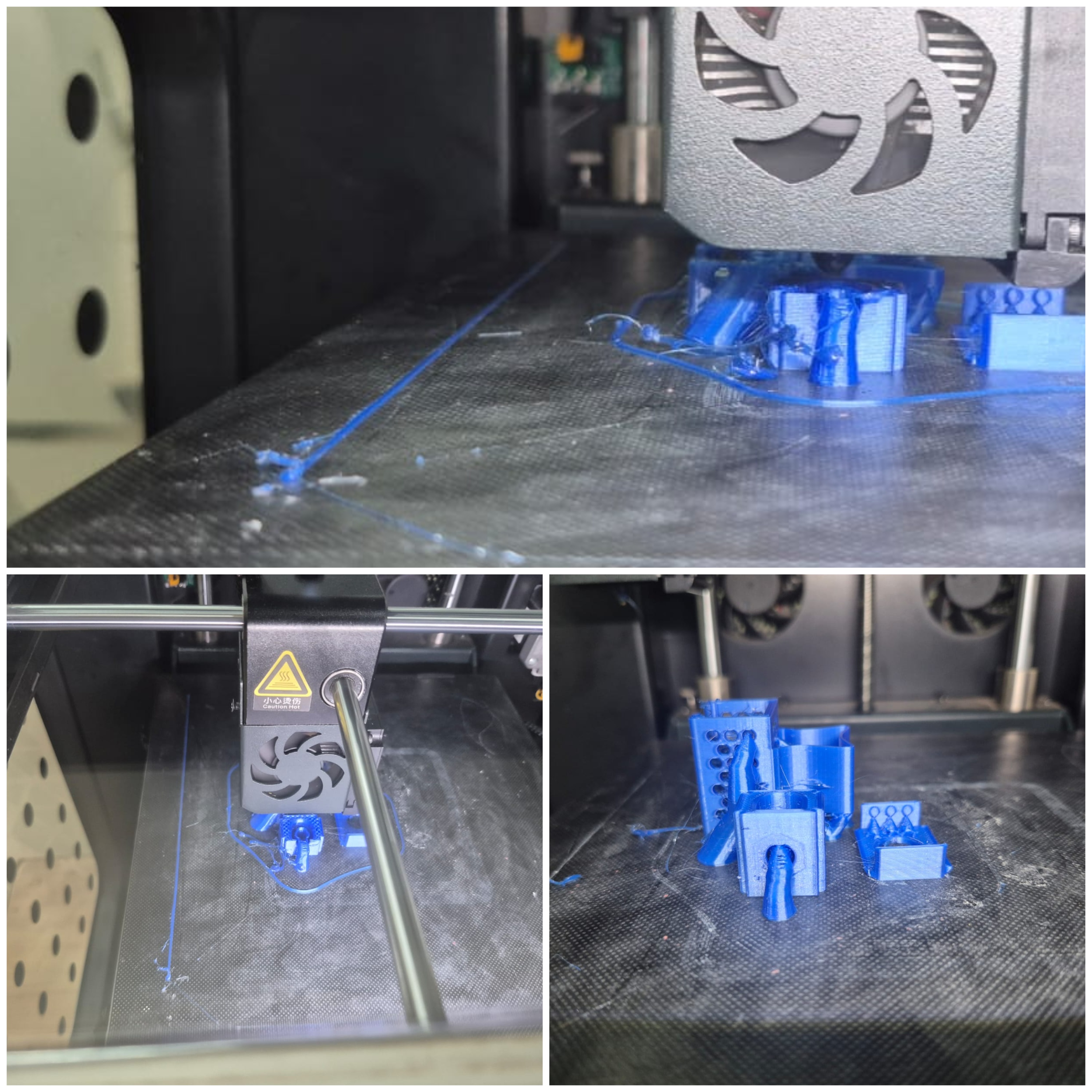

Following the design finalization, we proceeded to 3D print the adapter component. Special attention was given to dimensional accuracy to ensure compatibility with our existing setup. The printing process focused on achieving proper layer adhesion and structural integrity to guarantee functional performance during assembly. Post-printing, we verified critical measurements against design specifications before proceeding with system integration.
Print Quality ✓ Layer Height: 0.2 mm ✓ Wall Thickness: 0.2 mm ✗ Wall Line Count: 0 (disabled)
Structure & Strength ✓ Infill Density: 100% (solid) ✗ Supports: None ✗ Build Plate Adhesion: None
Temperature Settings ✓ Printing Temperature: 0°C (Note: Typically PLA requires 190-220°C) ✓ Build Plate Temperature: 0°C (Note: Typically 50-60°C for PLA)
Advanced Motion ✓ Retraction: Enabled ✓ Z-Hop When Retracted: Enabled ✓ Z-Hop Height: 0.4 mm ✓ Z-axis Scale: 0.2 mm
Machine Assembly Process¶

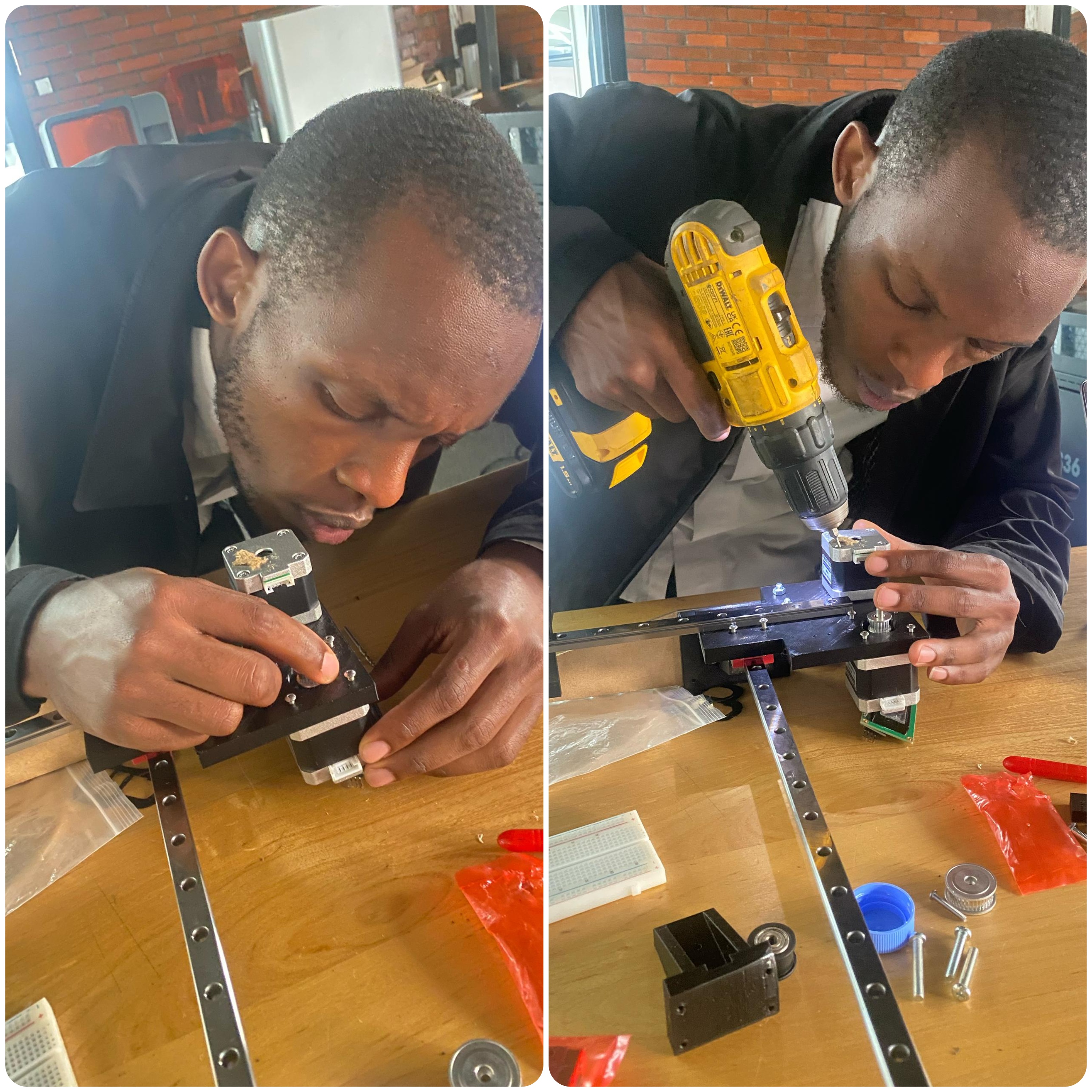

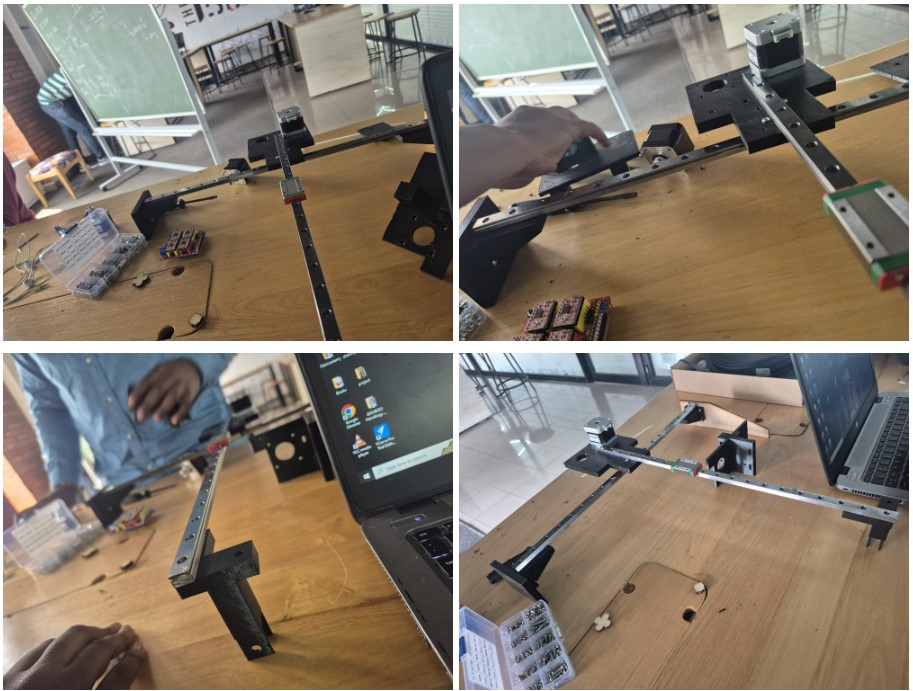

The machine assembly involved carefully fitting and aligning all mechanical components to ensure proper functionality. Key steps included mounting the structural framework, installing motion systems, and securing the tool attachment mechanism. Precise calibration was critical to maintain alignment and stability throughout the operation. The assembly process required troubleshooting minor fitting issues and verifying each component's integration before proceeding to system testing. This foundational work established the machine's core mechanical functionality.
Hardware Realization & Prototyping¶
During the initial planning session, I discovered that my existing 3D printer already contained all the necessary hardware and electronics for our project. Rather than building a complete machine from scratch, we focused our efforts on two key modifications: developing a pen attachment mechanism and implementing drawing control software.
The solution proved remarkably straightforward. After designing and printing a simple adapter, we successfully transformed the 3D printer into a functional plotter. The entire process - from concept to working prototype - was significantly easier than we had anticipated.
In the following sections, I'll walk you through the exact steps to convert your own 3D printer into a drawing machine, covering both the mechanical adaptation and software configuration needed to bring this project to life.

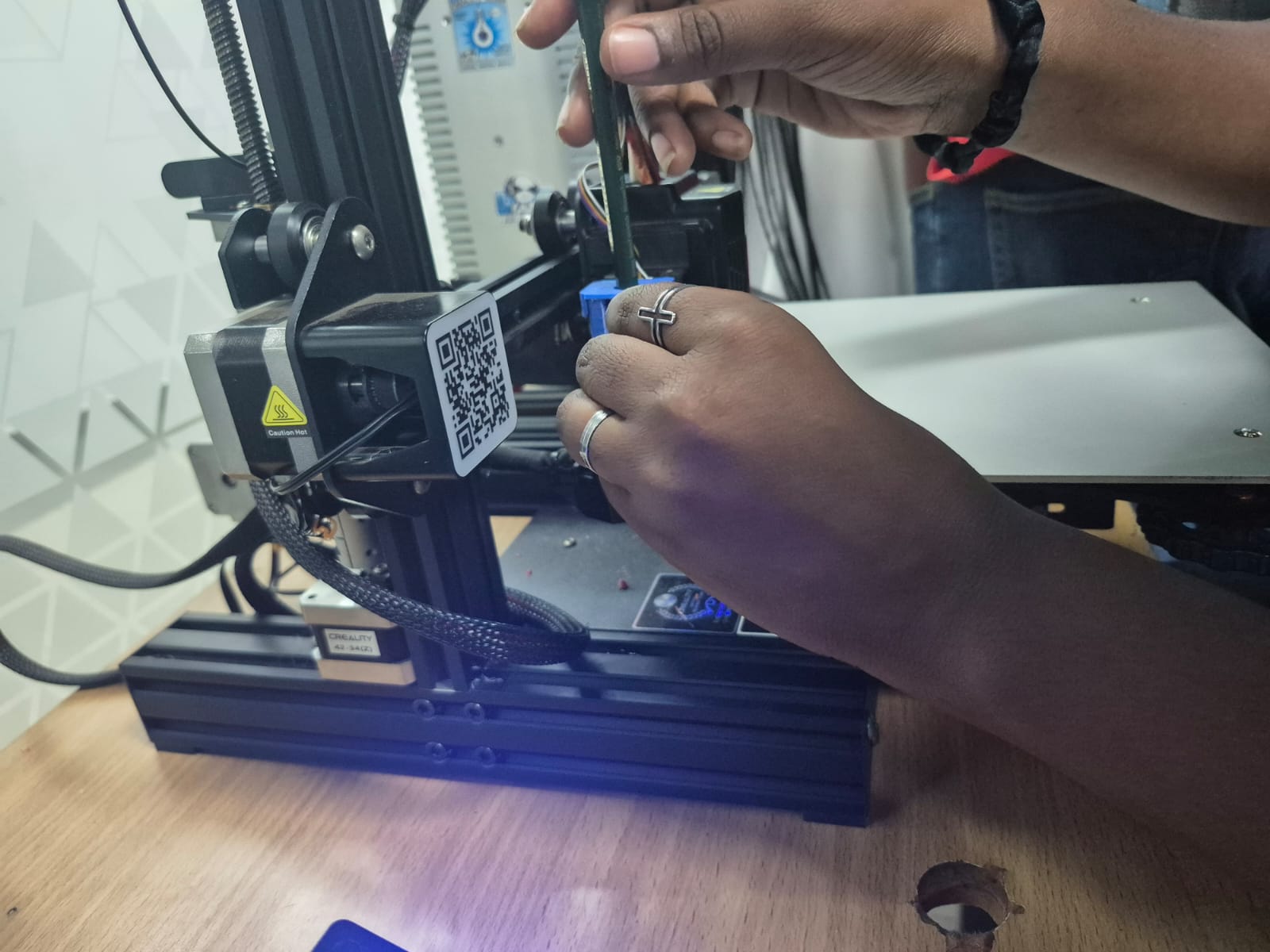

Step 1: Pen Attachment System¶
To convert your 3D printer into a plotter, you'll need to securely mount a drawing pen to the print head. The key requirements are:
The pen tip must extend slightly below the nozzle (typically 1-2mm) to maintain consistent paper contact
The mounting system must prevent wobbling during movement
My solution uses:
A 3D-printed pen holder adapter
An M3 screw for firm attachment
Adjustable positioning to fine-tune the tip extension

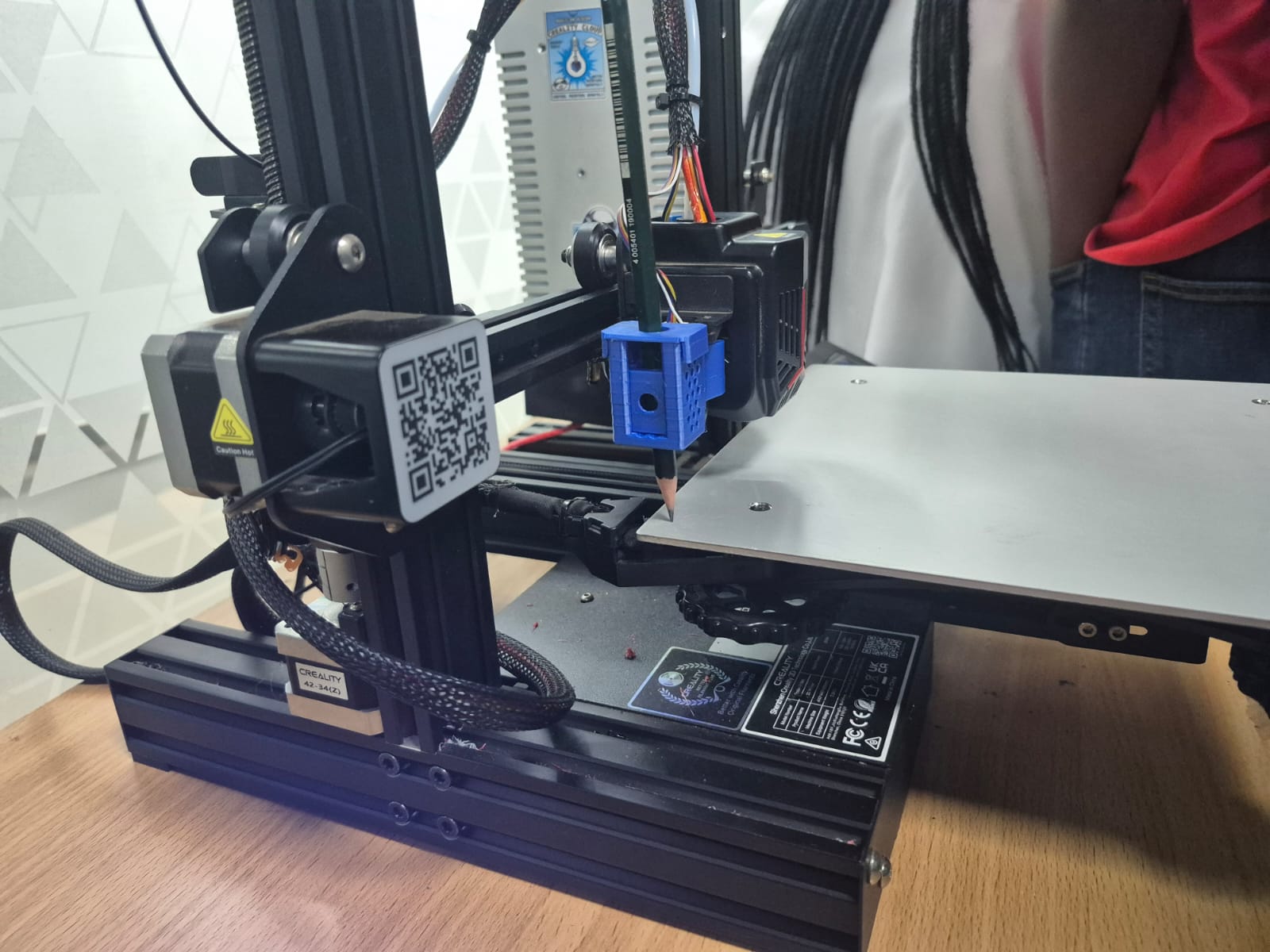

Step 2: System Calibration¶
After securing the pen, precise calibration is essential for accurate plotting. Follow these steps:
Secure the Paper
Use masking tape or clips to firmly attach your drawing paper to the print bed
Ensure full adhesion to prevent shifting during operation
Z-Offset Adjustment
Lower the pen gradually until it makes consistent contact with the paper
The tip should apply enough pressure for clear marks without bending or skipping
Test Patterns
Run simple geometric test patterns (squares, circles)
Verify line consistency and adjust pressure if needed
First-Layer Calibration
Treat this like 3D printing first-layer calibration
Ensure even contact across the entire bed surface
Step 3: Selecting Artwork¶
Use vector (SVG) files for best results. Tip: Add type:svg to Google Image searches to find ready-to-use vector graphics. While image conversion is possible, starting with SVG files simplifies the process.
Step 4: G-Code Conversion¶
The hardware setup proved surprisingly straightforward, but software configuration required more effort. After extensive testing, I developed a reliable workflow to convert designs into plotter-ready G-code.
Key points preserved:
Vector file recommendation
Search tip for SVG files
Hardware/software contrast
Final working solution
Condensed by ~60% while keeping all essential information.
NEXT PROCEEDING WITH MACHINE OPERATION TRIALS¶
Initial Test Plot:¶

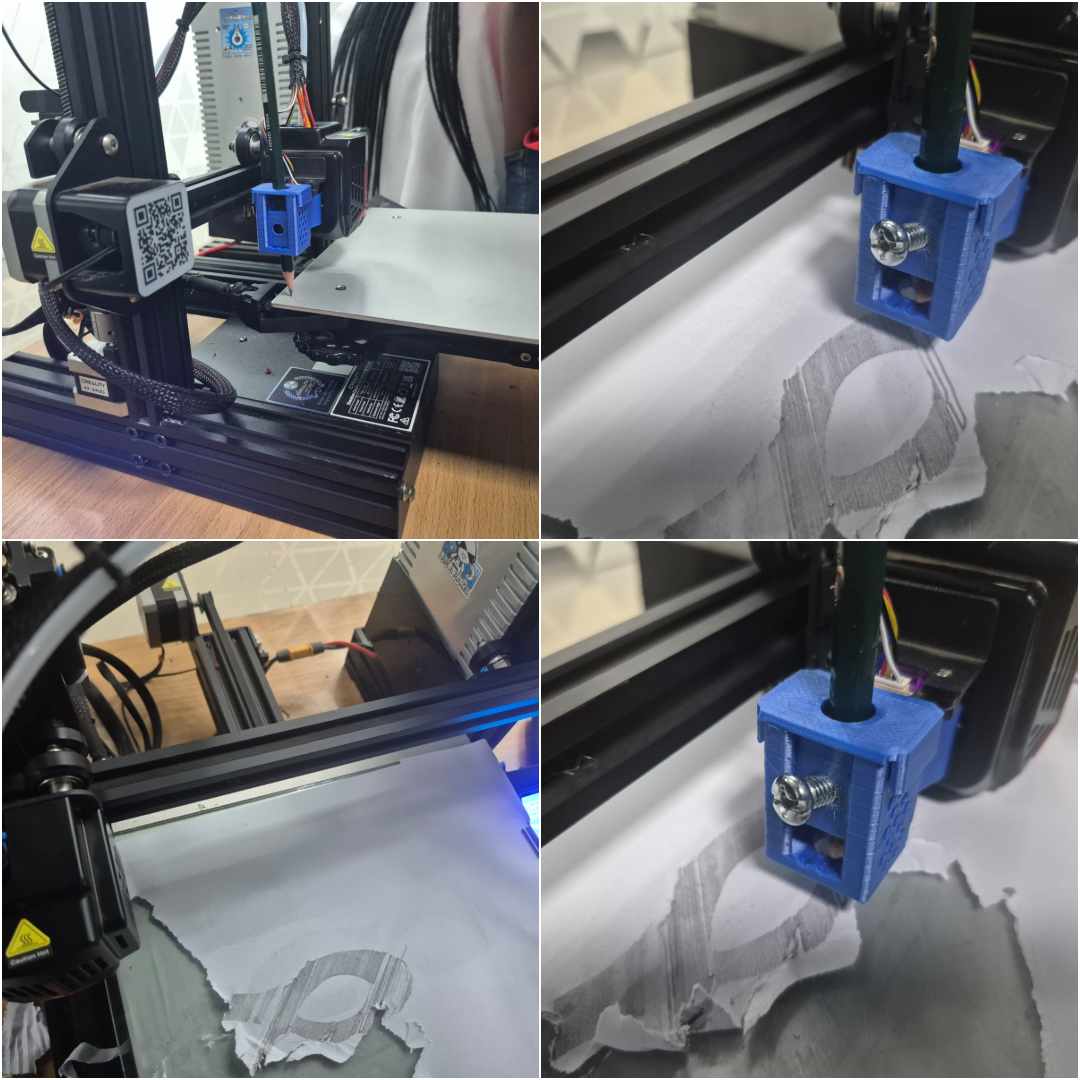

During our first test on paper, we encountered an issue where the nozzle was positioned too close to the surface. This caused the extruder to tear the paper during plotting.
Solution:¶
To resolve this, we manually adjusted the nozzle height at the beginning of the print job, ensuring proper clearance for smooth operation.
Plotter Offset Adjustment¶
We discovered that the pen adapter was mounted slightly off-center. To compensate for this, we adjusted the design positioning in the slicing software, shifting it slightly off-center to ensure accurate plotting.
Alternative Version (More Detailed):¶
Identifying the Offset Issue: Since the pen adapter was not perfectly centered, we noticed misalignment in our plots.
Solution Implemented:¶
To correct this, we offset the design coordinates in the slicing software to match the physical displacement of the adapter.
Testing & Results¶
After implementing our adjustments, we saw significant improvements in our plotting results - though we did lose one pen to the testing process!

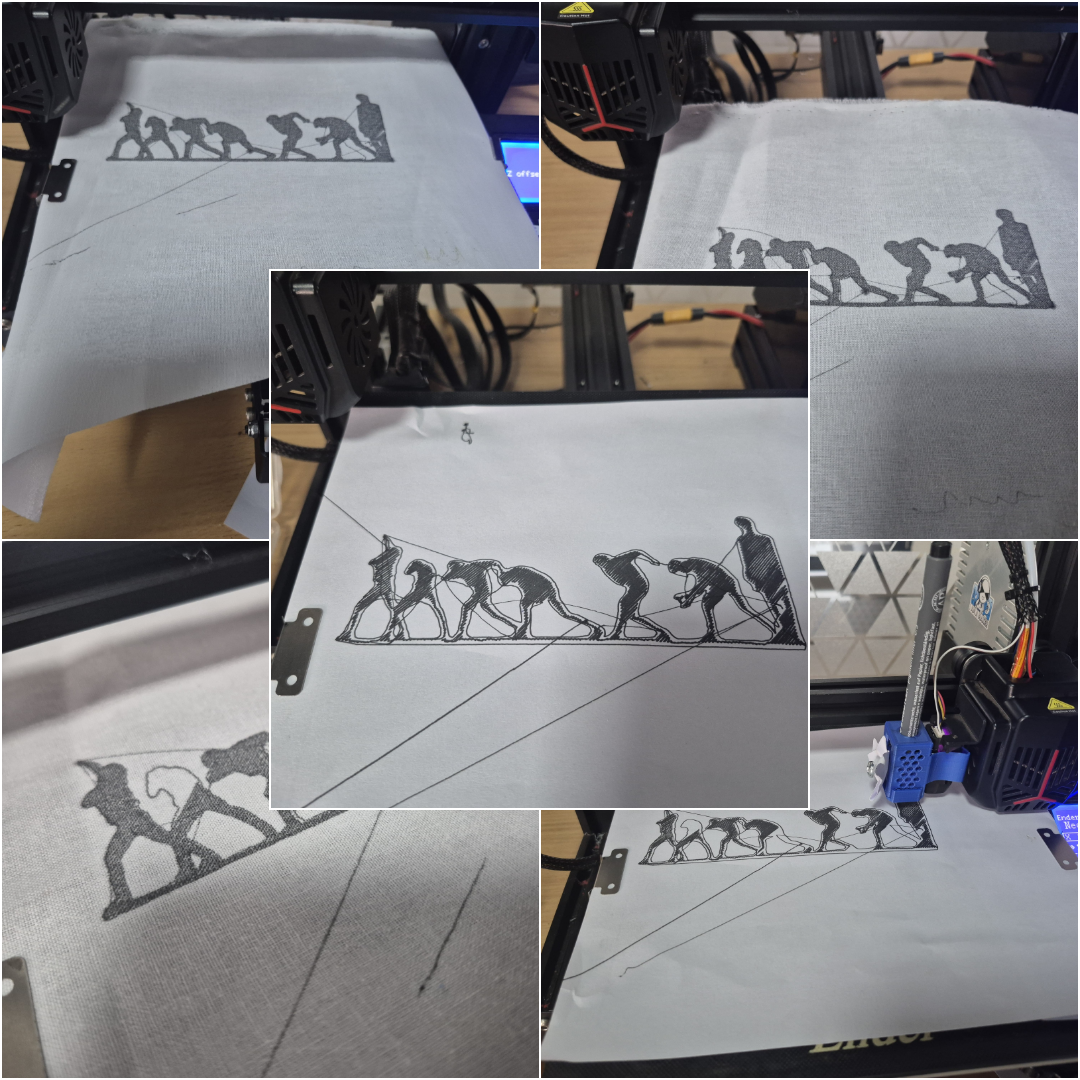

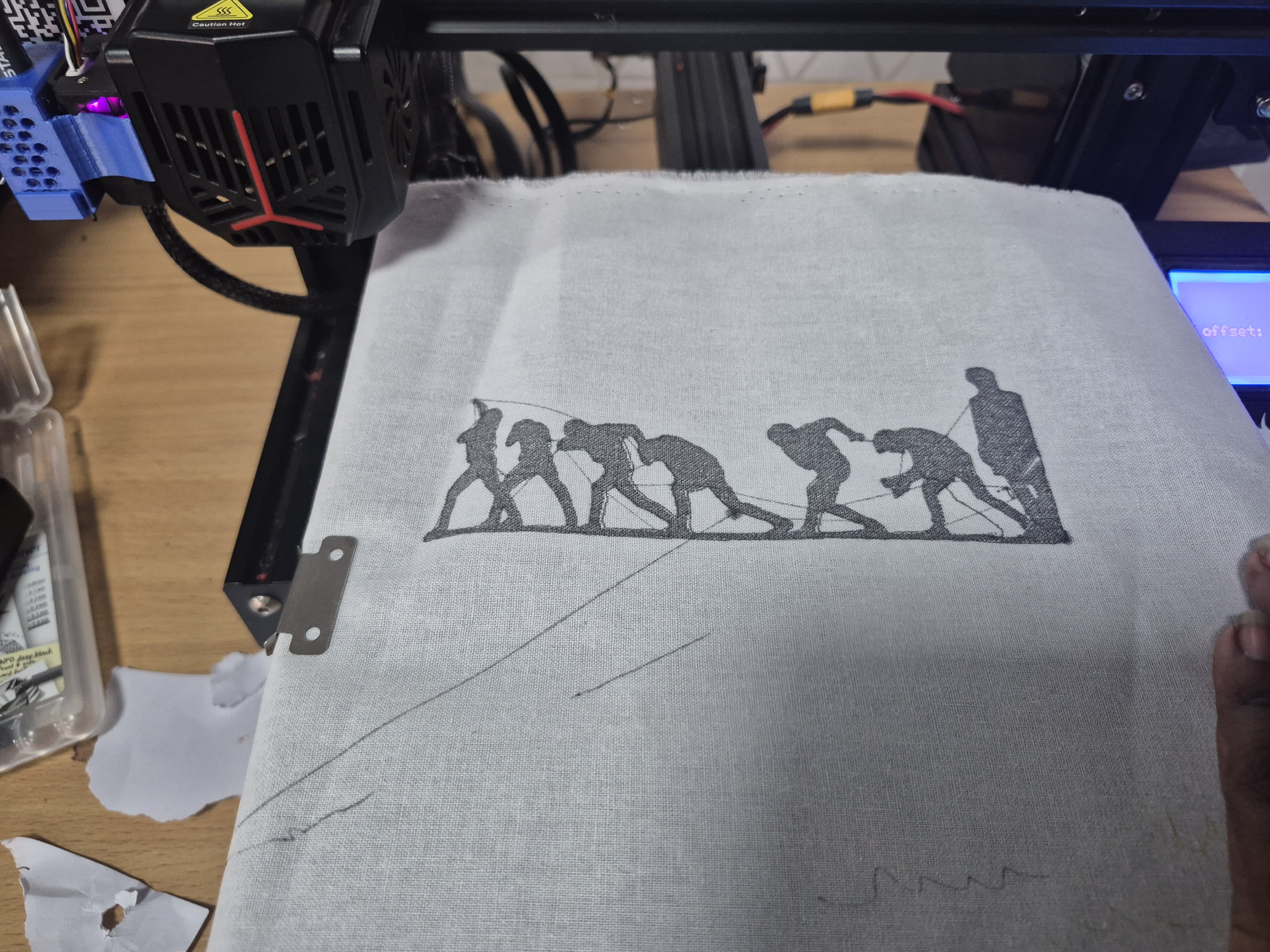

For our next experiment, we successfully plotted on fabric using standard liner pens (as fabric markers weren't available). The test worked well, and we're excited to try more complex designs in future sessions.
Alternative version with more technical tone:¶
Further Testing Phase
Post-adjustments, we observed:¶
Noticeable improvement in plot quality
One pen casualty during stress testing
We proceeded to fabric plotting using improvised materials (standard liner pens substituting for fabric markers), achieving successful results. This positive outcome has motivated plans for expanded design experimentation.
