INTRODUCTION

This week focused on Skin Electronics, combining wearability, aesthetics, and functionality. The goal was to design a wearable prototype that seamlessly integrates electronics onto the skin using unconventional and innovative materials.

alt text

Concept

The project explores the intersection of technology and self-expression through wearable skin electronics. Inspired by the fusion of art and science, the idea is to develop a skin-worn interactive light display using neopixels controlled by a XIAO ESP32-C3 microcontroller. The concept draws from:

• Body adornment traditions, reimagined with modern technology. • The rising trend of biometric wearables, where electronics serve functional and decorative purposes.

Sketches

Key design elements in the sketches include: • Flexible circuits designed with headphone wires. • Strategic placement of neopixels for aesthetic symmetry. • Integration of makeup to conceal circuits and blend with the skin’s surface. • Use of eyelash gel as a medium to secure and insulate electronic pathways.

References to Artistic and Scientific Publications

Artistic References

  1. Self-healing electronic skin: Stanford University researchers have developed an electronic skin capable of healing itself by combining a self-healing plastic and nickel, a conductive metal. Unlike self-healing polymers developed by other researchers, this skin did not require a high temperature or UV light to activate.

alt text

  1. Lighting electronic skin

Researchers from the University of California at Berkeley have created an electronic skin that lights up when touched. Pressure triggered a reaction in the skin that lit up blue, green, red and yellow LEDs; as pressure increased the lights got brighter.

alt text

Scientific References

  1. "Electronic Skin" by Takao Someya et al. (2019): Explores the development of flexible electronics that mimic skin’s properties for wearable applications.
  2. "Conductive Ink Applications in Wearable Electronics" (2020): Highlights the role of conductive inks in creating seamless, flexible electronic designs.
  3. "Wearable LEDs for Personalized Aesthetic and Health Monitoring" (2021): Discusses the use of LED arrays for dual-purpose applications in fashion and health tech.

Tools and Materials Used

Materials

  1. Headphone wire – Lightweight, flexible conductive material for pathways.
  2. Eyelash gel – Acts as an adhesive and protective coating for circuits.
  3. Makeup – Blends the electronic design into the skin for aesthetic appeal.
  4. Battery – Powers the circuit.
  5. XIAO ESP32-C3 – Compact microcontroller for programming and controlling neopixels.
  6. Neopixels – RGB LEDs for interactive light displays.
Tools

• Soldering iron • Multimeter • Tweezers • Arduino IDE (for coding and programming the XIAO ESP32-C3)

Steps Followed

Concept Development and Research

• Reviewed references and existing projects on skin electronics. • Defined functionality: interactive, wearable light display with artistic elements.

Sketching the Design

• Created rough sketches outlining the placement of components, wire paths, and neopixels.

Prototyping the Circuit

• Assembled the circuit using headphone wires and neopixels. • Used eyelash gel to adhere the wires and seal connections. • Integrated makeup to blend the design seamlessly onto the skin.

Programming and Testing

• Uploaded a light pattern program to the XIAO ESP32-C3 using Arduino IDE. • Tested the circuit’s functionality with a multimeter and made adjustments.

Final Prototype Description

The final prototype is a skin-worn light display that:

• Features an interactive neopixel array. • Blends seamlessly with the skin using makeup. • Is powered by a lightweight battery and controlled by a XIAO ESP32-C3.

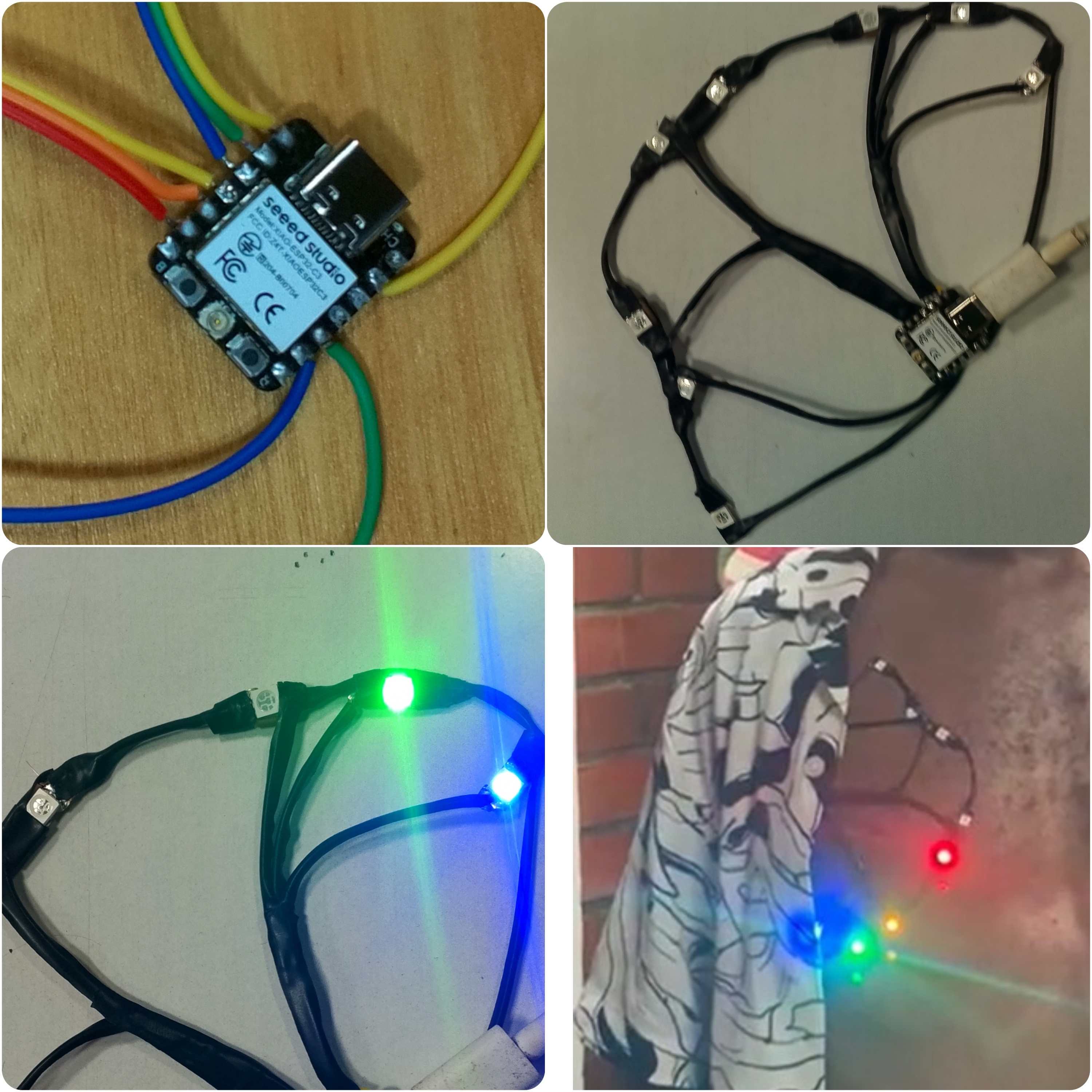

alt text

Code Example

Use the three backticks to separate code.

void setup() {
  // put your setup code here, to run once:
  pinMode(A0,INPUT);
  pinMode(3,OUTPUT);
  pinMode(4,OUTPUT);
  Serial.begin(9600);

}

void loop() {
  // put your main code here, to run repeatedly:
int state;
state = analogRead(A0);
Serial.println(state);
//if(state<500){
//  digitalWrite(3,1);
//  digitalWrite(4,1);
//}
//else{
//  digitalWrite(3,0);
//  digitalWrite(4,0);
//}
}

Results

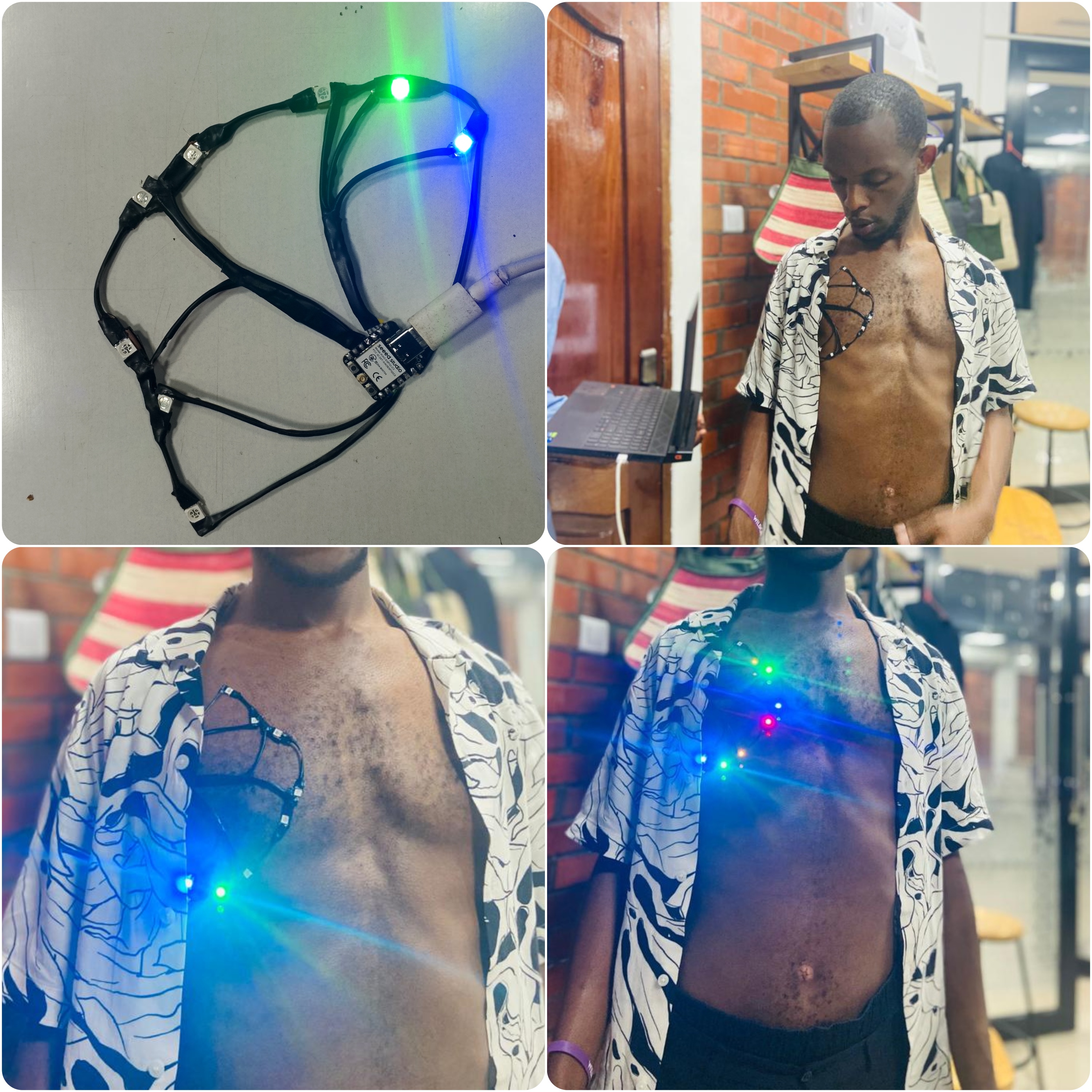

alt text

PROJECT FUNCTIONALITY

CommuniLight – Wearable Non-Verbal Expression System

This skin electronics project explores how light can become a language. By placing LEDs on the chest, the system gives non-verbal users a new way to express emotions and needs through simple light signals. It would:

  • Helps people with speech or movement disabilities communicate non-verbally
  • Uses colored LEDs to show emotional states (e.g., green = calm, red = distress)
  • Chest placement makes it easy for others to see and respond quickly
  • Works for users with autism, ALS, cerebral palsy, or stroke recovery
  • Can be linked with sensors (heart rate, skin temp) for real-time feedback
  • Supports independence and safety in daily life
  • Useful in emergencies where verbal speech is not possible
  • Promotes inclusive design and emotional connection through wearable tech
