CARTOGRAPHY_ locations and soil measurements

I took measurements of soil , using a gardening tool that gives you many parameters to undestand the qualities of the soil: fertility, soil's temperature and pH, humidity, sun light, and environment temperature. These are green areas in the streets and parks around my neighbourhood in Bilbao.

location_01

location 1

location_02

location 2

location_03

location 3
location soil fertility moisture pH temperature sun light humidity
1 633μs/cm 63% 4.0 9.5ºC 7777 lux 35%
2 368μs/cm 99% 3.5 6.8ºC 593 lux 42%
3 550μs/cm 78% 3.5 5.6ºC 1498 lux 40%

MATERIAL EXPERIMENTATION_3D printing

MYCELIUM

I am trying 2 processes to try cultivate mycelium on my 3D printed shapes, first process would be inoculating the pieces while they are humid, and the second would be to inoculate them afterwards when they are dried. For both am working with a biocomposite using wood dust as inorganic matter, because it's food for the mycelium.

wip

Preparing wood dust

STEP 0: MAKING THE BIOCOMPOSITE OF WOODDUST

WOOD DUST BIOCOMPOSITE FOR 3D PRINT
Alginate 16gr
CMC 20gr
H2O 800ml
Glycerol 64gr
WOOD DUST 200gr

INOCULATING WET PIECES

STEP 1: AUTOCLAVE BIOCOMPOSITE

wip

biocomposited ready

wip

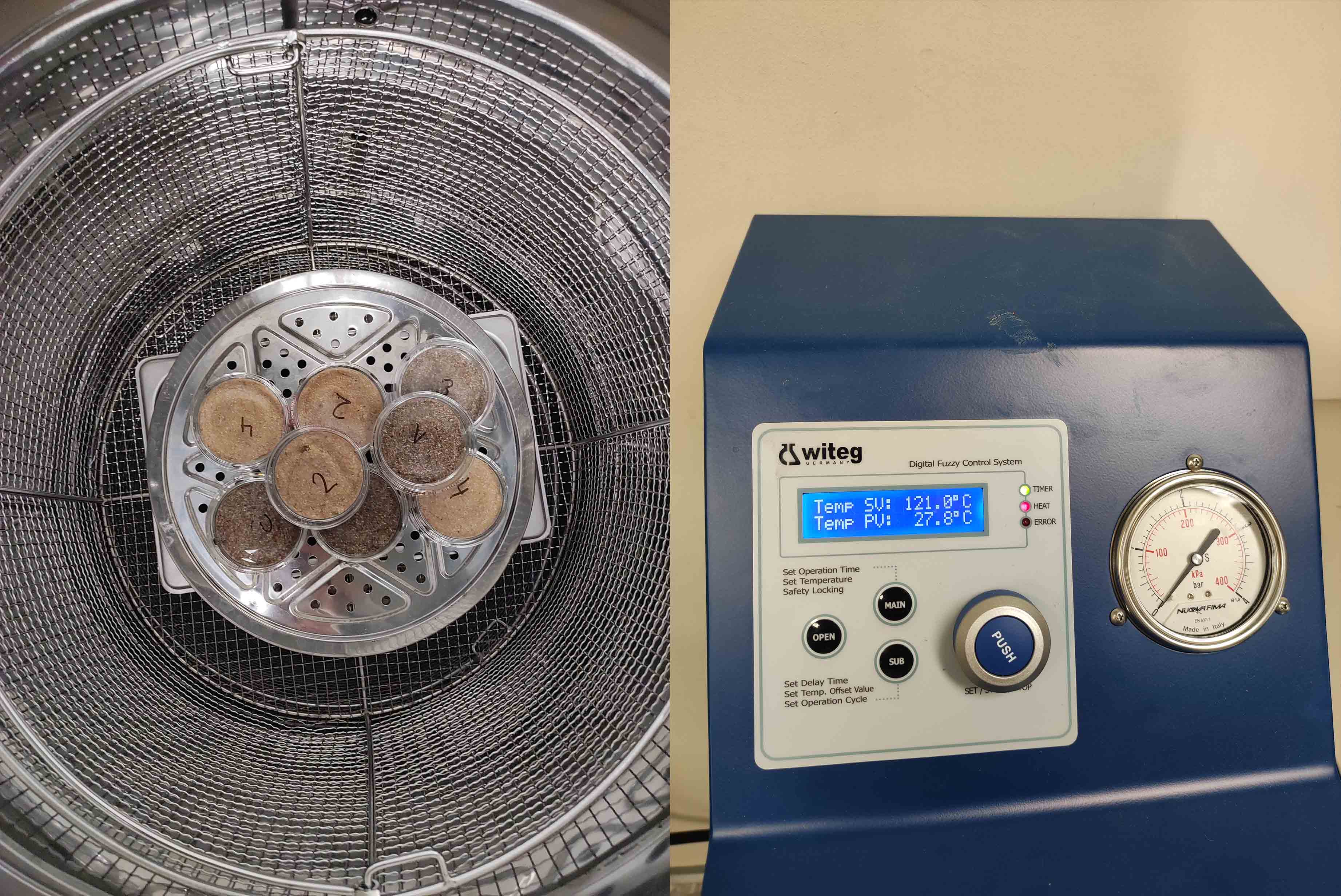

AUTOCLAVE

STEP 2: CLEANING AND STERILIZING WITH ALCOHOL 3D PRINTER AND TOOLS

Soaking in isopropanol the smaller parts of the WASP machine for a couple hours before printing, and spraying with isopropanol as much as posible the tank and all the parts in contact with the biocomposite.

STEP 3: 3D PRINTING WHILE SPRAYING EVERYTHING WITH PEROXIDE

STEP 4: INOCULATING PIECES AND KEEPING THEM ISOLATED ON AN STERIL ENVIRONMENT

wip

WET PIECES INOCULATED

Sadly, all the pieces I did with this recepie haven't succeded to grow mycelium and/or got contaminated, or dryed out.

wip

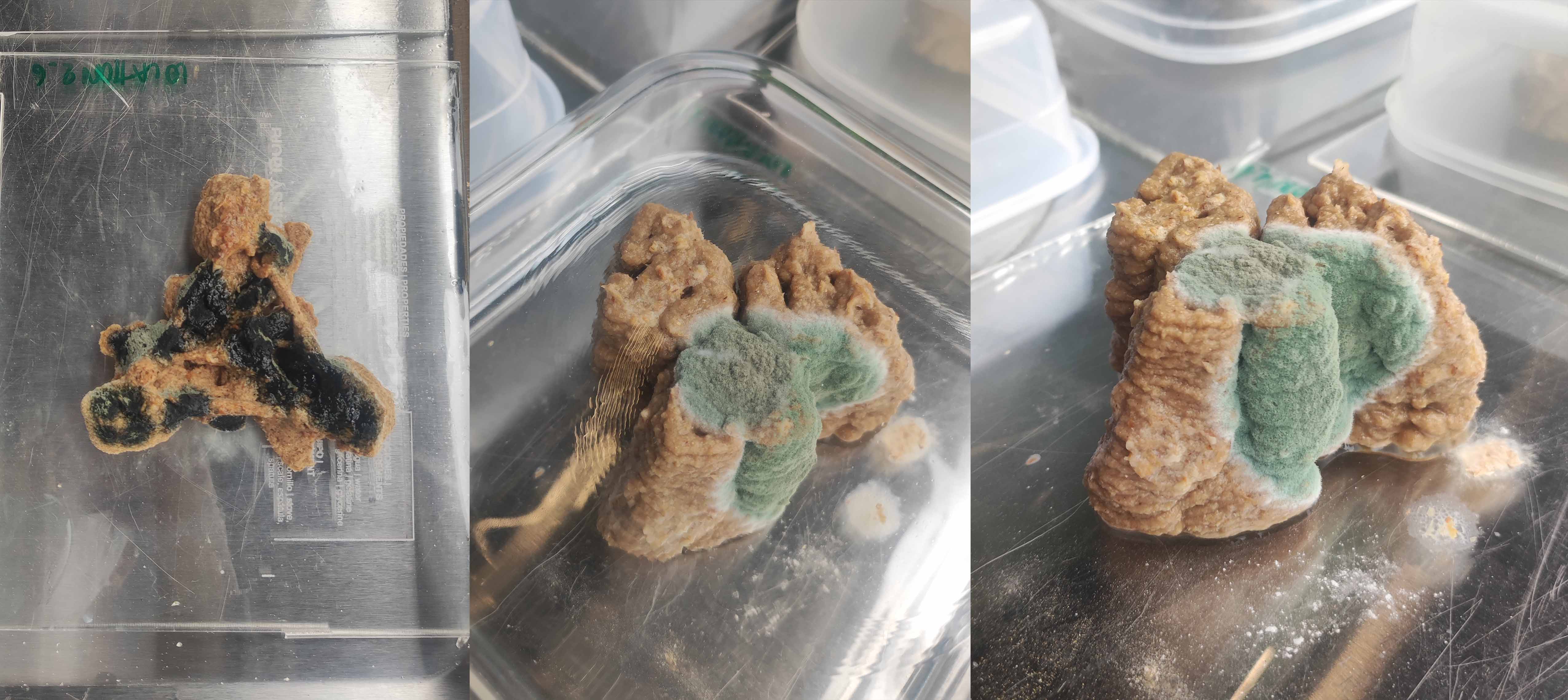

contamination

INOCULATING DRY PIECES

wip

PREPARATION DRY PIECES FOR INOCULATION

wip

OBSERVING DECAY PROCESS

NEW BIOCOMPOSITE RECIPES

Because the try-out pieces with my first recipe weren't working with the inoculation i tryed several new recipes on petri dishes until i find one that might work. On these recipes first i started by adding grain or bagasso together with the sawdust to see if that made the mycelium grown, but as only this together with cmc+alginate wasn't working i started to also modify a bit the quantities of the different aglutinants and add new ingredients that could feed the mycelium, such as pectine.

RECIPE 1:

Xantana Gum 1gr
CMC 1,5gr
H2O 50 gr
Glycerol 4gr
SAW DUST 6,25gr
Bagasso 6,25gr
RECIPE 2:
Xantana Gum 1gr
CMC 1,25gr
H2O 50 gr
Glycerol 4gr
SAW DUST 6,25gr
Oats grain 6,25gr
RECIPE 3:
Xantana Gum 2gr
H2O 50 gr
SAW DUST 6,25gr
Bagasso 6,25gr

RECIPE 4:

Xantana Gum 2gr
H2O 50 gr
SAW DUST 9,64gr
Oats grain 9,64gr

RECIPE 5:

Xantana Gum 4,5gr
Gelatine 3gr
H2O 150 gr
Glycerol 2gr
SAW DUST 26gr
Oats grain 26gr

RECIPE 6:

Xantana Gum 3gr
Pectine 3gr
CMC 1,5gr
H2O 150 gr
Glycerol 2gr
SAW DUST 20gr
Bagasso 20gr

wip

PETRI DISHES INTO NEW LABORATORY AUTOCLAVE

wip

NEW RECIPES INOCULATION + MYCELIUM GRAIN

HERE WE CAN SEE FINALLY RECIPES 5 AND 6 ARE WORKING AND MYCELIUM IS GROWING !

wip

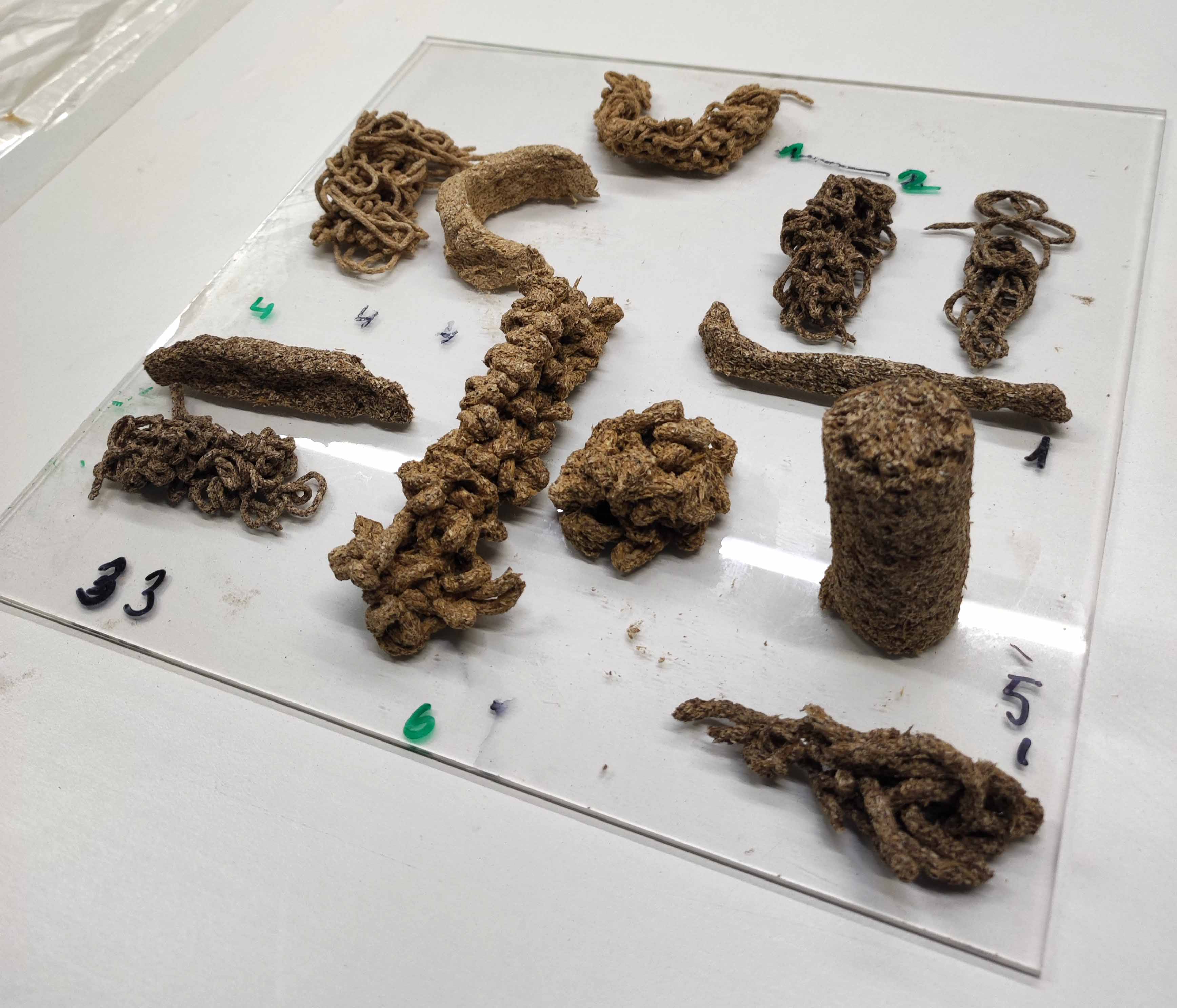

TRY OUT STABILITY/HARDNESS FOR 3D PRINTING

BIOCOMPOSITE

Did first try-out of my shapes to 3D print on biocomposite to see if they were working.

wip

BIOCOMPOSITE 3D PRINT
ORGANIC BIOCOMPOSITE FOR 3D PRINT
Xantana Gum 8gr
H2O 200ml
clementine skin dust 45gr

wip

BIOCOMPOSITE 3D PRINT

PARAMETRIC DESIGN

For the formal developement of the pieces am relating the soil measurements obtainned at each location to a parameter in grasshopper, in this way, each shape is a cartography itself of the data obtained at that location. Am inspired by the data graphic and how those can become tridimensional.

try-outs

First try-outs translating each location's data into a series of blocks-set

wip

Second try-out translating each location's data into an organic shape

wip

finals

I did an adaptation from this WEAVE TOWERS tutorial by Architutors to develop my prototype shapes, where i use the soil measurements to define the diferent parameters and optain a series of corelated shapes.

wip

PROTOTYPES ON RHINO

Here is the file to the GrassHopper definition

File: WEAVE_TOWERS

Prototypes

Now I've developed the tridimensional design of the pieces am first printing the prototypes in clay, to understand the shape of the pieces, how the machine reacts and prints them and to also have them to keep them as models. PROTOTYPE LOCATION 01

wip

PROTOTYPE CLAY LOCATION 01

PROTOTYPE LOCATION 02

wip

PROTOTYPE CLAY LOCATION 02

PROTOTYPE LOCATION 03

wip

PROTOTYPE CLAY LOCATION 03

At the moment I am printing each piece 1x1 scale with a biocomposite made of CMC+ALGINATE+GLYCEROL+SAWDUST. Because the pieces would not stand its height while printing, i have sliced each sculpture in 7-12 slices, each of 5 to 7 cm tall. For now, i printed 4 slices from the first scultpure.

Mentoring notes

MIDTERM · Work towards a storytelling, more focus presentation, from concept to development and final pieces · Look into growing architecture projects

FINAL PRESENTATION · Very fine artistic approach to soil. · Take a risk to put bigger pieces in their location. · Big potential to explore further, scale the pieces to 1x1 size, explore different materials for bioprinting, soil + mycelium.
