7. BioFabricating Materials¶
Research¶
Biofabrication is the process of using biological systems—such as bacteria, fungi, and algae—to create sustainable materials. It replaces synthetic plastics with biodegradable biomaterials like bacterial cellulose, mycelium, and algae-based polymers.
Key Points:
- Uses living organisms to grow materials.
- Focuses on sustainability and biodegradability.
- Applied in fashion, medicine, and product design.
- Examples include: bacterial cellulose leather, mycelium-based textiles, and algae bioplastics.
Biofabrication merges biology and design, offering an eco-friendly alternative to traditional materials. 🌱🚀
Artists, Projects, and Platforms¶
I explored the works of Suzanne Lee and Aniela Hoitink, both pioneers in biomaterials, and signed up for the Materiom platform, which provides open-source biomaterial recipes. Additionally, I researched various sources related to compostable bioplastics, bio-yarns, and innovative biomaterial applications:
-
Colorful Compostable Bioplastics – Discusses innovative bioplastics made from natural, biodegradable ingredients.
-
Algae String Experiment – Demonstrates how sodium alginate and calcium chloride can be used to create bio-based strings.
-
Recycrom Fabric Dyeing – Explores how fabric waste can be turned into sustainable dyes.
-
Growing Future Materials – Showcases biofabrication techniques for sustainable material production.
-
Kelp Leather – Investigates how kelp-based materials can be turned into functional leather alternatives.
-
BioYarn from Algiknit – Details how algae-based fibers can be spun into sustainable textiles.
-
Biodegradable Furniture – Discusses biodegradable furniture design from bio-based materials.
get inspired!
-
Comparison research - Aslı Aydın Aksan - TextileLab Amsterdam
-
Comparison research - Barbara Rakovska FabLab Bcn
-
Jute research - Julija Karas - FabLab Bcn
-
Polarisation in bioplastics Viviane Labelle - EchoFab
-
Local waste streams - Marieke van Eyndhoven
References & Inspiration¶
-
Biomaterials from Biowaste – Transforming food waste into functional biomaterials.
-
Kyon Design – Showcases biomaterial applications in design.
-
Biotech Sustainable Materials – Scientific research on sustainable biomaterials.
-
Seaweed and Fish Skin Biomaterials – Investigates seaweed-based fabrics and leather alternatives.
Tools & Materials¶
- Knife
- Cutting Board
- Blender
- Jar
- Spatula
- Basin
- Strainer
- Coffee filters
- Stove
- Cooking pots
- Mesuring cups
Process and workflow Crafted material¶
For this experiment, I focused on creating biodegradable materials using natural ingredients and fabrication techniques. I explored how different ingredient ratios and processing methods affect texture, flexibility, and durability. The crafted materials I developed include gelatin-based bioplastic, cornstarch bioplastic, banana peel leather (which was unsuccessful), and algae string.
Banana peel leather (failed)¶
* 3–4 banana peels (thoroughly cleaned)
* 1 cup water
* 1–2 tbsp cornstarch (for thickness)
* 1 tbsp glycerin
* Food coloring
* measure - measure - measure
* add, combine, mix..
* simmer, cook, boil, freeze, burn, crush...
* mix, smash, stack, overlay..
* cast, pour, press..
* dry, aereate, dehydrate..
* remove, peel, unmold..
* finishing touches
Gelatine based bioplastic¶
* 20g gelatin (2 tbsp)
* 60ml water (1/4 cup)
* 500ml water (2 cups)
* 5g pectin (1 tsp)
* 5ml glycerin (1 tsp)
* Food coloring
* Hydrated gelatin in 60ml water for 10 min.
* Boiled 500ml water, turned off the heat, and slowly mixed in pectin.
* Added glycerin and mixed thoroughly.
* Added hydrated gelatin and simmered while stirring.
* oured 160ml of the mixture onto a textured tray (30x20cm).
* Dried at room temperature for 3–4 days before demolding.
Results: A smooth, flexible, and plastic-like material with an unexpected texture.
Cornstarch Bioplastic¶
* 100ml water (7 tbsp)
* 15ml cornstarch (1 tbsp)
* 10ml vinegar (2 tsp)
* 10ml glycerin (2 tsp)
* Mixed all ingredients in a bowl.
* Heated mixture using a double boiler until thickened
* Poured into petri dishes and left to dry for 3–4 days.
Algae string¶
Prepare this recipe by collecting the ingredients necessary, to be found in the list below:
Gel mixture * 1 tbsp sodium alginate * 1/2 cup water * 1 tbsp glycerin * 1 tsp food color
Calcium Bath * 2 cups water * 2 tsp calcium chloride
* Blended sodium alginate, water, glycerin, and color into a smooth gel and let rest for a bit
* Prepared calcium bath by dissolving calcium chloride in water.
* Transferred gel into a syringe and dispensed into the calcium bath.
* Let sit for a few minutes before removing the strings.
Process and workflow Grown material¶
In this section, I explored biomaterial growth using living organisms. I experimented with soya waste microbial cellulose, observing how fermentation conditions, nutrient sources, and growth time influenced the final material. This approach demonstrates how biofabrication can create sustainable, naturally grown alternatives to conventional textiles and polymers
Grown Materials
Growing Acetobacter Xylinum¶
To begin the process, I created my own Acetobacter xylinum culture using pineapple peels and juice, sugar, and distilled water. The mixture was left to ferment for two weeks in a sterilized container. Over time, a thick, white jelly-like film formed on the surface—this was the bacterial cellulose, which served as the starter for my next experiments.
* Pineapple
* Water
* Sugar
* Peel a ripe and fresh pineapple
* Wash the pineapple with clean water, and slice it into small cubes
* Put the pineapple chunks into a blender, and mash it until it smooth
* Strain the pureed pineapple, until the water all comes out
* Clean a jar with rubbing alcohol 70%
* Mix the pineapple pulp with water and sugar in a sterile jar, with comparison:
Pineapple pulp: 6 spoon
Water : 3 spoon
Sugar: 1 spoon
* Cover the jar lid with clean fabric or paper
* Incubated for 3-4 days in 30°C controled invironment

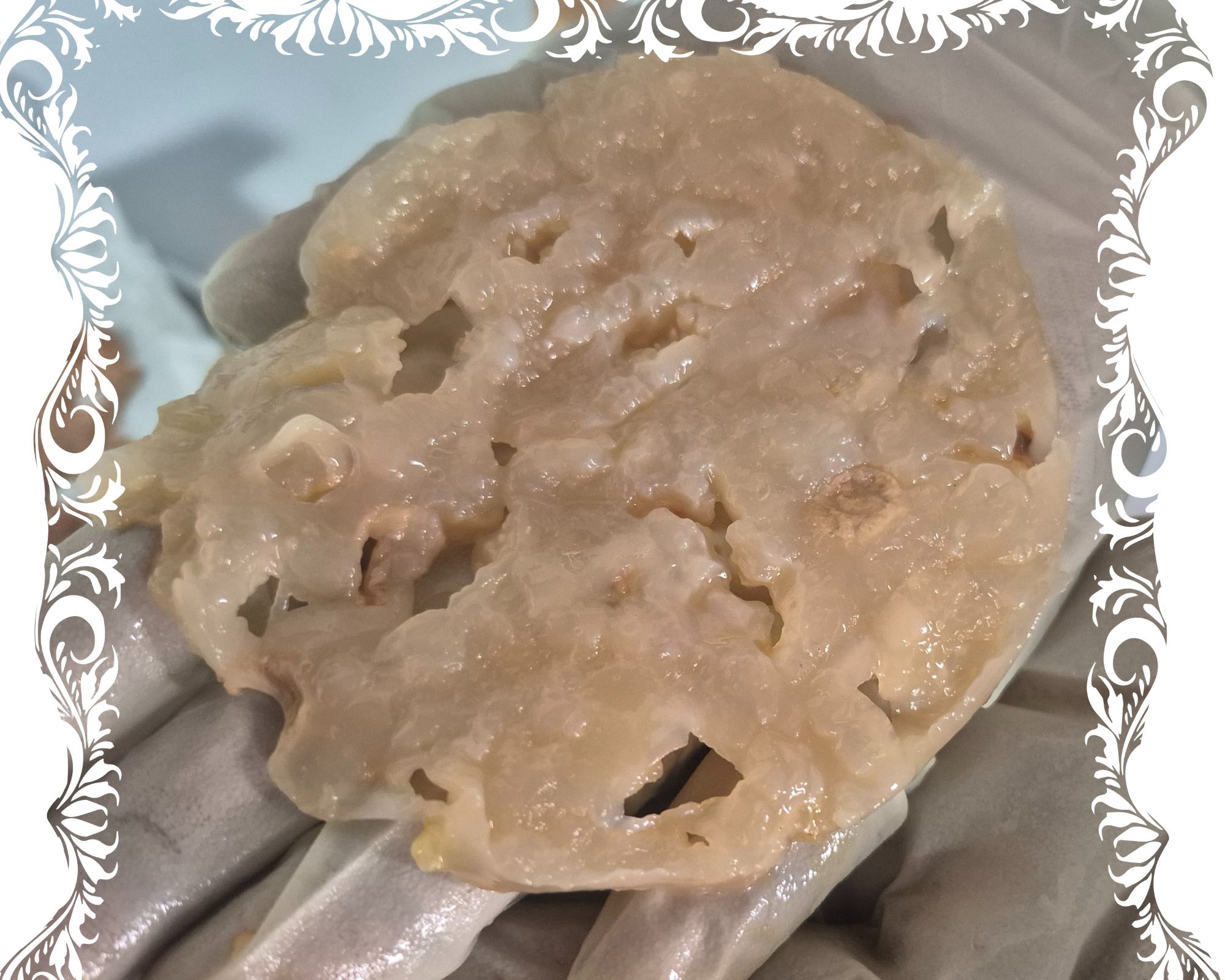

* You will see a white sheet on top of the mixture. Et voila! you have acetobacter xylinum colony
Soya Waste Cellulose¶
I made fresh soya milk and added vinegar to it to curdle the mixture, similar to the tofu-making process. After separating the solids, I filtered and kept only the liquid. I then combined this with the Acetobacter starter liquid, water from boiled peas (for added nutrients), sugar, and red gel food color. This mixture was left to incubate for two weeks. Although a cellulose sheet formed successfully, the red color disappeared completely during fermentation.
* Tofu production liquid waste
* Acetobacter Xylinum starter
* Water from Boiled green peas as fertilizer
* Vinegar
* Sugar
* Heated tofu waste water to 30-40°C and removed impurities
* Added fertilizer (or bean sprout water) and sugar.
* Boiled with vinegar, then poured into trays.
* Added Acetobacter Xylinum culture and covered.
* Incubated for 6-7 days until a cellulose sheet formed

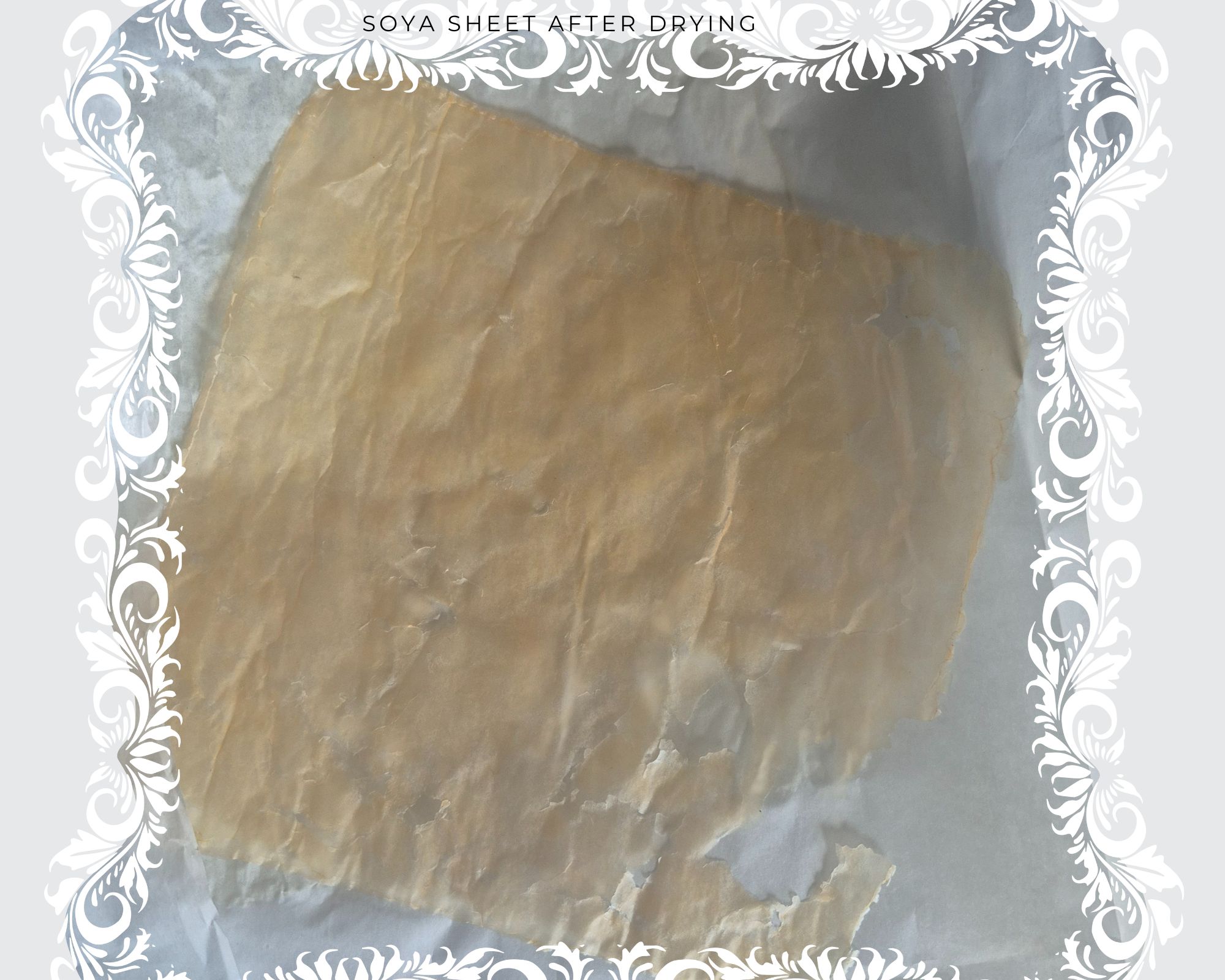

* Dried into a leather-like material.

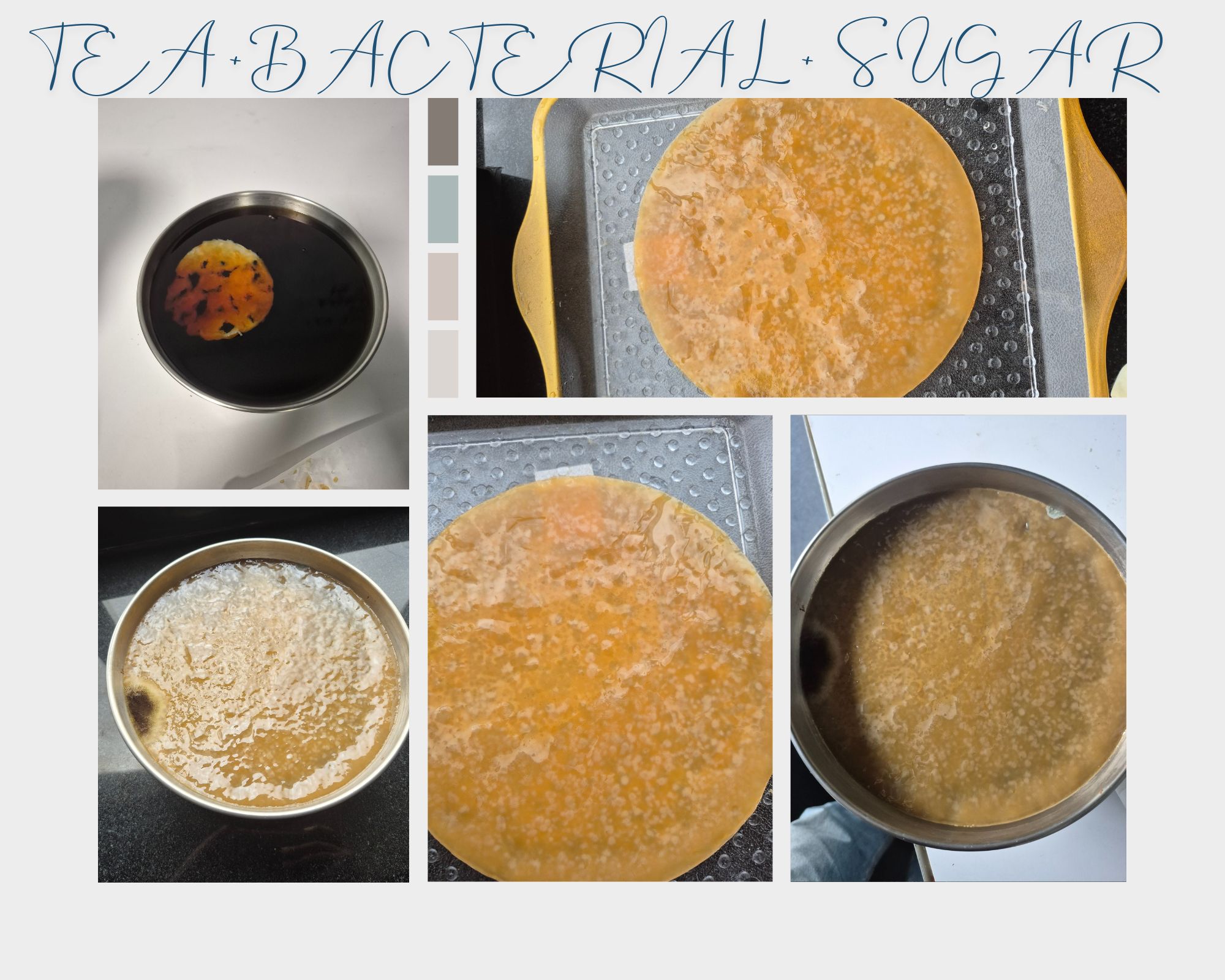

Tea & Bacteria Sheet Culture¶
For comparison, I prepared a second medium using sweetened tea and added the grown Acetobacter sheet directly into it. This also incubated for two weeks. Like the soya version, it produced a thick cellulose film, showing that both sugar-rich liquids and protein-based waste can support bacterial cellulose growth.
* Tea
* Water
* Acetobacter Xylinum starter
* Sugar
* Heated water with tea
* Added a lot of sugar
* Added Acetobacter Xylinum culture and covered.
* Incubated for 14 days until a cellulose sheet formed
* Dried into a leather-like material.
Documenting and comparing experiments¶
TEST SERIE BIO-PLASTIC¶
Material Pic | Material Name | Type | Texture & Properties | Polymer | Plastifier | Filler | Emulsifier | Status |
---|---|---|---|---|---|---|---|---|
![]() |
Banana Peel Leather | Crafted | Brittle, uneven drying | Banana Peel | Glycerin | Cornstarch | Water | Failed |
![]() |
Gelatin Bioplastic Sheet | Crafted | Flexible, translucent, smooth | Gelatin | Glycerin | Pectin | Water | Success |
![]() |
Cornstarch-Based Bioplastic | Crafted | Stretchy, jelly-like | Cornstarch | Glycerin | Vinegar | Water | Success |
![]() |
Algae Bio-Strings | Crafted | Soft when wet, stiff when dry | Sodium Alginate | Glycerin | None | Water | Success |
![]() |
Acetobacter xylinum | Grown | LJelly-like bacterial film | Pineapple peel + juice | None | sugar | None | success |
![]() |
Soya Waste Microbial Cellulose | Grown | Thin, Fragile | Soya Liquid + Bacteria | None | Pea water, Sugar | None | Success |
![]() |
Tea-Based Cellulose | Grown | Leathery, strong | Tea + Bacteria | None | Sugar | None | Success |
Final Thoughts
-
The banana peel leather failed due to inconsistent drying.
-
Gelatin bioplastic was a success and unexpectedly durable.
-
Cornstarch bioplastic created a soft, flexible material.
-
Algae strings behaved as expected, drying into stiff fibers.
-
Acetobacter xylinum successfully formed a bacterial cellulose starter layer.
-

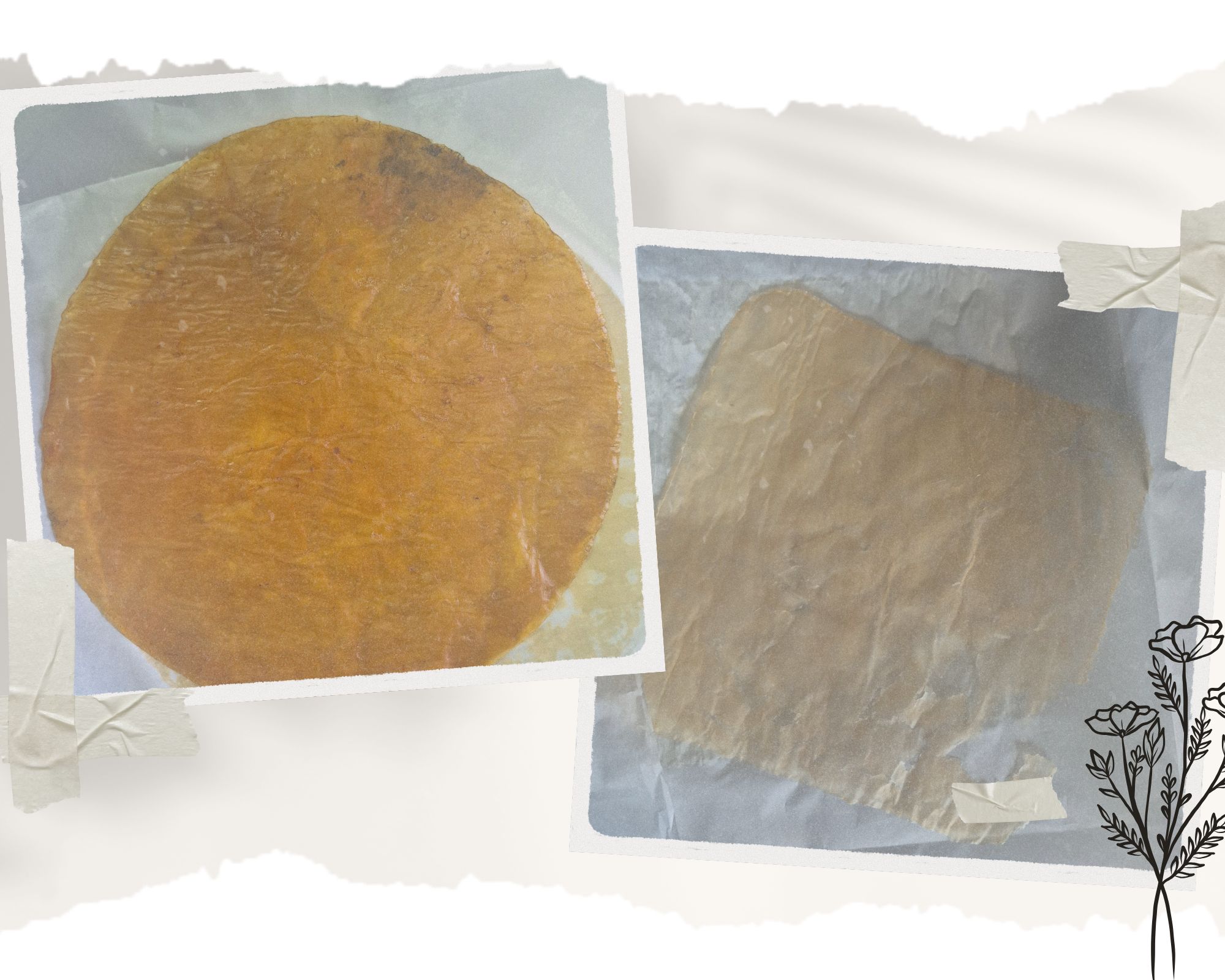

Soya waste microbial cellulose successfully grew in a thin film although the red color was lost during fermentation.
-

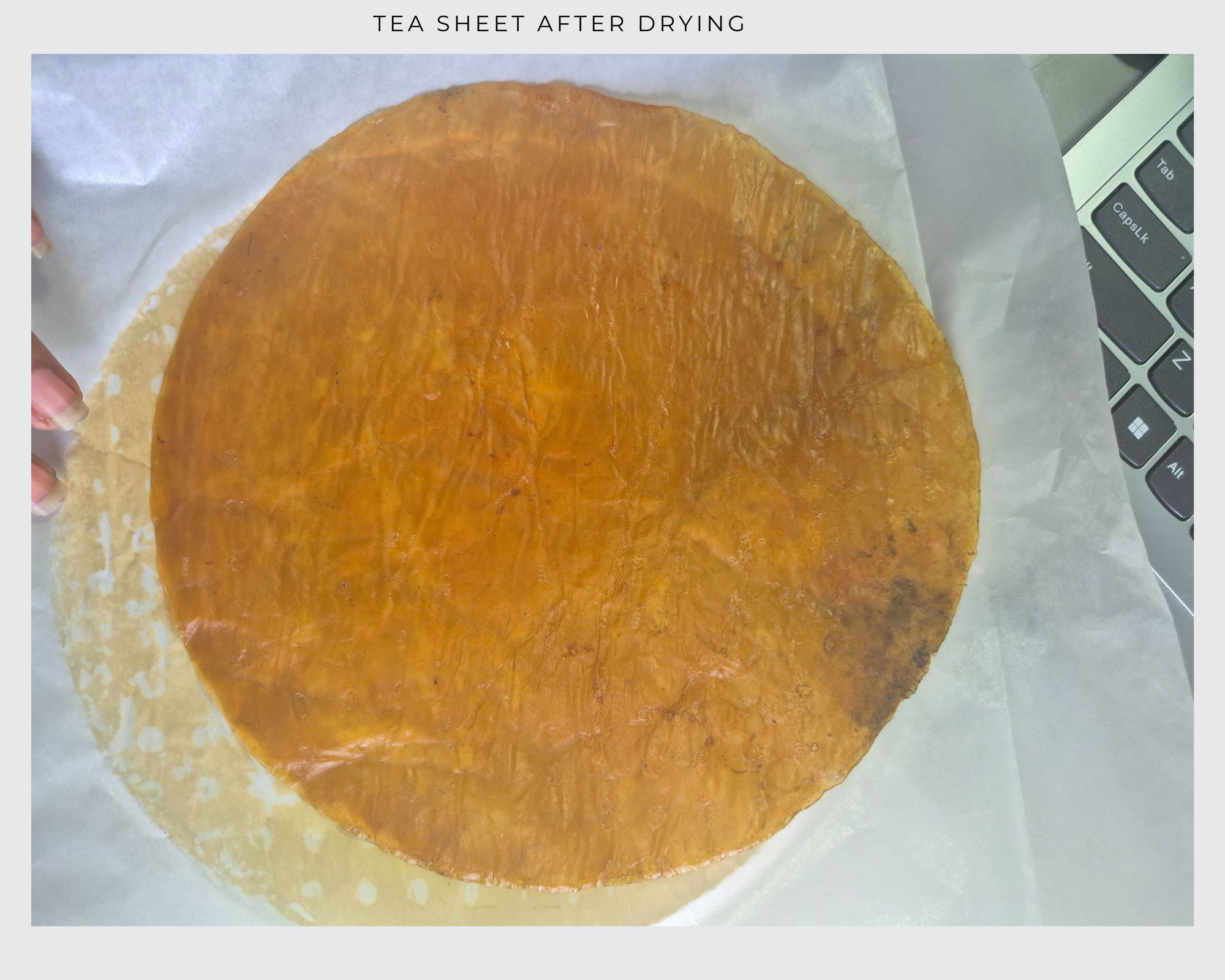

Tea based cellulose grew a thick jelly like film and dried in a thin leather like film
