Process¶

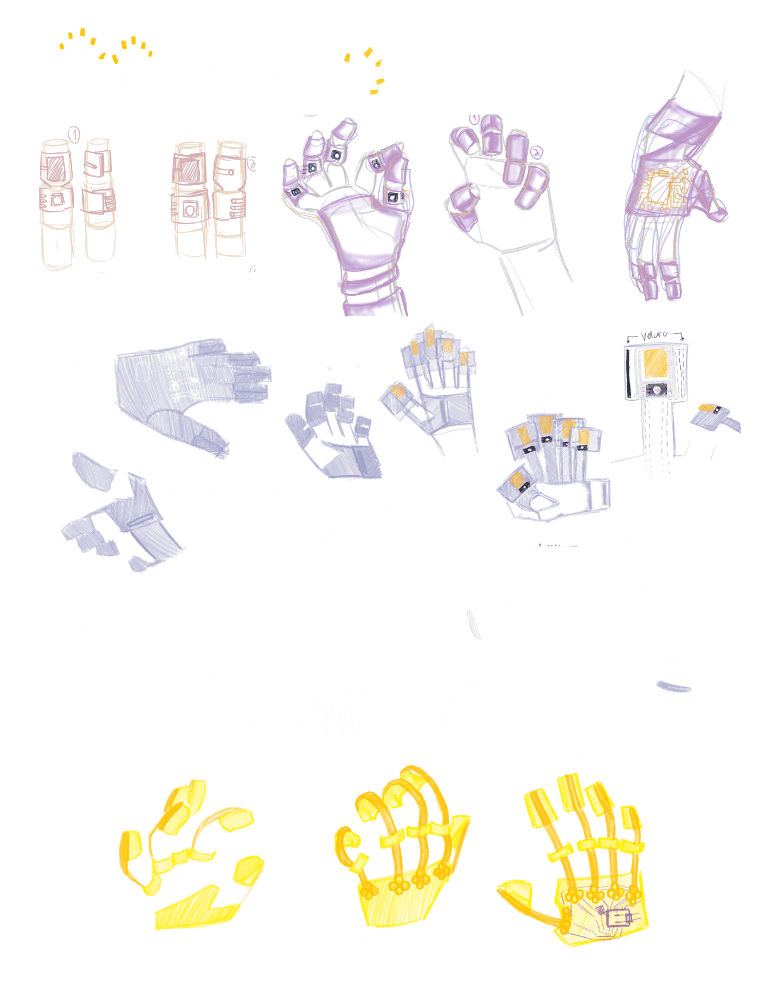

Ideation & sketches¶

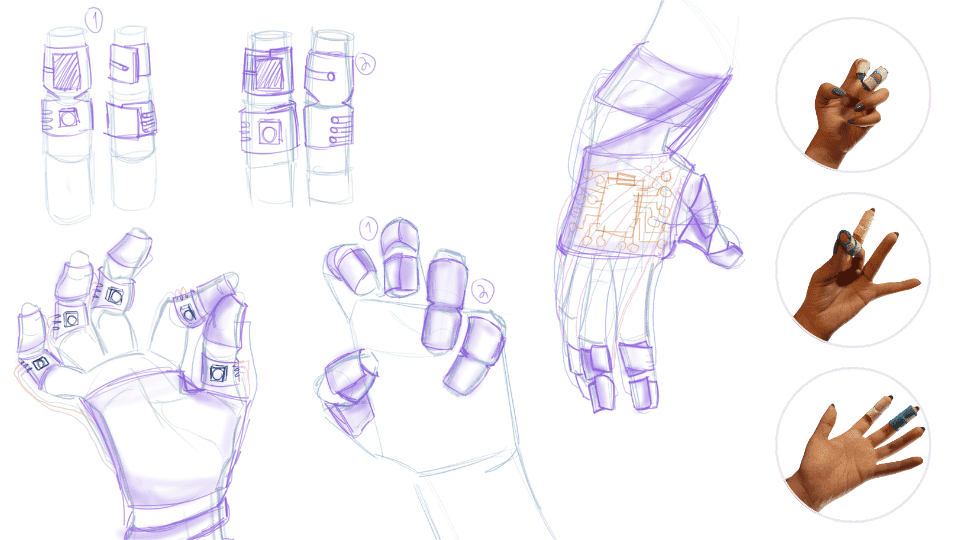

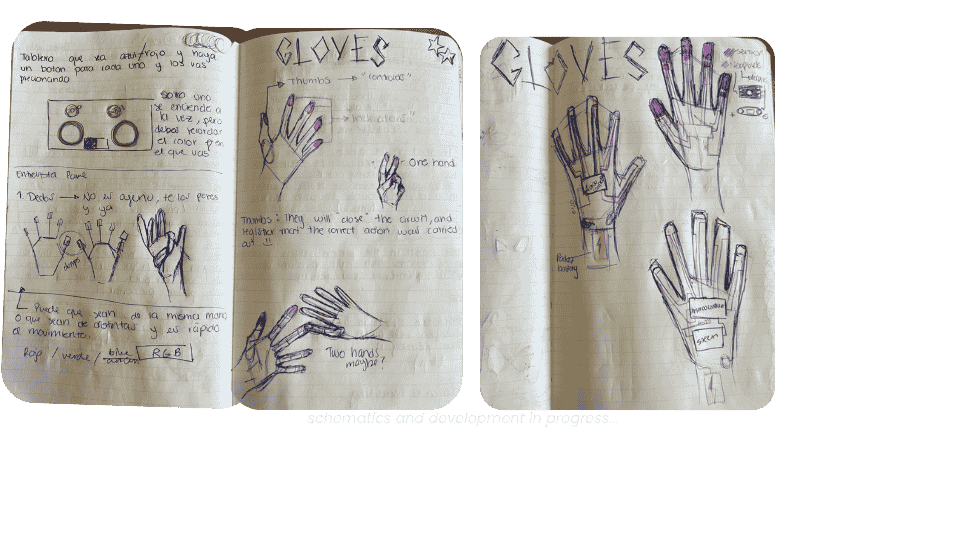

To begin the ideation phase, first I started by determining what type of interaction the project would have, then ideas based on the analogue research, some where more like a mat, like a board game, framing the shape of the hands, using just buttons and after some more ideas, I explored the concept of developing this game in a wearable, specifically gloves.

I ended up liking the most the glove idea since it would be a real challenge for me, and after some interviews with some friends they also liked that idea, among with my local and global instructors.

When I re-presented my idea in the global class, the comments where to first focus first on the dinamic of the wearable (game), recommending to not create a new one, but take one as a reference and adaptt it.

I also got some comments in the focus groups from Nuria and Erika, recommending me to explore the idea of the wearable as a way of interacting with some games via serial port instead of just the wearable. After thinking it through, I decided to find a way of making the gloves work on their own, without the need to connect to a computer. This recommendation helped me to start thinking on the outputs that I would need to integrate like a little screen to visualize the score, or a button to reset, etc.

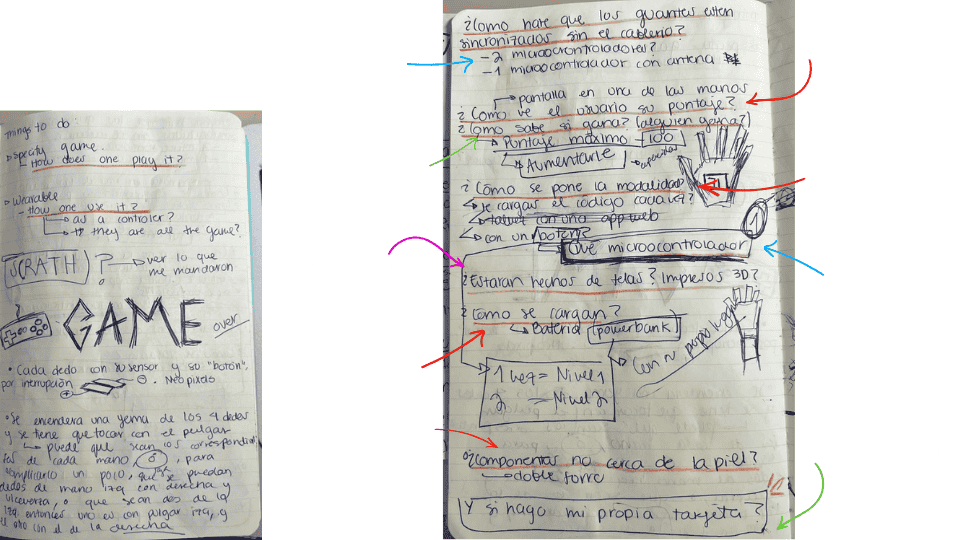

To further define the project, I began to ask myself questions about aspects that I still had to resolve, and answering them from what I knew, as possibilities to explore:

Doing this exercise really helped me to see all the things I was missing, and sometimes even one question led to other three, or answering one automatically answered another.

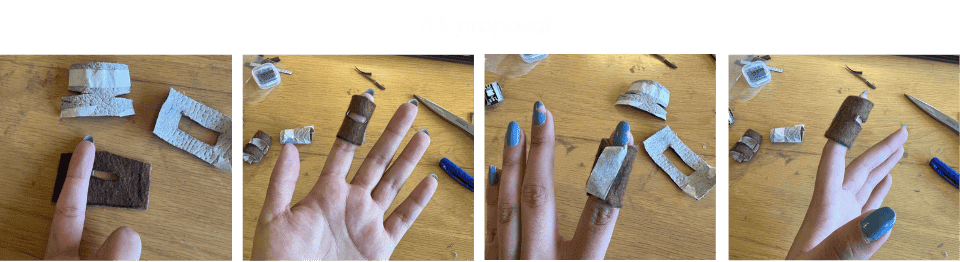

I was exploring the idea of making this wearable by parts, so that it can “build up” on the hands; and so here's some ideas of how to have the sensors and neo pixels in the fingers.

First tests electronics¶

To have a clear idea the basics of the electronic required for this project, I began to make a few test using first only two sensors, then adding one more no see how easily or hard it was to add another pin of interaction.

I used ChatGPT to develop the codes. The initial prompt was:

This is going to be C++ code, and it will work as follows: I'm going to use three Neopixels to indicate which color goes with which. I'll only use three colors, the RGB ones. I'll have one GND wire and two others on different pins. Each of these three wires has one of the Neopixels I mentioned. So, if one of the Neopixels on the pin wires is blue, and the GND wire is also blue, I should connect those wires. If I connect the green wire with the blue GND wire, it's incorrect and the code shouldn't work. The colors should be random. Neopixel controlling GND on D10, Neopixel wire 1 on A0

To make it work I had to keep upgrading Chat on what to change, since each time there was something not working the way I expected:

The color of the neo pixels weren't following the idea of the game, there wasn’t a relation that the code could understand in other to determine whether winning or losing, the match between neo pixels was wrong, it didn’t register when the correct match was carried on, the time of action was to short, etc.

Non working test¶

The key part to make ChatGPT understand how the interaction of matching was going to be carried on was by referencing the code I used to develop a glove that could be play as a piano, that code was also developed with ChatGPT, and it worked by INPUT_PULLUP and INPUT_LOW.

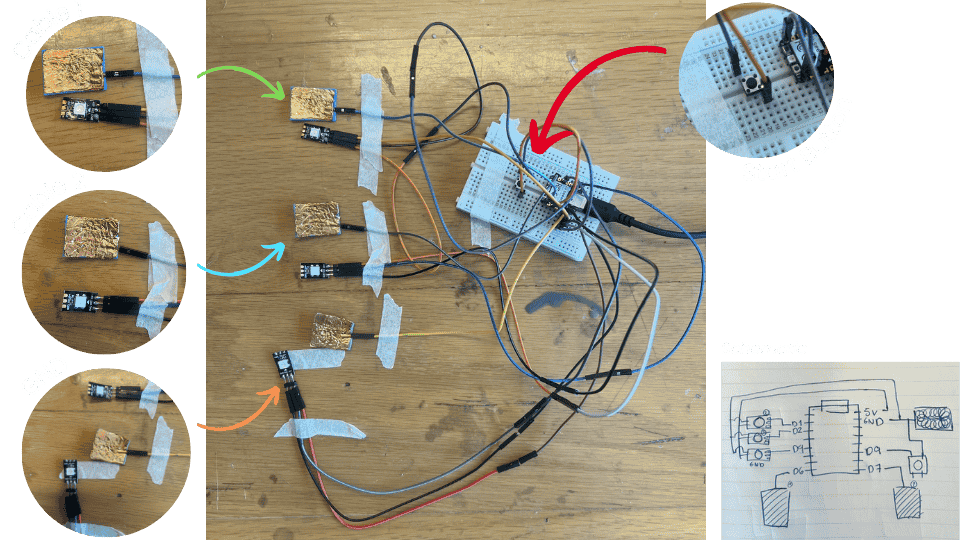

3 neo pixels (working)¶

Code¶

#include <Adafruit_NeoPixel.h>

// ----- PINES -----
#define PIN_GND  D4
#define PIN_C1   D1
#define PIN_C2   D2

#define CABLE1_IN D6
#define CABLE2_IN D7

#define PIN_RESTART D9

#define NUMPIXELS 1

// ----- NEOPIXELS -----
Adafruit_NeoPixel ledGND(NUMPIXELS, PIN_GND, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel ledC1 (NUMPIXELS, PIN_C1, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel ledC2 (NUMPIXELS, PIN_C2, NEO_GRB + NEO_KHZ800);

// ----- VARIABLES -----
int colorGND;
int colorC1;
int colorC2;

int colores[3][3] = {
  {255, 0, 0},     // rojo
  {0, 255, 0},     // verde
  {0, 0, 255}      // azul
};

bool bloqueo = false;

unsigned long tiempoInicio = 0;
bool esperandoMatch = false;
int cableEnJuego = 0;

// -----------------------------
void setup() {
  Serial.begin(115200);

  ledGND.begin();
  ledC1.begin();
  ledC2.begin();

  pinMode(CABLE1_IN, INPUT_PULLUP);
  pinMode(CABLE2_IN, INPUT_PULLUP);
  pinMode(PIN_RESTART, INPUT_PULLUP);

  randomSeed(analogRead(26));

  generarColores();
}

// -----------------------------
void loop() {

  if (bloqueo) {
    if (digitalRead(PIN_RESTART) == LOW) {
      bloqueo = false;
      generarColores();
      delay(250);
    }
    return;
  }

  if (esperandoMatch && (millis() - tiempoInicio > 2000)) {
    fallo();
    return;
  }

  int c1 = digitalRead(CABLE1_IN);
  int c2 = digitalRead(CABLE2_IN);

  // PRIMER TOQUE
  if (!esperandoMatch) {

    if (c1 == LOW) {
      esperandoMatch = true;
      tiempoInicio = millis();
      cableEnJuego = 1;
      Serial.println("Cable 1 tocado");
    }

    if (c2 == LOW) {
      esperandoMatch = true;
      tiempoInicio = millis();
      cableEnJuego = 2;
      Serial.println("Cable 2 tocado");
    }
  }

  // MATCH SOLO CONTRA GND
  if (esperandoMatch) {

    if (cableEnJuego == 1 && c1 == LOW) {
      if (colorC1 == colorGND) exito();
      else fallo();
    }

    if (cableEnJuego == 2 && c2 == LOW) {
      if (colorC2 == colorGND) exito();
      else fallo();
    }
  }
}

// -----------------------------
void exito() {
  Serial.println("✔ ¡Correcto!");
  esperandoMatch = false;
  delay(200);
  generarColores();
}

// -----------------------------
void generarColores() {

  esperandoMatch = false;

  colorGND = random(0, 3);

  int correcto = random(1, 3); // 1 o 2

  if (correcto == 1) {
    colorC1 = colorGND;

    do { colorC2 = random(0, 3); }
    while (colorC2 == colorGND);
  }
  else {
    colorC2 = colorGND;

    do { colorC1 = random(0, 3); }
    while (colorC1 == colorGND);
  }

  // Nunca iguales
  while (colorC1 == colorC2) {
    colorC2 = (colorC2 + 1) % 3;
  }

  // Mostrar colores
  ledGND.setPixelColor(0, colores[colorGND][0], colores[colorGND][1], colores[colorGND][2]);
  ledC1.setPixelColor(0, colores[colorC1][0], colores[colorC1][1], colores[colorC1][2]);
  ledC2.setPixelColor(0, colores[colorC2][0], colores[colorC2][1], colores[colorC2][2]);

  ledGND.show();
  ledC1.show();
  ledC2.show();

  Serial.println("---- NUEVOS COLORES ----");
  Serial.print("GND = "); Serial.println(colorGND);
  Serial.print("C1  = "); Serial.println(colorC1);
  Serial.print("C2  = "); Serial.println(colorC2);
  Serial.println("------------------------");
}

// -----------------------------
void fallo() {
  Serial.println("❌ ERROR");

  ledGND.setPixelColor(0, 255, 255, 255);
  ledC1.setPixelColor(0, 255, 255, 255);
  ledC2.setPixelColor(0, 255, 255, 255);

  ledGND.show();
  ledC1.show();
  ledC2.show();

  delay(700);

  ledGND.clear(); ledGND.show();
  ledC1.clear(); ledC1.show();
  ledC2.clear(); ledC2.show();

  bloqueo = true;
  esperandoMatch = false;

  Serial.println("Reiniciar con botón");
}

4 neo pixels (working)¶

Code¶

#include <Adafruit_NeoPixel.h>

// ----- PINES -----
#define PIN_GND     D4   // NeoPixel GND
#define PIN_C1      D1   // NeoPixel C1
#define PIN_C2      D2   // NeoPixel C2
#define PIN_C3      D3   // NeoPixel C3

#define CABLE1_IN   D6   // Entrada digital cable 1
#define CABLE2_IN   D7   // Entrada digital cable 2
#define CABLE3_IN   D8   // Entrada digital cable 3

#define PIN_RESTART D9   // Botón reinicio

#define NUMPIXELS 1

// ----- NEOPIXELS -----
Adafruit_NeoPixel ledGND(NUMPIXELS, PIN_GND, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel ledC1(NUMPIXELS, PIN_C1, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel ledC2(NUMPIXELS, PIN_C2, NEO_GRB + NEO_KHZ800);
Adafruit_NeoPixel ledC3(NUMPIXELS, PIN_C3, NEO_GRB + NEO_KHZ800);

// ----- VARIABLES -----
int colorGND;
int colorC1;
int colorC2;
int colorC3;

int colores[3][3] = {
  {255, 0, 0},   // rojo
  {0, 255, 0},   // verde
  {0, 0, 255}    // azul
};

bool bloqueo = false;
unsigned long tiempoInicio = 0;
bool esperandoMatch = false;
int cableEnJuego = 0;

// -----------------------------
void setup() {
  Serial.begin(115200);

  ledGND.begin();
  ledC1.begin();
  ledC2.begin();
  ledC3.begin();

  pinMode(CABLE1_IN, INPUT_PULLUP);
  pinMode(CABLE2_IN, INPUT_PULLUP);
  pinMode(CABLE3_IN, INPUT_PULLUP);
  pinMode(PIN_RESTART, INPUT_PULLUP);

  randomSeed(analogRead(26));

  generarColores();
}

// -----------------------------
void loop() {

  if (bloqueo) {
    if (digitalRead(PIN_RESTART) == LOW) {
      bloqueo = false;
      generarColores();
      delay(250);
    }
    return;
  }

  int c1 = digitalRead(CABLE1_IN);
  int c2 = digitalRead(CABLE2_IN);
  int c3 = digitalRead(CABLE3_IN);

  // Verificar tiempo límite de 5 segundos
  if (esperandoMatch && (millis() - tiempoInicio > 5000)) {
    Serial.println("⏳ Tiempo agotado: no se hizo match");
    fallo();
    return;
  }

  // Primer toque de cualquier cable
  if (!esperandoMatch) {
    if (c1 == LOW) { esperandoMatch = true; tiempoInicio = millis(); cableEnJuego = 1; Serial.println("Cable 1 tocado — 5 segundos para coincidir."); }
    if (c2 == LOW) { esperandoMatch = true; tiempoInicio = millis(); cableEnJuego = 2; Serial.println("Cable 2 tocado — 5 segundos para coincidir."); }
    if (c3 == LOW) { esperandoMatch = true; tiempoInicio = millis(); cableEnJuego = 3; Serial.println("Cable 3 tocado — 5 segundos para coincidir."); }
  }

  // Detectar si el cable coincide con GND
  if (esperandoMatch) {
    if (cableEnJuego == 1 && c1 == LOW) { if (colorC1 == colorGND) exito(); else fallo(); }
    if (cableEnJuego == 2 && c2 == LOW) { if (colorC2 == colorGND) exito(); else fallo(); }
    if (cableEnJuego == 3 && c3 == LOW) { if (colorC3 == colorGND) exito(); else fallo(); }
  }
}

// -----------------------------
void exito() {
  Serial.println("✔ ¡Correcto!");
  esperandoMatch = false;
  delay(200);
  generarColores();
}

// -----------------------------
// Generar colores: 1 cable coincide, los otros dos iguales y distintos de GND
// -----------------------------
void generarColores() {
  esperandoMatch = false;

  colorGND = random(0, 3);  // Color GND

  // Elegir cuál cable será correcto
  int cableCorrecto = random(1,4); // 1,2 o 3

  // Color incorrecto (distinto a GND)
  int colorIncorrecto;
  do { colorIncorrecto = random(0,3); } while(colorIncorrecto == colorGND);

  // Inicialmente todos los cables incorrectos
  colorC1 = colorC2 = colorC3 = colorIncorrecto;

  // Reemplazar el cable correcto
  if (cableCorrecto == 1) colorC1 = colorGND;
  if (cableCorrecto == 2) colorC2 = colorGND;
  if (cableCorrecto == 3) colorC3 = colorGND;

  // Mostrar en neopixels
  ledGND.setPixelColor(0, colores[colorGND][0], colores[colorGND][1], colores[colorGND][2]);
  ledC1.setPixelColor(0, colores[colorC1][0], colores[colorC1][1], colores[colorC1][2]);
  ledC2.setPixelColor(0, colores[colorC2][0], colores[colorC2][1], colores[colorC2][2]);
  ledC3.setPixelColor(0, colores[colorC3][0], colores[colorC3][1], colores[colorC3][2]);

  ledGND.show();
  ledC1.show();
  ledC2.show();
  ledC3.show();

  Serial.println("---- Nuevos Colores ----");
  Serial.print("GND = "); Serial.println(colorGND);
  Serial.print("C1  = "); Serial.println(colorC1);
  Serial.print("C2  = "); Serial.println(colorC2);
  Serial.print("C3  = "); Serial.println(colorC3);
  Serial.println("------------------------");
}

// -----------------------------
void fallo() {
  Serial.println("❌ ERROR");

  ledGND.setPixelColor(0, 255, 255, 255);
  ledC1.setPixelColor(0, 255, 255, 255);
  ledC2.setPixelColor(0, 255, 255, 255);
  ledC3.setPixelColor(0, 255, 255, 255);

  ledGND.show();
  ledC1.show();
  ledC2.show();
  ledC3.show();

  delay(700);

  ledGND.clear(); ledGND.show();
  ledC1.clear(); ledC1.show();
  ledC2.clear(); ledC2.show();
  ledC3.clear(); ledC3.show();

  bloqueo = true;
  esperandoMatch = false;

  Serial.println("Juego detenido — presiona reinicio.");
}

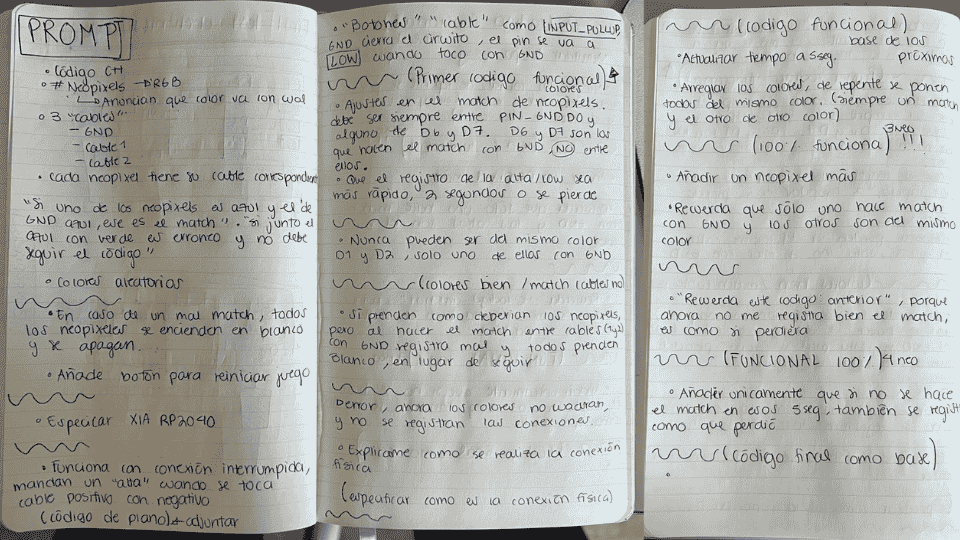

Here my notes of the adjustments I made in the prompt to get to the working codes:

Follow sequence¶

Design & Fabrication¶

once you start designing and fabricating your first tests, you can link both at the bottom of the page with footnotes

"This step of the process was important because i learnt to draft my own pattern digitally. The first tests of this can be seen here on the right, find half- or test-fabrication files here¹"

Prototypes¶

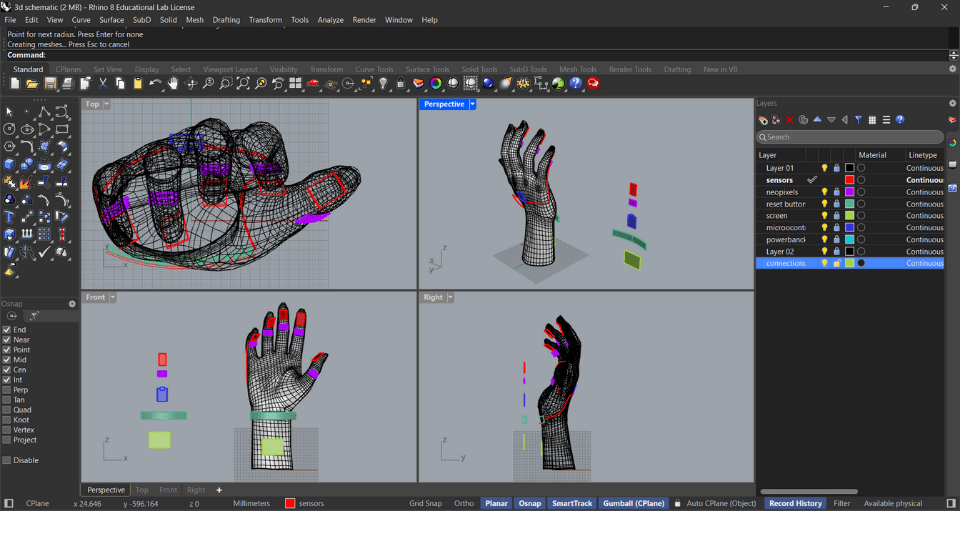

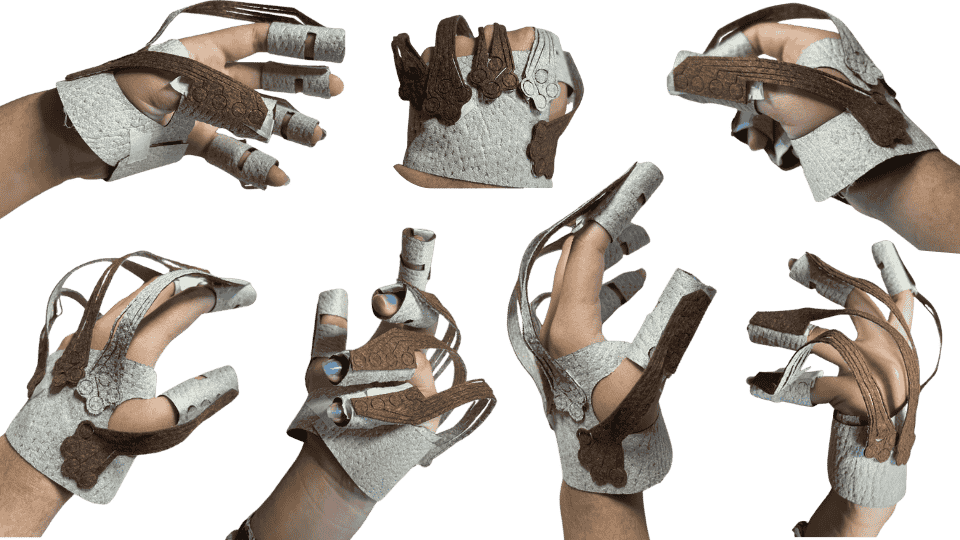

To visualize the components and their distribution on the hand more realistically, I downloaded a hand model from Sketchfab and quickly created the components in Rhinoceros using their real 1:1 dimensions. This allowed me to move them around, see how they would sit, and then sketch with an accurate reference.

Why am I going for this kind of design instead of a glove?

Well, at first just for aesthetics, I wanted it to look different, but also considering that if people want to use it in a warm climate it can be a little uncomfortable playing it for a while, or maybe two or more want to pass it, this way the hand wouldn´t sweet as much as it if was a close glove.

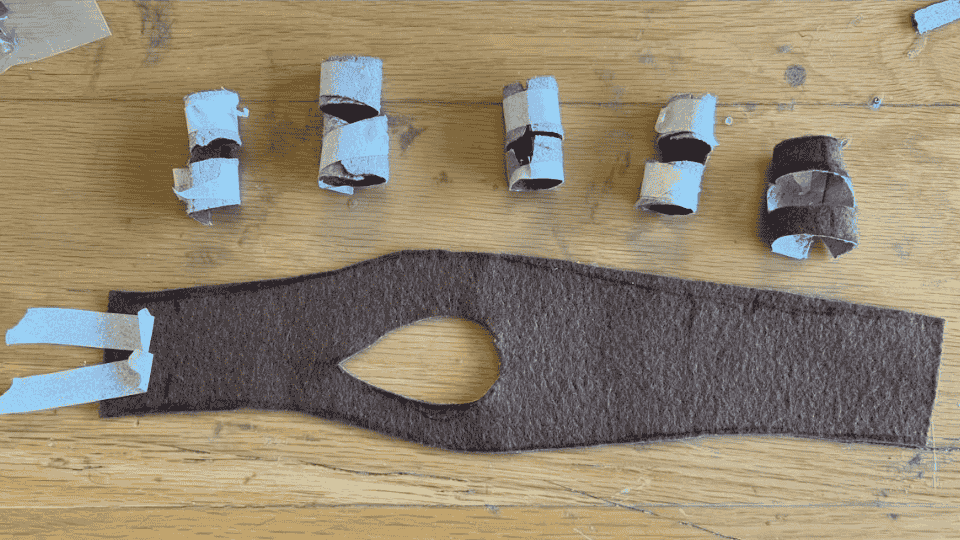

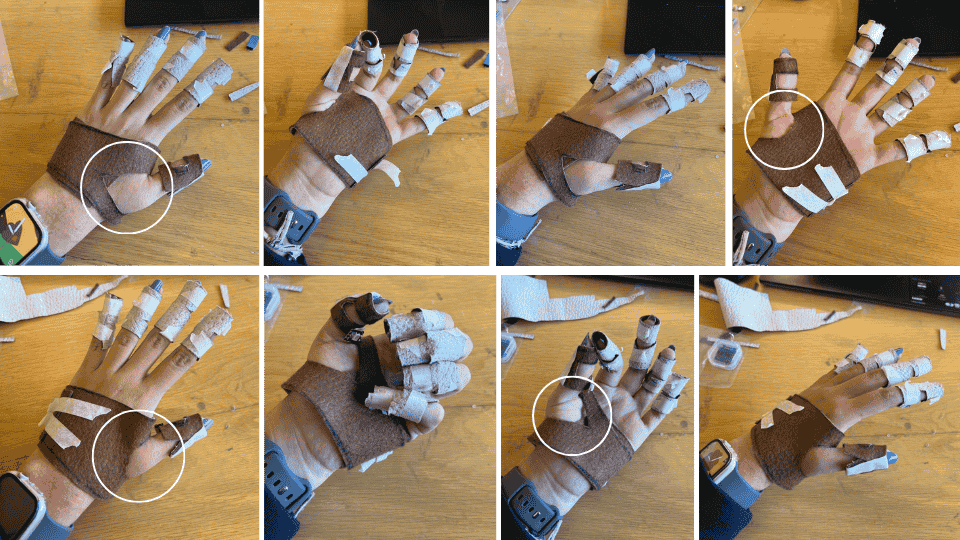

01¶

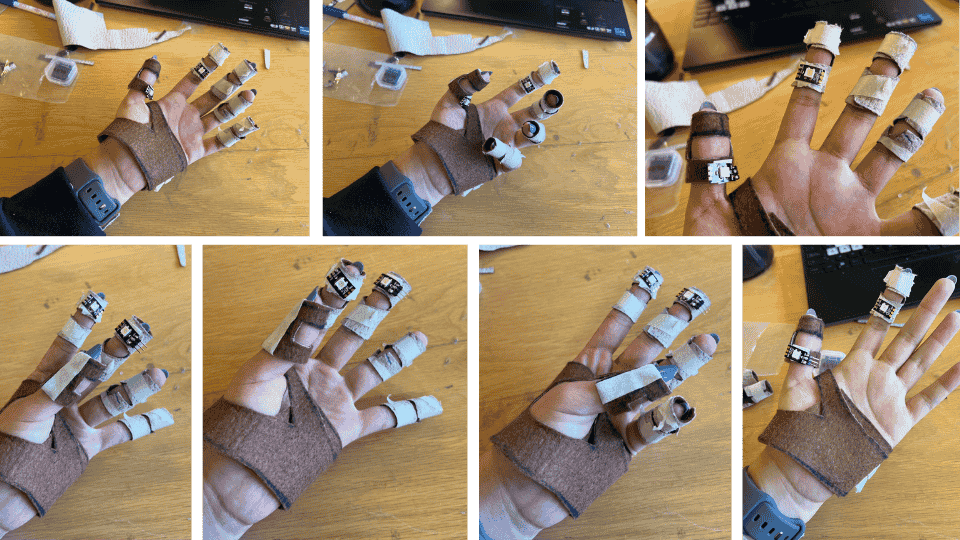

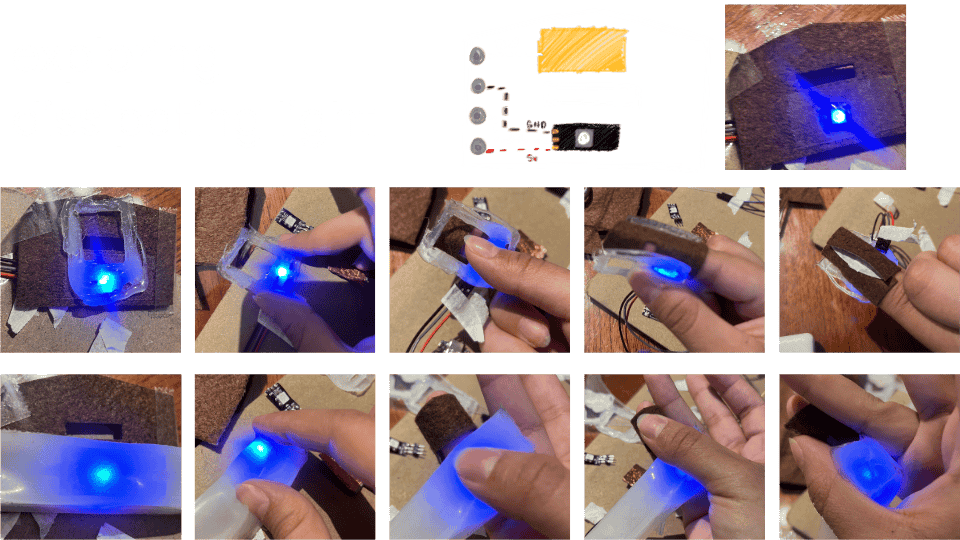

One thing that I hadn’t consider before is that if I placed the neo pixels in the middle part of the fingers, when making the connection it would automatically cover it, making it to lost sight for a second on the neo pixels, and since this a game of repeating steps o matching them, I think it wouldn't be the best; so I then try them on the top part.

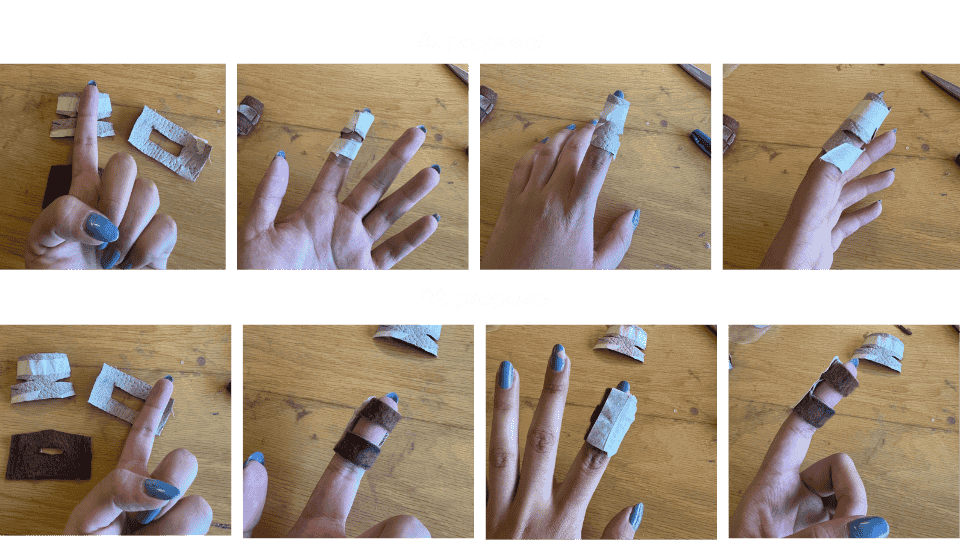

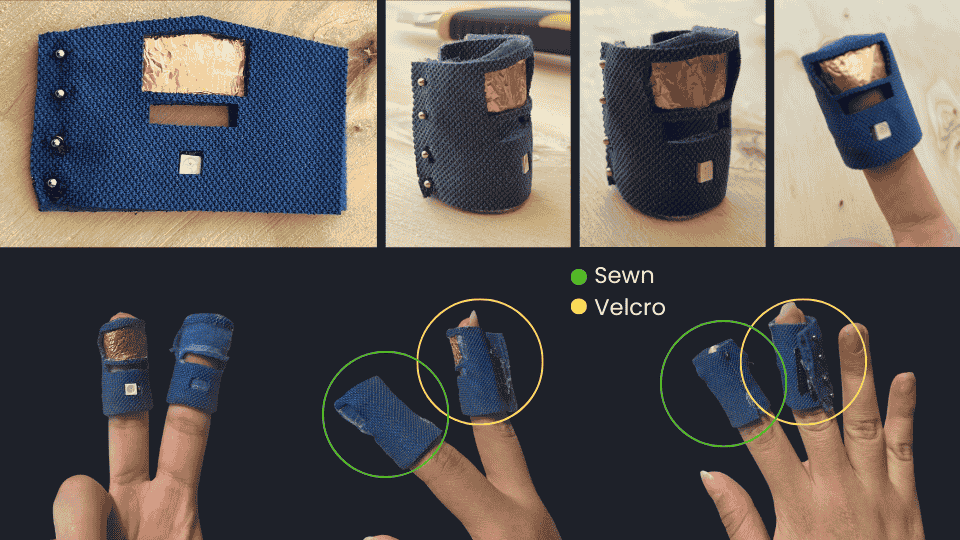

Then I moved to making different designs for the fingers, to check comfort, functionality and how practical they would be considering I'm planning them to be at least little bit adjustable using Velcro, and that way it will be a little bit easier to put them on.

02¶

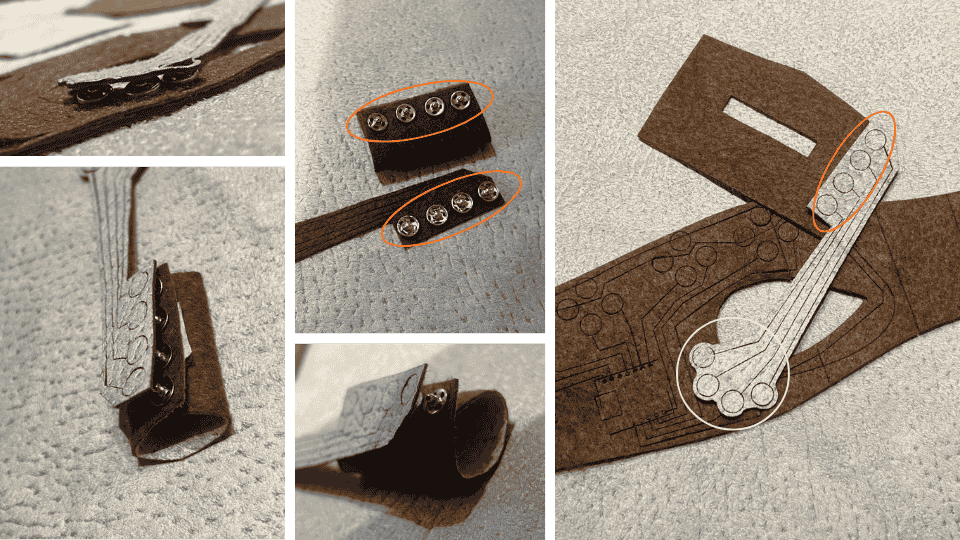

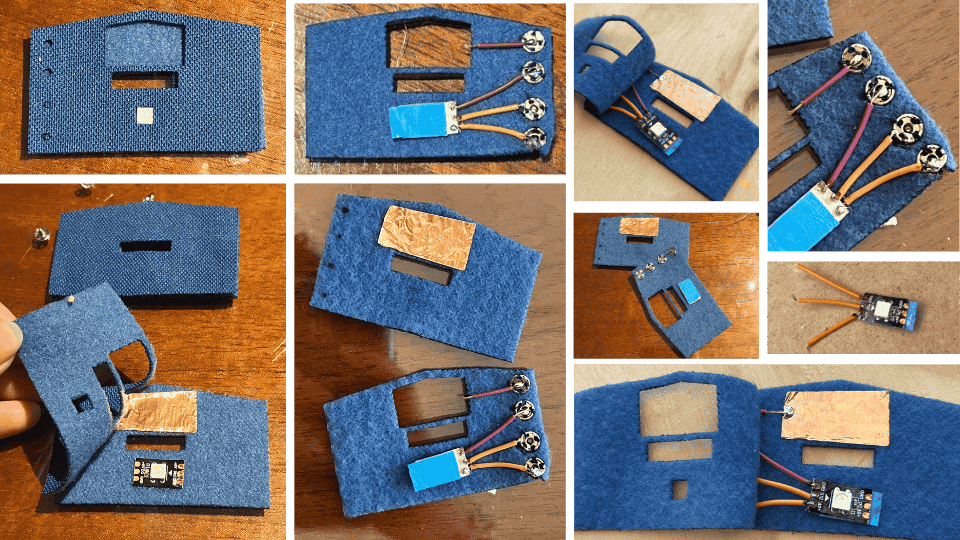

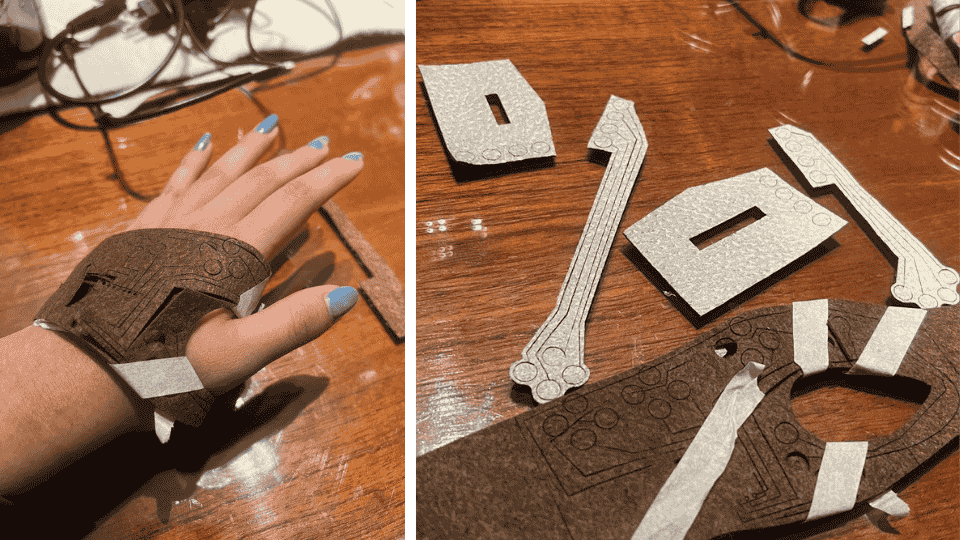

Then I proceed to make a second prototype taking into account what I observed from my first tests, in terms of comfort and ease of use. In this prototype I focused on the connections, verifying that they could function properly with the dimensions I had planned.

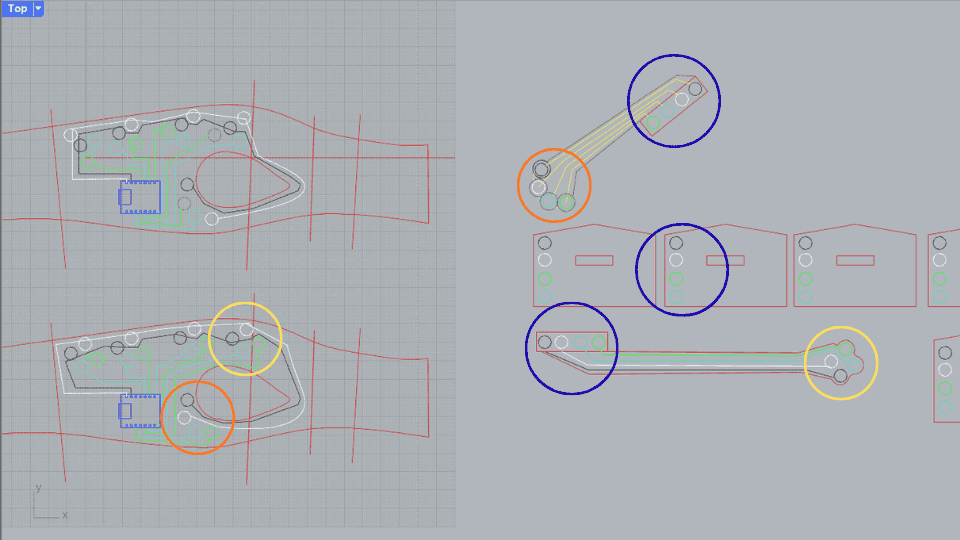

I needed a design that could allow me to make the electrical connections as simple as I could, and so I was thinking on using some metallic safety pins so make those connections.

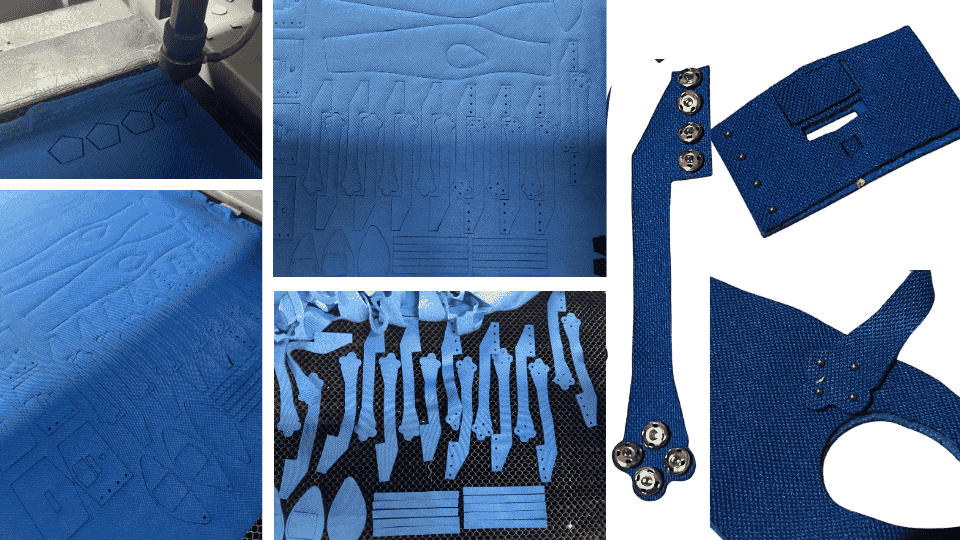

At first, I just traced all the metallic pins I would use and started to figure out the paths of all the connections, having in mind that 5v and GND would have to go through all the hand harness. The safety pins have a diameter of 7mm, so I also trace them to have a more accurate dimension idea. To make them easier for the person that use it, I re-arrange the distribution of the safety pins, so that it would be the same on any finger (except the thumb), and so whichever piece they connect would work.

The metal pins will also function as a means of assembly.

Clarification¶

Based on a presentation we gave in our lab, my instructors asked me if this project was a toy or not.

The answer is no. I started this project not as a toy, but as a device that could aid in the cognitive process. By using play as a medium, having fun and encountering challenges, one will become interested and want to continue using it.

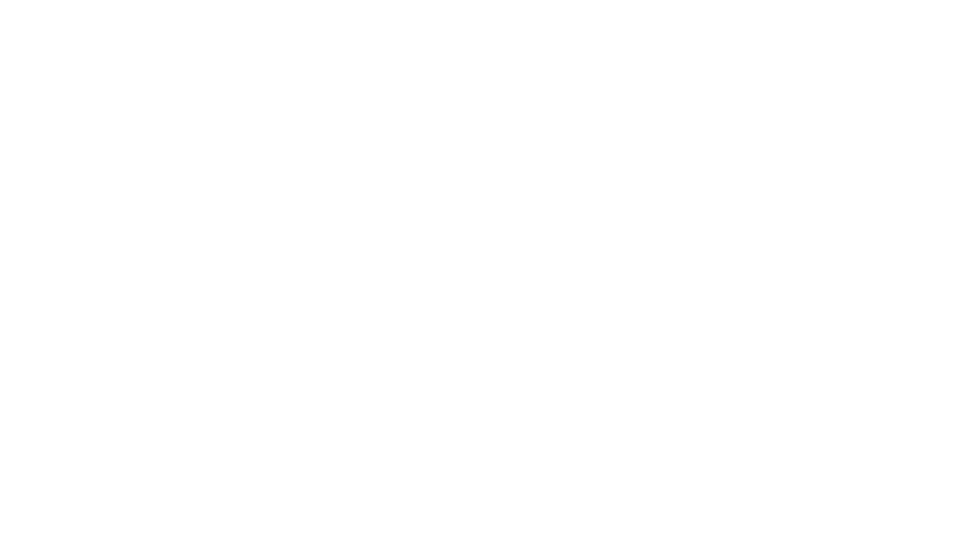

Therefore, I created a small table comparing the strengths of a toy and a play device and where they relate. Unlike a toy, the purpose is not simply to have fun, but to improve fine motor skills, coordination, and reaction time, using fun as the means.

Based on this, I slightly reformulated the programming (dynamics) that the gloves will have to precisely accomplish this. So I'm considering different types of dynamics:

Midterm presentation ¶

Mentoring notes¶

Anastasia:I think this game is also super good for the young ones that want to learn how to make music because when playing piano or drums you need to separate the hands movement! i encourage you to try also finding other materials and fabrics. in response to malou's if you can play from the other side as well, i think if you cover the neopixel with a translucent fabric that goes a tiny bit to the sides , it will diffuse the light. but i think its great as you have it for the time being =,= very nice to think of 3 levels of difficulty!

Cecilia:"I like the project! What came to mind is that the distinction between toys and device is difficult. Toys are playful educational materials, a good toy is meant to stimulate sensorial or mental agility and connections. When they dont..they are ""bad toys"". A mental agility device should be playful, otherwise it becomes very boring and not engaging, bringing you back to a toy. I think the overlap is a ""good toy""! Just to say, dont exclude one another - stay in that magic space you are creating!

Claudia:Jump to the PCB only if really required. It will take so much time to design the circuit and milling it that at this stage will slow you down. Prioritize the interaction and define better the target users. The project is interesting. Working with the xiao through wifi is not easy. My student last year she had to switch to bluetooth because the wifi was not stable and reliable. You can check her documentation here so you dont have to build everything from stratch. she also made kind of gloves for a dobule interaction. so you need 2 xiaos esp to establish the communication

Louisee:Thank you for your presentation. This is a really interesting idea that you have. I was glad to hear that you reached out to a psychologist. Fine motor skills are actually getting weaker in the younger generation partly due to the Covid crisis. Could you specify what is your target audience?

Carolina:The glove play looks fun, and the sketches in the video are well-explained. The first prototypes are just the shells for tests and improvement, so looks fine. The second prototypes after Rhinho are already very fancy! For the final presentation, maybe you can create a short guidance of the gaming. Good work!

Diana:Also worth reaching out to occupational therapists or in Mexico also known as special education professionals

__ __

Half-fabrication files¶
