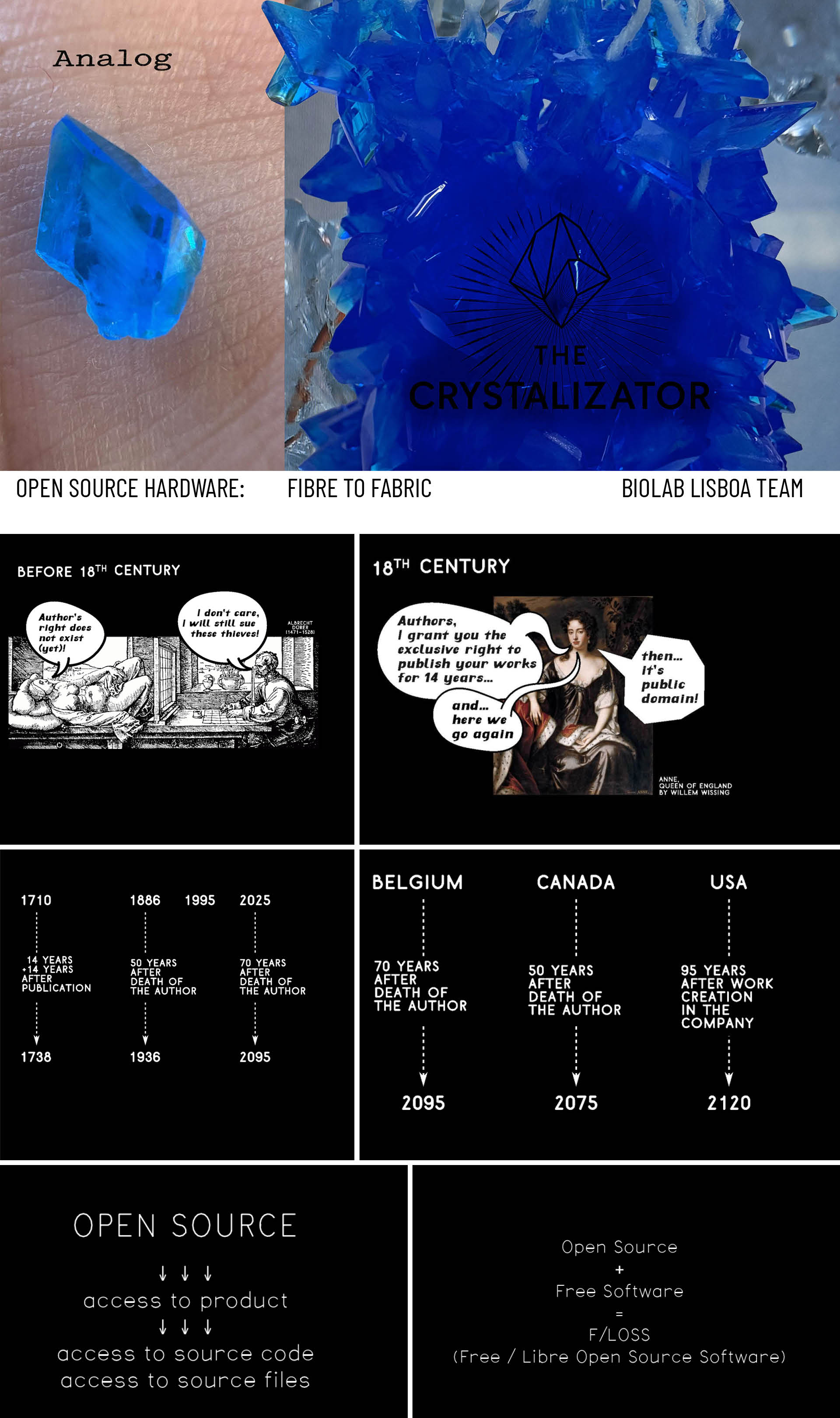

11. Open Source Hardware - From Fibers to Fabric¶
Research¶
Ndeyfatou Ceesay/ Open Source Hardware/ Fabricademy/ Biolab Lisboa
Inspiration¶
Ndeyfatou Ceesay/ Inspiration/ Open Source Hardware/ Fabricademy/ Biolab Lisboa

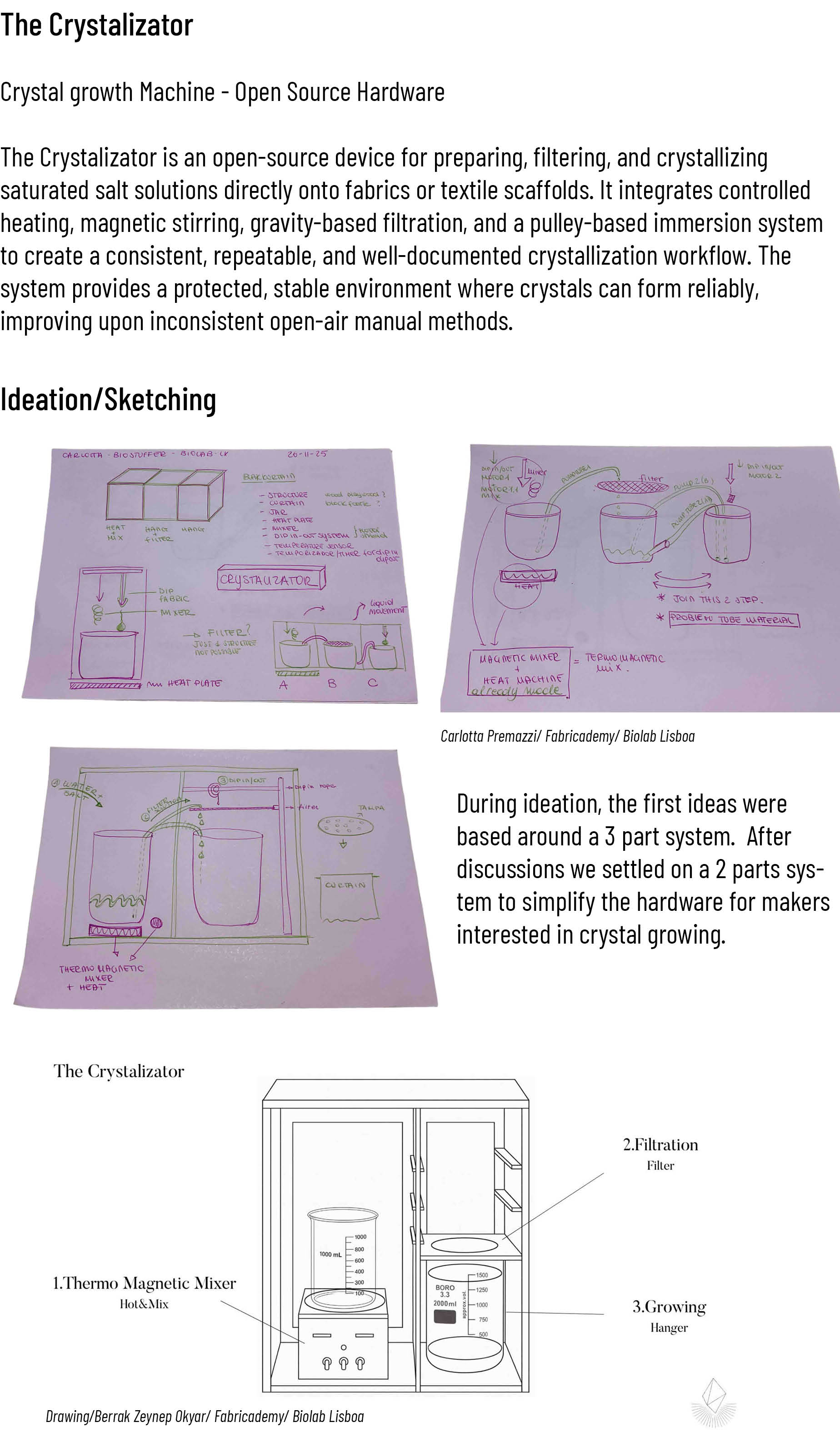

The Crystalizator¶
Ndeyfatou Ceesay/ The Crystalizator/ Open Source Hardware/ Fabricademy/ Biolab Lisboa
Bill Of Materials¶
Ndeyfatou Ceesay/ Bill of Materials/ Open Source Hardware/ Fabricademy/ Biolab Lisboa

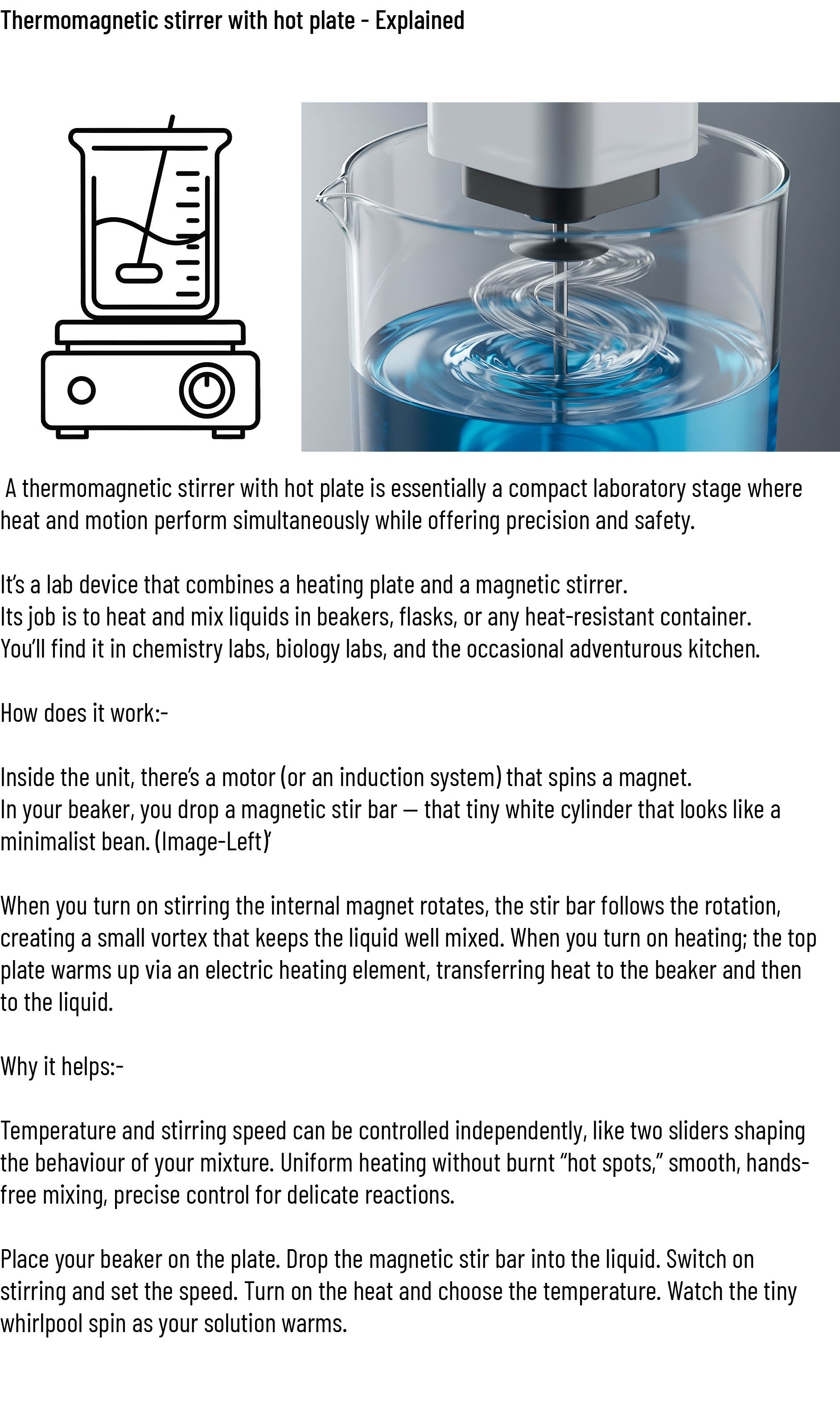

Thermomagnetic Stirrer¶
Ndeyfatou Ceesay/ Thermomagnetic Stirrer/ Open Source Hardware/ Fabricademy/ Biolab Lisboa

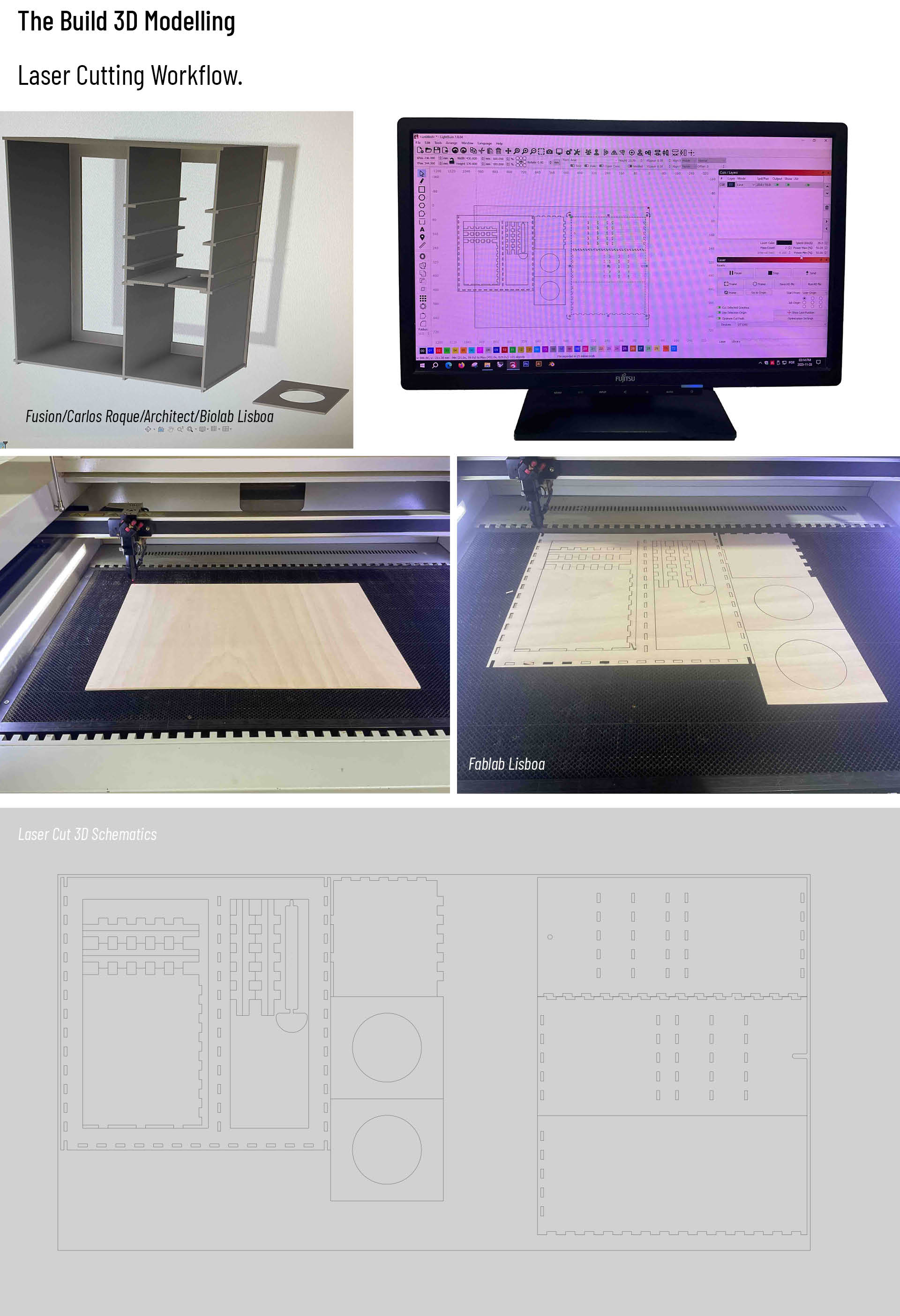

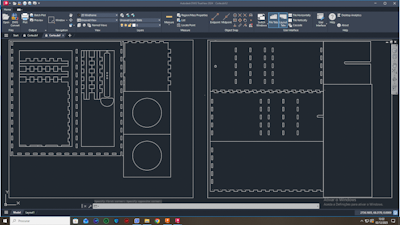

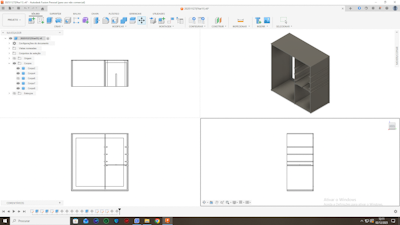

3D Modelling¶
Ndeyfatou Ceesay/ 3D Modelling/ Open Source Hardware/ Fabricademy/ Biolab Lisboa

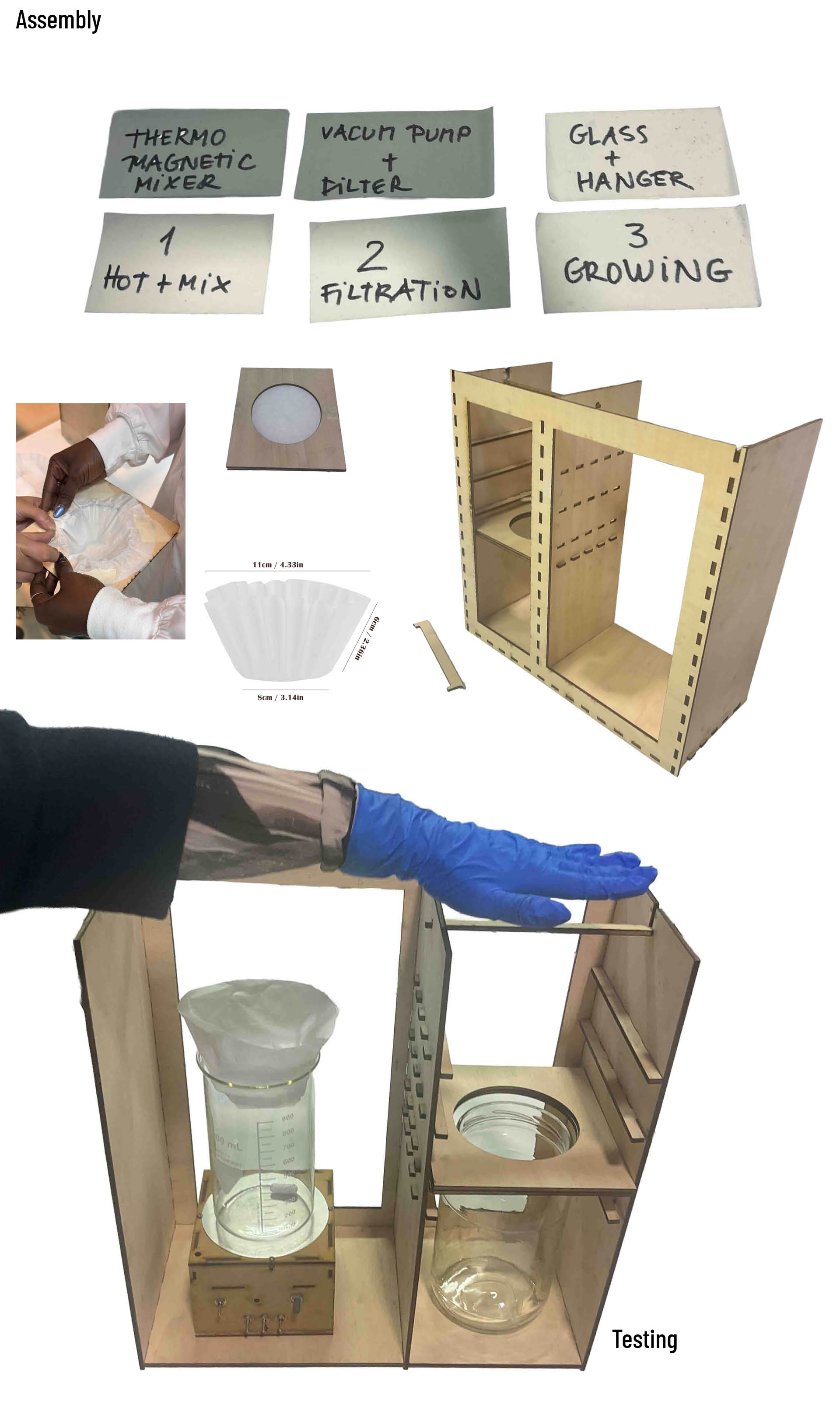

Assembly¶
Ndeyfatou Ceesay/ Assembly/ Open Source Hardware/ Fabricademy/ Biolab Lisboa

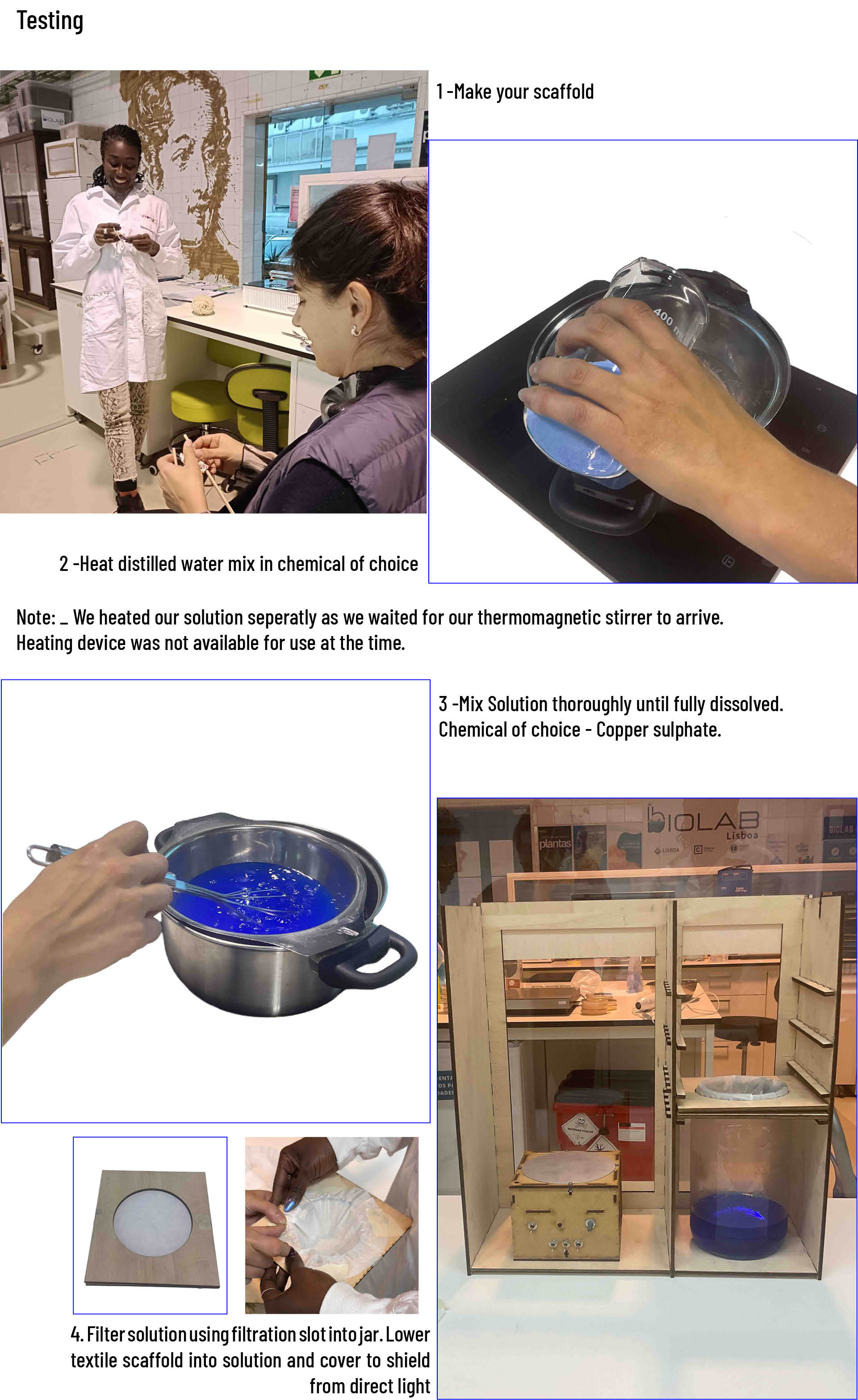

Testing¶
Ndeyfatou Ceesay/ Testing/ Open Source Hardware/ Fabricademy/ Biolab Lisboa
Demo Testing¶
BoM (Bill of Materials)¶
| COMPONENT | IMAGES | LINK | PRICE |
|---|---|---|---|
| Structure | |||
| Laser-cut Plywood Board (70×100 cm) |  |
leroymerlin.pt | €26,12 |
| Components | |||
| 1× Thermomagnetic stirrer with hot plate | AliExpress | €59,95 | |
| 1× Magnetic stir-bar (5×40 mm, chosen via Stir-Bar Data Sheet) | Amazon.es | €14,22 | |
| 1× pack Magnetic stir-bars (5 different sizes) |  |
Amazon.es | €13,10 |
| 2× Borosilicate glass jars (1 L) |  |
Amazon.es | €73,96 |
| 1× pack 200 filtration units | Amazon.es | €19,04 | |
| 3× Dark fabric curtains (light-shielding system) |  |
feiradostecidos.com | €13 |
| Chemicals | |||
| Salt / Copper sulfate | Amazon.es | €17,25 | |
| Salt / Alum | Amazon.es | €17,18 | |
| Distilled water | Amazon.es | €28,45 | |
| 96% alcohol |  |
Amazon.es | €5,97 |
| Textile / Scaffold | |||
| Cotton, linen, biotextile, or other scaffolds |  |
||
| TOTAL | €288,24 |
Results¶
Ndeyfatou Ceesay/ Carlotta Premazzi/ Berrak Zeynep Okyar/ Carolina Delgado/ Carlos Roque/ Guilherme Martins/ Results/ Open Source Hardware/ Fabricademy/ Biolab Lisboa
Sketchfab Ndeyfatou Ceesay/ Carlotta Premazzi/ Berrak Zeynep Okyar/ Carolina Delgado/ Carlos Roque/ Guilherme Martins/ Results/ Open Source Hardware/ Fabricademy/ Biolab Lisboa
3D Model¶
Fabricademy/ Open Source Hardware/Version: V1.0 (Analog Prototype)
Author(s): Carlotta Premazzi, Ndeyfatou Ceesay, Berrak Zeynep Okyar, Carolina Delgado, Carlos Roque, Guilherme Martins
Lab: Biolab, Lisbon
License: CC BY-SA
